Maxwell 10 - Jabra PRO Headset

Introduction

How to connect your Jabra PRO with the Maxwell 10

Gigaset tested this with the following devices.

Maxwell 10 Software 1.2.0 and 1.2.18, Hardware version 28 or higher is needed.

Jabra PRO 9470

Jabra Link 14201-10 DHSG cable.

Gigaset cannot support you with questions about the Jabra Headset, for this contact your supplier.

Connection

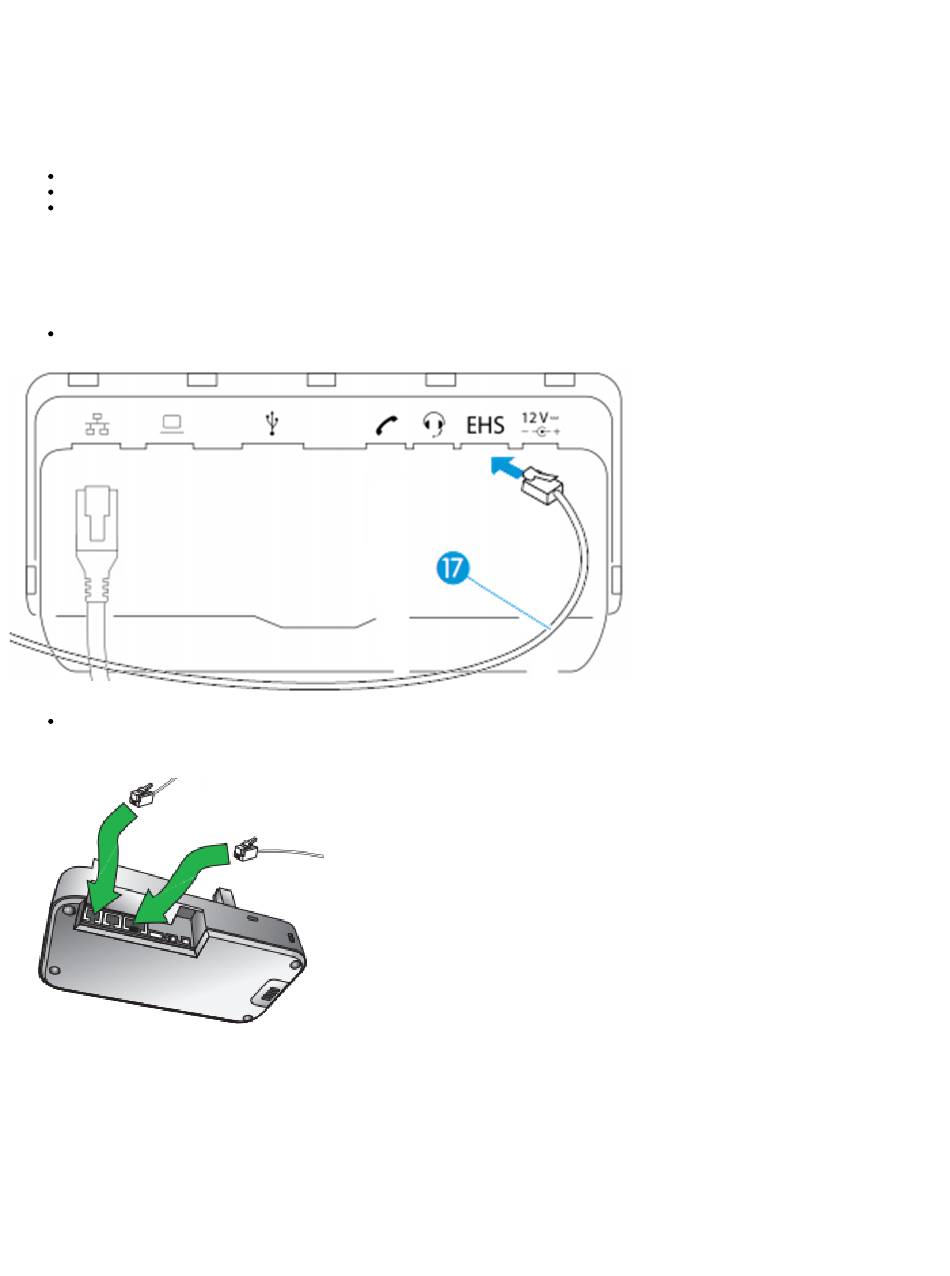

Plug the 1-sided end of the DHSG cable into the Maxwell

Insert the RJ9 plug of the DHSG cable into the headset base socket marked with a "phone" symbol

and the RJ45 plug into the socket marked with "AUX".

Then follow the instructions of the Jabra PRO base SmartSetup Wizard.

EHS

socket.

Page 1 Maxwell 10 Software 1.2.0 and 1.2.18, Hardware version 28 or higher is needed. Jabra PRO 9470 Jabra Link 14201-10 DHSG cable. Gigaset cannot support you with questions about the Jabra Headset, for this contact your supplier. Connection Plug the 1-sided end of the DHSG cable into the Maxwell socket.
Page 2 Select phone settings, " Desk phone ", then "Connect to a desk phone?", " Manual ". Select adapter type "DHSG" Set the phone setup switch to position " ".
Page 3 We recommend setting the microphone volume to out of 13. Signalling of incoming call (Ringing in headset) The Maxwell 10 has a "HEADSET ON /OFF" setting that has the following function: In the right top corner of the Maxwell 10, pulldown the settings menu and via the menu: Headset ON - Ringing audio played via Headset during incoming ring.
Page 4 By default, EHS will be opened in Wide Band (WB / G.722) and will change to Narrow Band (NB / G.711) after call is connected and if G.711 codec is negotiated between DUT and User A. For this the headset connection is switched Off and On again.
