DEHUMIDIFIER
PRODUCT MANUAL
CONNECTING TO MI HOME APP
This product now works with Mijia or Mi Home. It can be
controlled using the Mi Home App or Xiao Ai. Can also be
interconnected with other devices.
Scan the QR Code below or visit the app store to download
and install Mi Home App. For users with existing Mi Home
account, proceed to "add device" page.
Open the Mi Home app home page and click the "+" sign
on the upper right corner to add device.
Note: Due to upgrades of the App, instructions may differ
from stated above. Follow the actual instructions indicated
in the App.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for NEW WIDETECH WDH330EFW1
Summary of Contents for NEW WIDETECH WDH330EFW1
- Page 1 DEHUMIDIFIER PRODUCT MANUAL CONNECTING TO MI HOME APP This product now works with Mijia or Mi Home. It can be controlled using the Mi Home App or Xiao Ai. Can also be interconnected with other devices. Scan the QR Code below or visit the app store to download and install Mi Home App.
-
Page 2: Product Parts
DEHUMIDIFIER PRODUCT MANUAL PRODUCT PARTS 1. Control Panel 2. Air outlet 3. Handle 4. Front cover 5. Water tank... - Page 3 DEHUMIDIFIER PRODUCT MANUAL PRODUCT PARTS 1. Back cover 2. Air filter 3. Drainage hole 4. Water pump connector...
-
Page 4: Control Panel
DEHUMIDIFIER PRODUCT MANUAL CONTROL PANEL 1. Power button 2. Continuous dehumidifying mode button 3. Set humidity level button 4. Clothes drying mode button 5. Timer button 6. Child lock 7. Water pump (ON/OFF) button 8. Lamp (ON/OFF) button 9. Wi-Fi indicator light (white) 10. - Page 5 DEHUMIDIFIER PRODUCT MANUAL CONTROL PANEL Note: Control panel can incline when pressed, refer to the image. (Recommend to press area – 13)
- Page 6 DEHUMIDIFIER PRODUCT MANUAL USAGE DIRECTIONS To Start For first time use, make sure to remove all packaging, have product settle for at least 2 hours before connecting power supply. Plug in the power cord in a single outlet. Make sure that water tank is installed. (If the “water tank –...
- Page 7 DEHUMIDIFIER PRODUCT MANUAL USAGE DIRECTIONS Handling Water tank – FULL condition When water tank is full, indicator will light up and the dehumidifier will automatically stop operating. Pull out water tank, drain water and put water tank back. Dehumidifier can be used after draining the water.
- Page 8 DEHUMIDIFIER PRODUCT MANUAL USAGE DIRECTIONS Wi-Fi indicator When product is powered ON and the Wi-Fi indicator is blinking, follow instruction in the Mi Home App to connect device to Wi-Fi. When connection is successful, Wi-Fi indicator light will be always ON. Long press the timer button for 5 seconds to do a factor reset for the dehumidifier, there will be a beep sound to notify.
- Page 9 DEHUMIDIFIER PRODUCT MANUAL USAGE DIRECTIONS Timer When product is operating, press the timer button to set power OFF time. When product is on standby, press the timer button to set power ON time. For every press of the timer button, time sequence as follows: 1 –...
- Page 10 DEHUMIDIFIER PRODUCT MANUAL USAGE DIRECTIONS Water pump setting button When product is operating, press the water pump ON/OFF button, to automatically drain water , press the button again to deactivate automatic drain water function. Lamp setting button Press the Lamp button to turn OFF all indicator lights, press the button again to turn ON all indicator lights.
-
Page 11: Continuous Drainage
DEHUMIDIFIER PRODUCT MANUAL CONTINUOUS DRAINAGE When dehumidifier is placed on a good to drain environment, user may follow the following instructions to use the continuous drainage. Twist open the drainage cap Connect the drain hose. - Page 12 DEHUMIDIFIER PRODUCT MANUAL CONTINUOUS DRAINAGE Installation of drain hose - When using continuous drainage , the drain hose must be lower than the drainage hole of dehumidifier and avoid uneven placement and overbending of the hose. Direct draining hose (ripple pipe) installation: Water pump hose installation Installation: (1) Hold the pipe connector...
-
Page 13: Maintenance
DEHUMIDIFIER PRODUCT MANUAL MAINTENANCE During repair and cleaning, for safety purposes, make sure power OFF and unplug power cord. Cleaning outer cover: A. Use a soft and clean cloth to wipe the outer cover of dehumidifier. B. If cover is very dusty and dirty, use gentle cleaning agent to wipe on the cover and use a wet cloth to wipe of the cleaning agent. - Page 14 DEHUMIDIFIER PRODUCT MANUAL MAINTENANCE 2. Air filter cleaning Air filter is used to filter the dust and dirt from the air, if air filter is clogged the efficiency of the dehumidifier will be affected. It is recommended to clean the filter on a weekly basis to maintain the efficiency of the dehumidifier.
-
Page 15: Specifications
DEHUMIDIFIER PRODUCT MANUAL SPECIFICATIONS Model Number WDH330EFW1 Power Supply 220 V~ 50Hz Dehumidifying power 30L/d (30C / 80%RH) Nominal dehumidification 0.72Kg/h (27C / 60%RH) Rated Power 420W Outer dimension (l x h x w) 380 x 590 x 259 mm Net Weight 16.7kg... - Page 16 DEHUMIDIFIER PRODUCT MANUAL PRECAUTIONS Please follow the following instructions to avoid possible harm to the user and possible damages to the product. Warning – May cause danger / harm to user and huge loss due to damage. Notice – May cause harm to user and possible damage. Warning To prevent fire, electric shock and harm to human body, make sure to follow following safety measures.
- Page 17 DEHUMIDIFIER PRODUCT MANUAL PRECAUTIONS Warning - If there are unusual incidents (i.e. Burnt smell), immediately tun OFF the machine and unplug power cord. - Before using the machine, make sure to read the manual first. - Avoid transporting the machine when it is operating. - When power cord is damaged or broken, contact the aftersales center for repair.
- Page 18 DEHUMIDIFIER PRODUCT MANUAL PRECAUTIONS Notice - When cleaning and repairing, make sure to remove power supply. (Do not use rubbing alcohol, gas or any chemical agent) - If unit will not be used for a long duration, unplug power cord, drain the water from water tank and have it air dried for at least 2 days.
-
Page 19: Troubleshooting
DEHUMIDIFIER PRODUCT MANUAL TROUBLESHOOTING ISSUE THINGS TO CHECK Is the power cord plugged in properly and in the correct outlet? There are no fuse available or Unit is not operating after fuse is cut off? turning ON. Is there power shortage? Is the water tank installed properly? Is the air filter dirty or clogged?
Need help?
Do you have a question about the WDH330EFW1 and is the answer not in the manual?
Questions and answers

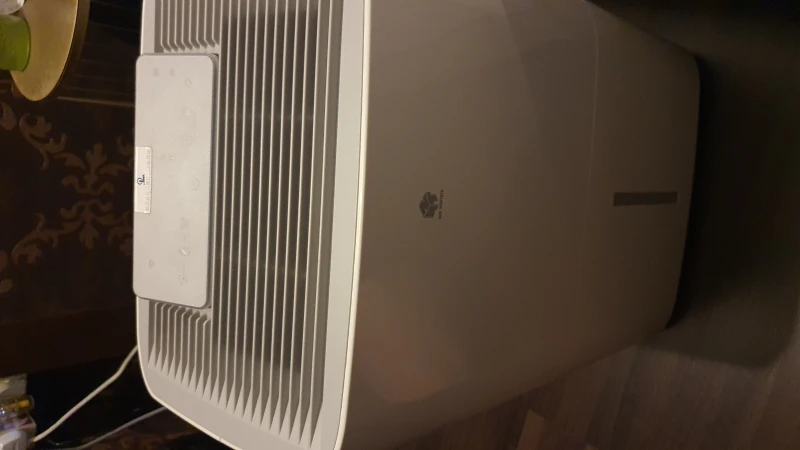

When i press on, all the indicator light up with beeping sound. Motor cannot start.
