NEW WIDETECH ausclimate WDH-1920EA User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

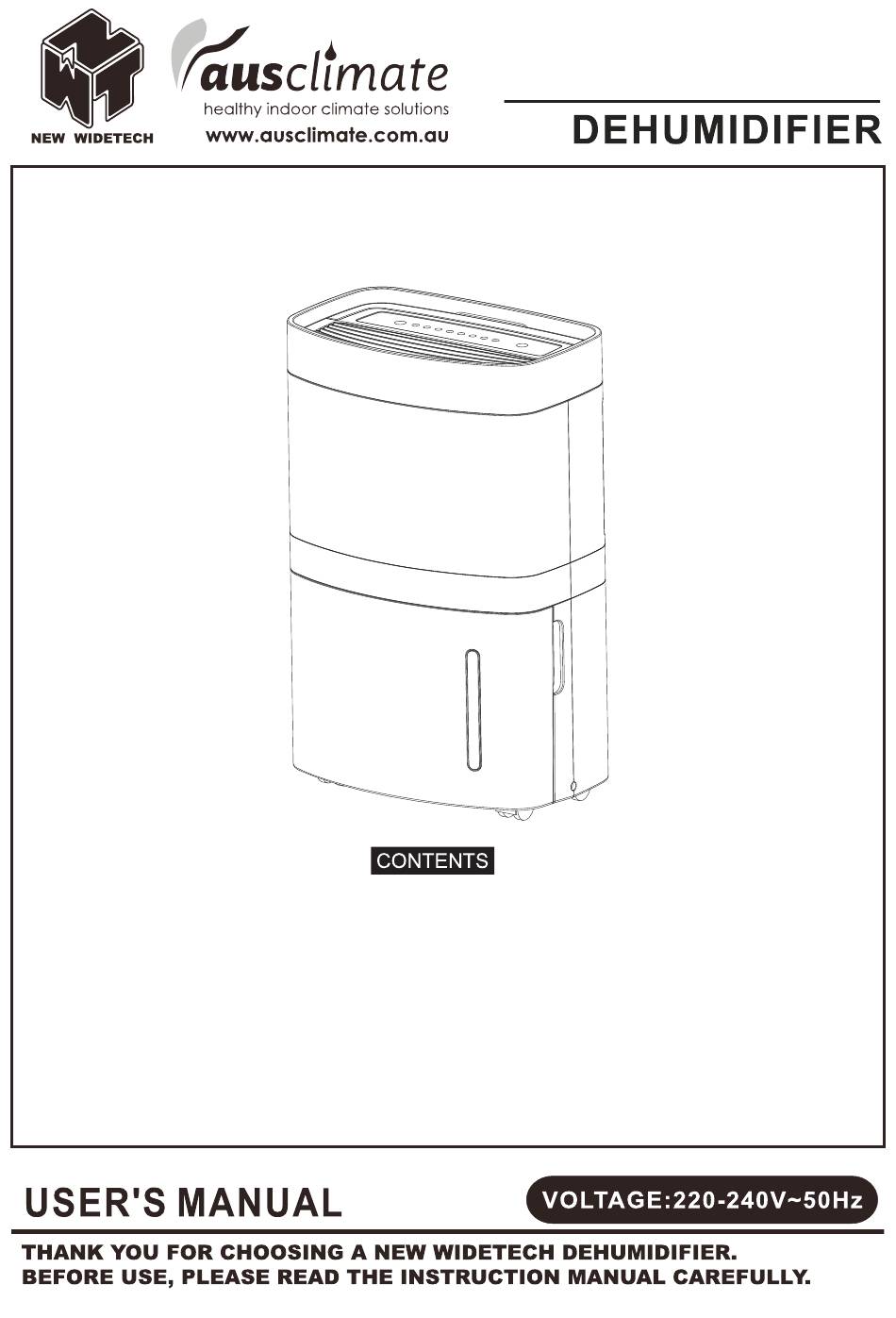

WDH-1920EA
WARNING · · · · · · · · · · · · · · · · · · · · · · · · · ·
· · · · · · ·
2-3
CAUTIONS · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 4-5
FUNCTION EXPLANATION · · · · · · · · · · · · · · · · · · · · · · 6
OPERATING INSTRUCTIONS · · · · · · · · · · · · · · · · · · · · 7
CONTINUOUS DRAINAGE OPTIONS · · · · · · · · · · · · · · 8
MAINTENANCE / EMERGENCY · · · · · · · · · · · · · · · · · · 9
SPECIFICATIONS · · · · · · · · · · · · · · · · · · · · · LAST PAGE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ausclimate WDH-1920EA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NEW WIDETECH ausclimate WDH-1920EA

Summary of Contents for NEW WIDETECH ausclimate WDH-1920EA

  • Page 1: Table Of Contents

    WDH-1920EA WARNING · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · CAUTIONS · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 4-5 DESCRIPTION OF COMPONENTS / FUNCTION EXPLANATION ·...

  • Page 2: Warning

    WARNING • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Page 3 WARNING Additional warnings for appliances with R290 refrigerant gas (refer to the rating plate located at rear of the appliance for the type of refrigerant gas used). READ THE MANUAL CAREFULLY BEFORE USING THE APPLIANCE • R290 refrigerant gas complies with European environmental directives. •...

  • Page 4: Cautions

    CAUTIONS Make sure the plug is Do not use multiple Do not fold the power cord as shown below. placed fully & firm into sockets as shown below. the socket. Make sure the plug Do not have wet hands After turning the unit off, is clean.
  • Page 5 CAUTIONS Do not pull the power cord, Do not use insect, oil or paint spray which may break and cause danger. around the machine. They might cause damage to the plastic parts or start a fire. Do not place the machine on uneven ground.

  • Page 6: Description Of Components

    DESCRIPTION OF COMPONENTS DEHUMIDIFIED CONTROL HANDLE PANEL DRY AIR VENT MOIST AIR INTAKE FRONT PANEL AIR FILTER PEAR PANEL DRAIN BUCKET ROLL CASTORS CONTINUOUS DRAINAGE OUTLET FUNCTION EXPLANATION HUMIDITY SET KEY To set the humidity, press the key to select desired setting.

  • Page 7: Operating Instructions

    OPERATING INSTRUCTIONS ● Start Operation 1) Ensure that the unit is connected to the power socket. 2) Make sure the water tank is placed in proper position (when plugged in for the first time the full tank lamp may light up. If so, just pull out the water tank then push it back to the proper position).

  • Page 8: Continuous Drainage Options

    CONTINUOUS DRAINAGE OPTIONS Continuous drainage is an additional method of removing collected water from the dehumidifier. Instead of manually emptying the water tank, the User may choose this method to allow the water to bypass the water tank and flow directly from the dehumidifier via a drain hose. The following steps are useful when there are good conditions for drainage near the dehumidifier.

  • Page 9: Maintenance / Emergency

    MAINTENANCE Air filter cleans the dust and impurities from the air which may hinder the dehumidifying function, these should be regularly cleaned. The filter is located behind the rear grill and should be pulled outwards from the top to remove. Clean with a vacuum cleaner or wash it with clean water and dry with a dry cloth.

  • Page 10: R290 Authorised Repairer Instructions

    INSTRUCTION FOR REPAIRING APPLIANCES CONTAINING R 290 AUTHORISED PERSONS ONLY! 1. Checks to the area Prior to beginning any authorised work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. The following precautions shall be complied with prior to conducting work on the system.
  • Page 11 INSTRUCTION FOR REPAIRING APPLIANCES CONTAINING R 290 AUTHORISED PERSONS ONLY! - that capacitors are discharged; this shall be done in a safe manner to avoid possibility of sparking. - that there are no live electrical components and wiring are exposed while charging, recovering or purging the system;...
  • Page 12 INSTRUCTION FOR REPAIRING APPLIANCES CONTAINING R 290 AUTHORISED PERSONS ONLY! Oxygen free nitrogen (OFN) shall then be purged through the system both before and during the brazing process. 15. Removal and evacuation When breaking into the refrigerant circuit to make repairs – or for any other purpose – conventional procedures shall be used.
  • Page 13 INSTRUCTION FOR REPAIRING APPLIANCES CONTAINING R 290 AUTHORISED PERSONS ONLY! f) Make sure the cylinder is situated on the scales before recovery takes place. g) Start the recovery machine and operate in accordance with manufacturer's instructions. h) Do not overfill cylinders. (no more than 80% volume liquid charge). i) Do not exceed the maximum working pressure of the cylinder, even temporarily.

  • Page 14: Specifications

    SPECIFICATIONS WDH-1920EA 390 W 0.115 kg SAA approval Certificate No.: SAA-210779-EA 328 x 516 x 219 mm 12.6 kg Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check your local authority of retailer for recycling advice.
