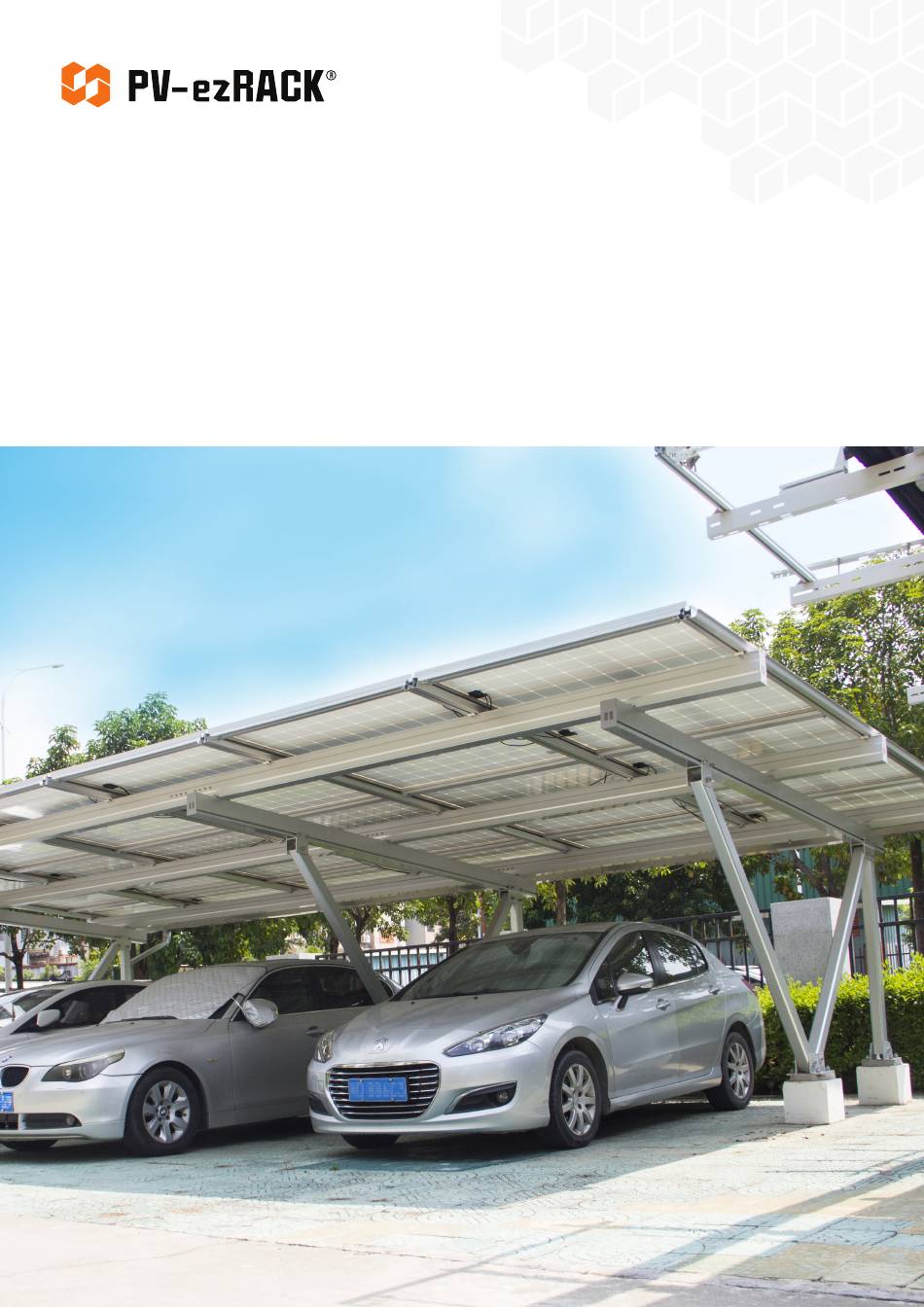

- Page 1 EzShade 2.0 Installation Guide V1.2 Ver 1.2 / Last Updated - Oct. 2021...
-
Page 2: Table Of Contents
Installation Guide /EzShade 2.0 Introduction Clenergy PV-ezRack® ezShade 2.0 is a ground mounting system for PV installation in residential or commercial List of contents regions, and which is designed to create new spaces for solar energy while also providing shade for parking. -
Page 3: Planning
Installation Guide /EzShade 2.0 Planning According to the figure above, applying PV module 1960x992x35mm, tilt angle 5 degree. The MAX height from the ground is 2572mm. The specific installation steps are as follows. - Planning - Code-Compliant Planning and Installation Guide V 1.2 - Complying with AS/NZS1170.2-2011 AMDT 2-2016... -
Page 4: Tools & Components
Installation Guide /EzShade 2.0 Tools and Components Tools 6mm Allen Key Socket Wrench Torque Wrench Electric Drill Marker Pen (M8/M12/M16) (M8/M12/M16) (ST6.3 self-drilling screw (M8 hex socket screw) and M8 hex socket screw) String 5m Tape Rubber Hammer Caulking Gun... - Page 5 Installation Guide /EzShade 2.0 Components BA-SDII/200 BA-SDII/280 GU-SDII/22/1913 C-SDII/50/35 RR-GU/SDII/22 Corrugated T-Base 200 Corrugated T-Base 280 Gutter 22*1913 Corrugated Clamp Rubber ring for Gutter 22 - Tools and Components - Code-Compliant Planning and Installation Guide V 1.2 - Complying with AS/NZS1170.2-2011 AMDT 2-2016...
-
Page 6: System Overview
Installation Guide /EzShade 2.0 System Overview Overview of PV-ezRack® ezShade 2.0 Overview of PV-ezRack® ezShade 2.0 1) ER-EC-W40/OM, LS Module End Clamp, with W module 2) ICII-W40-42/A, Inter Clamp II, with W module 3) R-SDII/60/5050, Rail 60*5050mm 4) ER-RC-T/W, Rail Clamp for T-Raill with W module... - Page 7 Installation Dimension All drawings and dimensions in this installation guide are for a generic reference. The PV-ezRack® ezShade 2.0 is to be optimized to suit specific conditions for each project and documented in a construction drawing. As a result, major components of the PV-ezRack®...
-
Page 8: Installation Instruction
Installation Guide /EzShade 2.0 Installation Instruction 1. Post and Girder Installation 5.1.1 Prepare the required installation tools and products before installation. As per engineering drawings, mark out the positions for bolts L=50±5mm and embed 4pcs of M20 bolt in each position as shown in Figure 2. - Page 9 Installation Guide /EzShade 2.0 5.1.3 According to the engineering drawing, place different length Rectangular Tube 100*90 and T Base 200/280 by below Bushing steps, as shown in Figure 6. (1) Place the Rectangular Tube L1 horizontally to align with the...
- Page 10 Installation Guide /EzShade 2.0 Keep all M16 bolt heads aligned. The support is complete as shown in Figure 7. Figure 7 5.1.4 Insert the assembled support into embedded bolts .Align the embedded bolts with the holes on the T-Base, put on the spring washer, flat washer and nut, manual locking as shown in Figure 8.
- Page 11 Installation Guide /EzShade 2.0 2. Rail 168 Installation 5.2.1 In order to form a longer section, first insert Splice halfway into end of T-Rail 168, and fasten by self-drilling screws as shown in Figure 11. Figure 11 Note: The position of self drilling screw ST6.3*22 for connection as shown in Figure 12(unit:mm), total 16pcs on both sides.
- Page 12 Installation Guide /EzShade 2.0 5.2.3 According to engineering drawings, repeat the above operations to install the other T-Rail as shown in Figure 14. Note: Make sure every row of T-Rail is on the same horizontal line and the ends of the T-Rail are aligned.
- Page 13 Installation Guide /EzShade 2.0 4. PV Module Installation 5.4.1 Click the pre-assembled End Clamp or Inter Clamp II into the grooves of the Rail 60 with Water Channel as shown in Figure 18. Figure 18 5.4.2 According to the Figure, place the first row of PV Module on the Rail 60 one by one. The order of the PV Module is from low to high, and from left to right as shown in Figure 19.
- Page 14 Installation Guide /EzShade 2.0 5. Grounding Clip Installation 5.5.1 Slightly lift the PV module and stick the hook of the Grounding Clip onto the Rail 60, and then press the PV module on the Groungding Clip. It is recommended that 2 x Grounding Clips per panel are used. (Two at 1/4 of both ends of the PV module as shown in Figure 22.)
- Page 15 Installation Guide /EzShade 2.0 5.6.3 Tilt the Gutter and place it between the bottom of the PV Module and the Rail 60 with Water Channel as shown in Figure 26 .The order of the Gutter is the same as the PV Module, from low to high, and from left to right.
- Page 16 5.6.7 After the installation is completed, check to ensure all bolts are locked, and the installation is complete as shown in Figure Figure 29 7. How to Achieve Earthing for ezShade 2.0 System 5.7.1 Grounding Clip for LS-Rail Grounding Clip for LS-Rail are used to create the earthing continuity between the PV modules and the Rail 60.
- Page 17 Clenergy 999-1009 Min’an Rd, Phone: +86 592 311 0088 Huoju Hi-tech Ind. Dev. Zone Email: sales@clenergy.com Xiang’an District 361101, Xiamen, Web: www.clenergy.com Fujian, China @ClenergyGlobal / @ClenergyClub / @ClenergyAUS / @ClenergyThailand @Clenergy_global @Clenergy @Clenergy @ClenergyClub A Clenergy Technologies Company...
