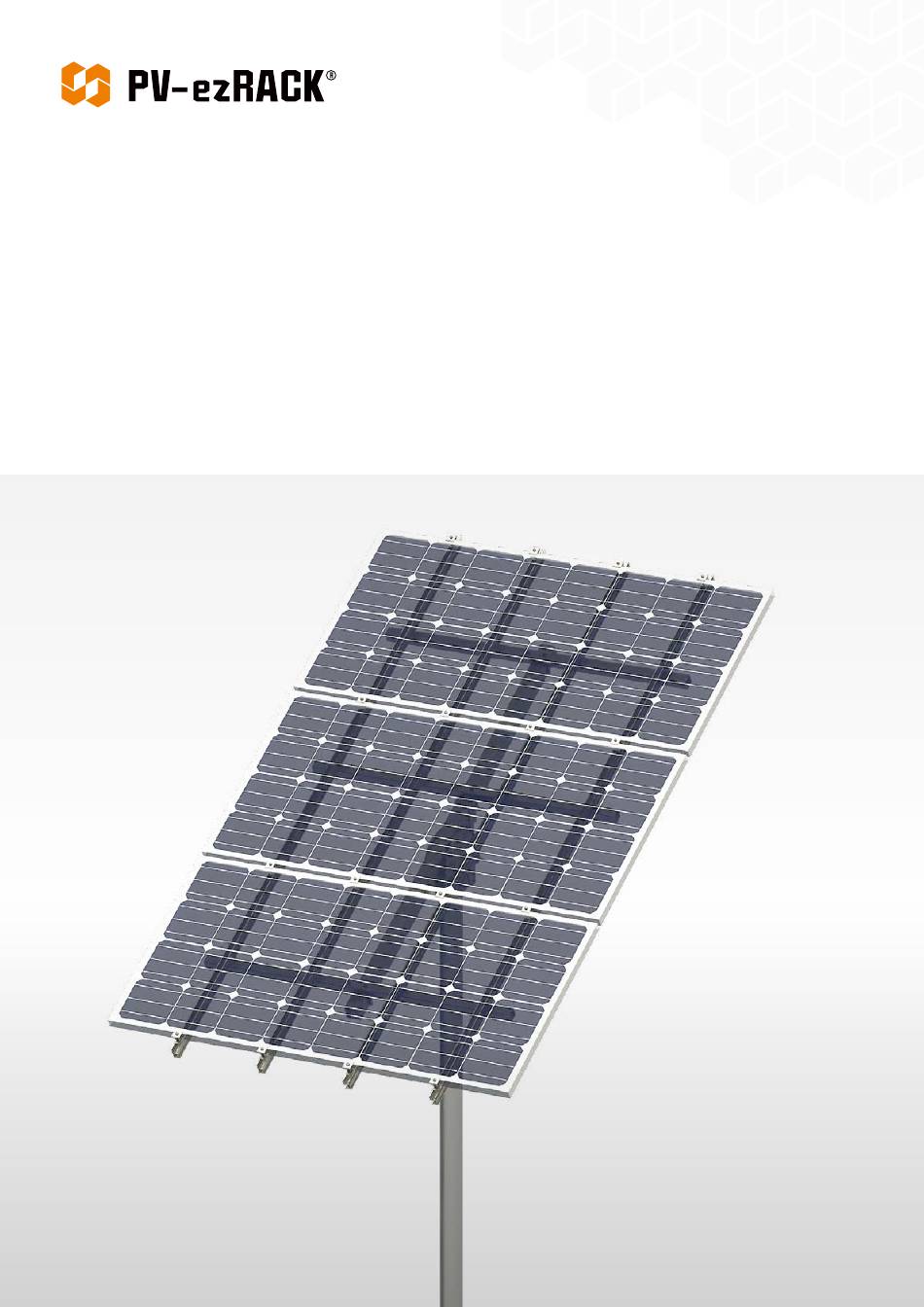

- Page 1 PostMount 3-A for XL Panels Code-Compliant Planning and Installation Guide V 1.1 Complying with AS/NZS1170.2-2011 ADMT 4-2016 Last Updated - Mar. 2022...
-
Page 2: Table Of Contents
Installation Guide / PostMount 3-A for XL Panels Introduction Clenergy PV-ezRack® PostMount 3-A for XL Panels (up to 2100 x 1100 mm) is a ground mounting system suitable List of contents for large scale commercial and utility scale installations. PVezRack ® PostMount 3-A for XL Panels has been... -
Page 3: Tools & Components
Installation Guide / PostMount 3-A for XL Panels Tools and Components Tools Allen Key 6 mm Spanner Torque Wrench 5m Tape String & Marker Pen Components Anchoring Kit Mixing Nozzles C-U/30/46-G ER-R-ECO/3150 ER-AP-PM3/A-LP ER-P-102/2600 SC-PM2/3/4/A Universal Clampx4 ECO-Rail, length PM3-A Kit x 1... -
Page 4: System Overview
8. Rectangular Tube- Landscape Side view drawing of PV-ezRack® PostMount 3-A for XL Panels is shown below. The panels tilt angle and embedment depth below are for reference only. Please refer to Certificate Letter to obatin the certified max panels tilt angle and min embedment depth for different wind regions and different soil types. - Page 5 Installation Guide / PostMount 3-A for XL Panels 2. Precautionary Measures for Stainless-Steel Fastener Installation Improper operation may lead to the deadlock of bolts and nuts. Follow the steps below to reduce this risk. Reduce the friction coefficient (1) Ensure that the thread surface is clean (no dirt or contaminant).
- Page 6 XL Panels is to be optimized to suit specific conditions for each project and documented in engineering drawings. As a result, major components of the PV-ezRack® PostMount 3-A for XL Panels may be provided in sectional sizes and lengths that vary from those shown in this guide. The installation operations detailed in this instruction guide remain the same regardless of the component size.
-
Page 7: Installation Instruction
Installation Guide / PostMount 3-A for XL Panels Installation Instruction 1. Pipe Installation Dig a hole with the diameter of 300mm . Place the pole into the middle of the hole and fill it with concrete (min 25 MPa strength). Maintain the position of the post. The allowed vertical tolerance is ±2°.Keep the axle of the 2- Ø16 holes parallel to... - Page 8 Installation Guide / PostMount 3-A for XL Panels 3. Rectangular Tube-Master and Adjustable Tube Installation 1) Fix the Rectangular Tube-Master at Steel Cap Assembly with M14*120 hex bolt, M14 nut, plain washer 14, and spring washer 14. See the mark (1).
- Page 9 Installation Guide / PostMount 3-A for XL Panels 4. Rectangular Tube- Landscape Installation 1) Fix the 3 pcs PM3-A Rectangular Tube-Landscapes at Rectangular Tube-Master with 3 pcs U-bolts, 6 pcs M10 nuts , 6 pcs spring washers 10, and 6 pcs plain washers 10. Do not fasten the Nut until 3 Rectangular Tube-Landscapes aligned.
- Page 10 Installation Guide / PostMount 3-A for XL Panels 5. ECO-Rail Installation Uplift the Cross Connection Clamp in the certain angle. Click the Clamp into the ECO-Rail. Position the Rail in the middle of the Rectangular Tube-Master, and then fasten the M8*70 bolt.
- Page 11 Installation Guide / PostMount 3-A for XL Panels Note: The Universal Clamp can be used both as a End Clamp and a Inter Clamp, and the height can be adjusted from 30 to 46 mm. When the side of the Universal Clamp close the narrow side of the Universal Clamp Buckle, it can be used as End Clamp, and when the side of the Universal Clamp close the wide side of the Universal Clamp Buckle, it can be used as Inter Clamp, as shown in the figure below.The Universal Clamp can be directly rotated to the position of required End...
- Page 12 Installation Guide / PostMount 3-A for XL Panels There are three solutions for Grounding Lug installation. Solution 1: Fix the Grounding Lug at the end of Rail as shown in the figure on the right. Solution 2: Fix the Grounding Lug at the Rail where just under the PV Module as shown in the figure on the right.
-
Page 13: Certification
Australian and NZ Building Regulations, have carried out a structural design check of the PV- ezRack Postmount PM3-A/2100 within Australia. The design check has been based on the information in the PV-ezRack PM3-A/2100 Planning and Installation Guide and schematic drawings of the system components, provided by Clenergy Australia. - Page 14 Installation Guide / PostMount 3-A for XL Panels REF: CL-10128-S Internal REF: 00141 • Max Solar Panel Length 2.1m, width 1.1m; Yield Strength: • Steel 300 MPa, Aluminium 240 MPa; Maximum tilt angle options: refer to tables; •...
- Page 15 Installation Guide / PostMount 3-A for XL Panels REF: CL-10128-S Internal REF: 00141 Maximum Tilt Angle Options Wind Region Region A Region B Region C Region D Wind speed (m/s) Maximum tilt angle (◦) Post Embedded in concrete pier: Soil Type...
- Page 16 Installation Guide / PostMount 3-A for XL Panels REF: CL-10128-S Internal REF: 00141 8. Footing depths are for reference only. The characteristics of the soil must be checked on site by a technical expert. A soil report assessment is always recommended and Clenergy must be informed on the outcome of the soil report.
- Page 17 Clenergy 1/10 Duerdin St Phone: +61 3 9239 8088 Clayton VIC 2168 Email: sales@clenergy.com.au Australia Web: www.clenergy.com.au @ClenergyGlobal / @ClenergyClub / ClenergyAUS @Clenergy @ClenergyClub @Clenergy_global @Clenergy A Clenergy Technologies Company...
