Wickes EASTON 500 Assembly Manual

Wall mounted vanity
Hide thumbs Also See for EASTON 500:

Advertisement

Quick Links

Please read these instructions before installation.
Safety: Handle the product with care. When drilling walls check for hidden pipes and electric cables.
Use safety eye wear when drilling. Keep all small parts and screws away from children. This is a heavy item
so seek help when handling and installing if necessary.
Customer support: We have taken great care to ensure that this product reaches you in perfect condition.
However, should any parts be damaged or missing please contact your local Wickes branch. This does not
affect your statutory rights. In addition if you require replacement parts, your local Wickes branch will be happy
to assist.
Cleaning: Clean with warm water, a clean cloth or soft sponge. Use household domestic cleaning products
that have no abrasive ingredients. Then wipe with fresh water, removing all traces of cleaning agent, to prevent
streaks forming. Dry the surface with a clean, absorbent cloth or paper towels.
The following cleaning agents should not be used under any circumstances:
Scouring and abrasive agent (abrasive powders, scouring pads, steel wool)
Polish, washing powder, furniture cleaner or bleach
Detergents with strong acids and acidic salts
Steam cleaning equipment
ASSEMBLY GUIDE

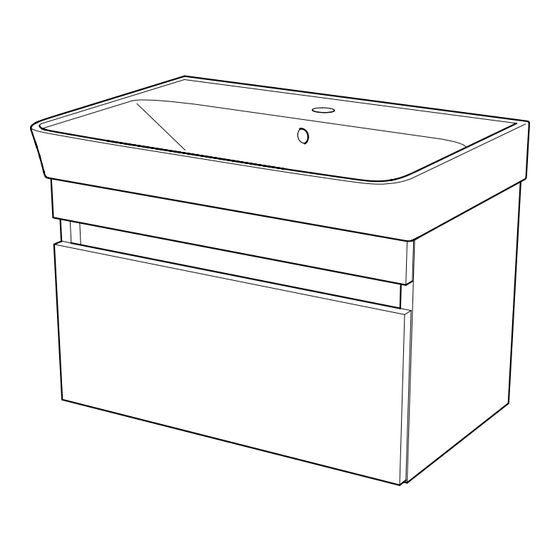

EASTON - WALL MOUNTED VANITY 500/600
Version 1

Advertisement

loading

Summary of Contents for Wickes EASTON 500

  • Page 1 Customer support: We have taken great care to ensure that this product reaches you in perfect condition. However, should any parts be damaged or missing please contact your local Wickes branch. This does not affect your statutory rights. In addition if you require replacement parts, your local Wickes branch will be happy to assist.
  • Page 2: Tools Required

    Tools required (not supplied) Parts supplied A x18 B x10 C x10 D x12 E x2 F x4 H x1 G x2 I x2 (LH and RH) J x2 K x1 L x2...
  • Page 3 STEP 1 , Release and separate the drawer runners Depress the lever and remove the runner, a little force may be required. STEP 2 Left hand side illustrated above. Right hand side is the opposite.
  • Page 4 STEP 3 STEP 4...
  • Page 5 STEP 5 STEP 6...
  • Page 6 STEP 7 85mm 29mm STEP 8 CLICK CLICK...
  • Page 7 STEP 9 STEP 10...
  • Page 8 STEP 11 STEP 12 CLICK Insert drawer...
  • Page 9 STEP 13 , Drawer adjustment Drawer frontal adjustment Insert drawer CLICK Remove drawer frontal Remove drawer STEP 14 , Secure mounting brackets Wall fixing screws are not supplied, please use suitable fixings dependant upon wall construction.
  • Page 10 STEP 15 , Hang the cabinet STEP 16 , Level the cabinet and secure to wall IMPORTANT: Adjust only by hand. We do not recommend the use of power screwdrivers. 2. Secure to wall. 1. Level cabinet.
  • Page 11 FITTING THE BASIN Place basin on top of the vanity unit. Secure basin using suitable fixings. Wall fixing screws are not supplied, please use suitable fixings dependant upon wall construction. Complete the installation by applying a bead of sealant between the basin and the vanity unit and between the basin and the wall.
