Assembly, Operation & Maintenance Instructions

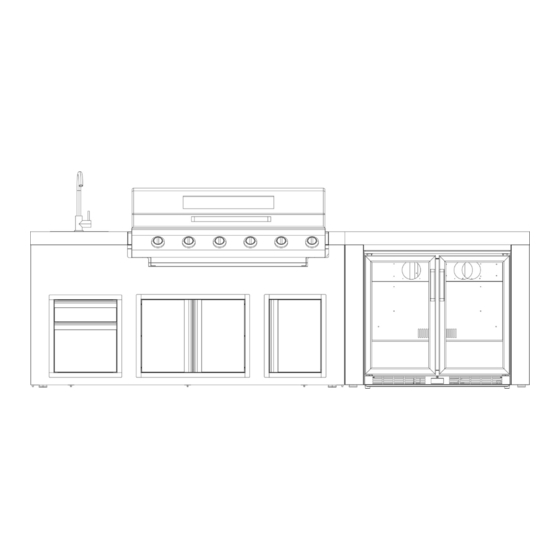

Everdure Bayview & Whitehaven
Built-In Module Beverage Cooler
EBCMG & EWCMW
For outdoor use only
IMPORTANT
PLEASE KEEP THIS BOOKLET FOR FUTURE REFERENCE.
THIS IS IMPORTANT INFORMATION REGARDING THE
USE AND CARE OF YOUR BARBECUE.
September 2023
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Everdure Bayview EBCMG
Summary of Contents for Everdure Bayview EBCMG
- Page 1 Assembly, Operation & Maintenance Instructions Everdure Bayview & Whitehaven Built-In Module Beverage Cooler EBCMG & EWCMW For outdoor use only IMPORTANT PLEASE KEEP THIS BOOKLET FOR FUTURE REFERENCE. THIS IS IMPORTANT INFORMATION REGARDING THE USE AND CARE OF YOUR BARBECUE.
- Page 2 It is important that you retain these instructions, proof of purchase as well as other important documents about this product for future reference. Due to continual product development, Everdure reserves the right to alter specifications or appearances without notice. Dispose of packaging responsibly – recycle where facilities are available.
- Page 3 IMPORTANT SAFETY INSTRUCTIONS IMPORTANT: Read the assembly instruction section and safety precautions of this booklet carefully before removing the contents of this carton. If you are unsure about anything regarding your built-in module or beverage cooler, please contact your Service Centre before operating the appliance. This beverage cooler module is for semi-covered areas, protected from rain and sunlight only.
- Page 4 ASSEMBLY INSTRUCTIONS Remove all components from the cartons and carefully check against Parts List. Make sure you thoroughly inspect parts before assembly. Some assembly will require the use of a Phillips Drive screwdriver. Neo recommends that the assembly be done by 2 (or more) people due to the size and weights of the components.
- Page 5 STEP 1 Place rear panel (02) on the ground and left panel (03) up against it so that the screw brackets match up with the screw holes. Fix in place using 3 screws (8). Note orientation of power cable hole. STEP 2 Repeat step 1 using the right panel (04).
- Page 6 STEP 3 Place 2 support (05) at the front and rear top of the module between the left and right panels. Use 4 M4 screws (10) to fix it in place. STEP 4 Place the front support (06) at the front top of the module between the left and right panels, so the overhang matches up with the side strips and the screw holes match up.
- Page 7 STEP 5 Carefully lift the top panel (1) and place it centrally over the rest of the module. Align the 3 sets of brackets in the sides & rear of the top panel with those in the module, and fix in place with 3 butterfly screws (12). The module is now finished.
- Page 8 A division of Shriro Australia Pty Ltd Australia: 1300 766 066 www.everdure.au FOR OUTDOOR USE ONLY Assembly, Operation & Maintenance Instructions...
