Summary of Contents for Everdure KILN

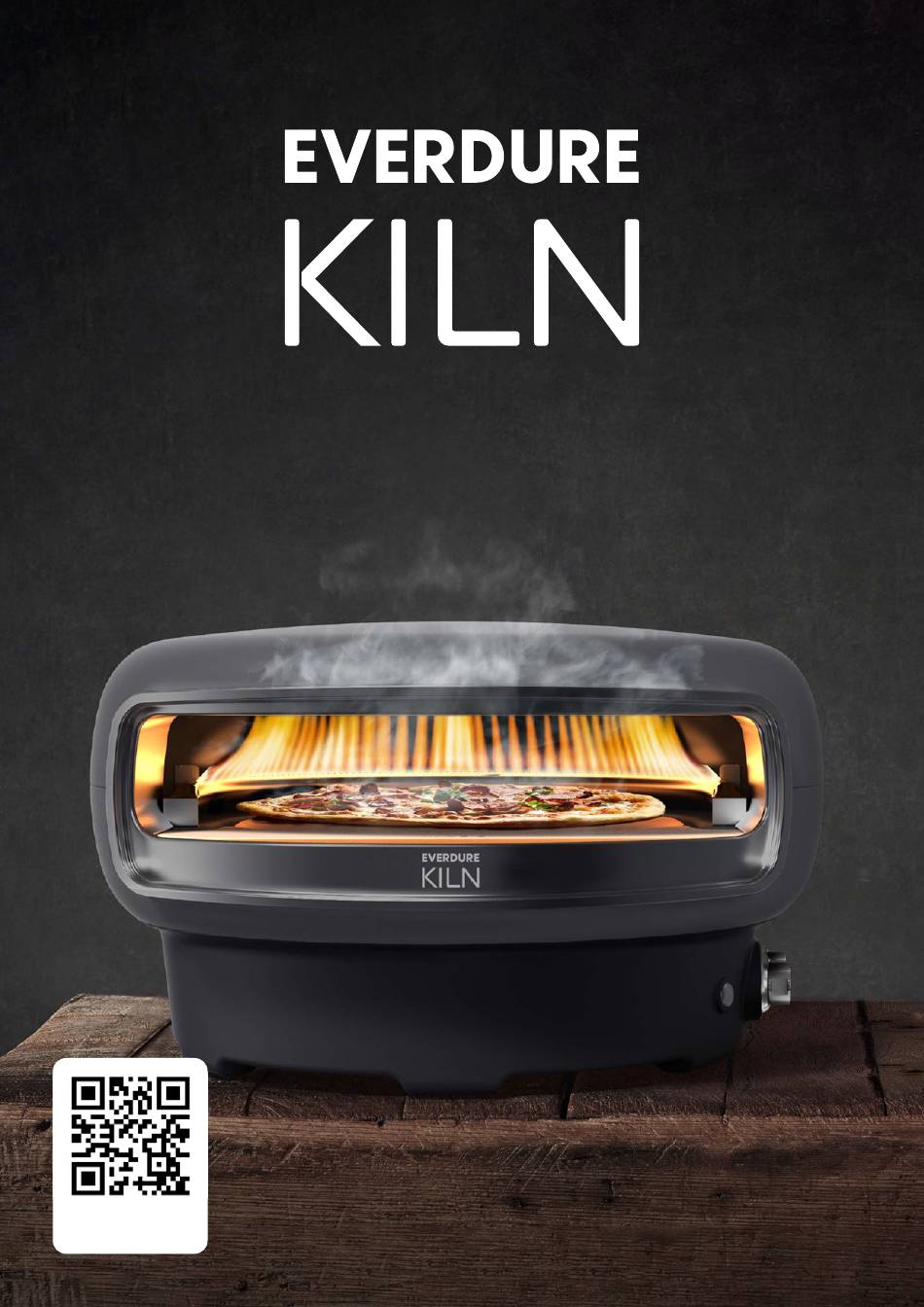

- Page 1 INSTRUCTION MANUAL Scan for further support...
- Page 2 Cooking Hints and Tips KILN R Series - 2 Burner Care & Maintenance Troubleshooting Specifications Warranty Note; In this instruction manual, the Everdure Kiln will be referred to as an appliance. 1 BURNER 1 BURNER 1 BURNER 2 BURNER 2 BURNER...
-
Page 3: Important Safety Instructions
IMPORTANT: Read the safety precautions of this booklet carefully before removing the appliance from its carton or connecting the appliance to its gas supply. If you are unsure about anything regarding your appliance, please contact Everdure in Australia on 1300 437 866 or in New Zealand on (09) 415 6000 before operating your appliance. -
Page 4: Appliance Details
FOR ULPG CYLINDER CONNECTION: • For storage and cylinder exchange, disconnect the cylinder only. Do not disconnect hose from the appliance. • To achieve the optimum performance from your appliance, an approved gas cylinder (Type 27 fitting) of 4kg or 9kg capacity must be used. - Page 5 OUTDOOR INSTALLATION GUIDE: This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. This appliance must not be used indoors. Do not use your appliance in garages, porches, sheds, or other enclosed areas.
-
Page 6: Battery Installation
If after following these instructions, you are still having problems with the appliance running at a reduced capacity, please contact Everdure in Australia on 1300 437 866 or in New Zealand on (09) 415 6000 before operating your appliance. - Page 7 OPERATING INSTRUCTIONS: Once your regulator is connected, open the gas from your gas cylinder. KILN 1 Burner To ignite the burner, please push the knob in and slowly turn anti clockwise until you hear a click of the ignition. This should take at least 8-10 seconds as you allow the gas to flow into the burner inside the oven.
- Page 8 COOKING HINTS AND TIPS KILN S SERIES - 1 BURNER Preheating Ignite the appliance and leave it on high for approx. 15 to 20min. This will give you enough time to heat the stone to your desired cooking temperature. Cooking When the appliance has reached your desired cooking temperature, turn the knob to halfway.
- Page 9 COOKING HINTS AND TIPS KILN R SERIES - 2 BURNER Preheating Start the turntable by pressing the button. Ignite both burners and leave on high for approx. 10min. This will give you enough time to heat the stone to your desired cooking temperature. Note: the boost burner only has one setting.
-
Page 10: Care And Maintenance
• CORDIERITE PIZZA STONE CARE • This pizza stone is designed to be used in the Everdure Kiln only. • Only use water to clean the pizza stone, using soap will leave residue in the pores of the stone. •... - Page 11 BATTERIES DO’S & DO NOT’S • Dispose of used batteries carefully to ensure that a small child does not consume them. Please seek doctor - medical attention immediately if batteries are consumed. • DO NOT mix new batteries with old batteries. This may cause the batteries to overheat and leak. •...
-
Page 12: Troubleshooting
TROUBLESHOOTING: Burner will not ignite when using the igniter: Cylinder valve is not on Turn cylinder valve on Cylinder is empty Replace with a full cylinder Igniter button is not working Check battery Igniter is not sparking Contact the Service Centre Burner flame is erratic: Flame is burning inside burner Turn off burner, allow to cool and re-ignite... -
Page 13: Specification
SPECIFICATIONS: PRODUCT 1 BURNER 2 BURNER Dimensions (mm) 740 x 660 x 380 (mm) 740 x 660 x 380 (mm) Weight NW / GW 28.5 / 33.3 (kg) 29.2 / 35.0 (kg) Turntable RPM using the adapter supplied 2.5 rpm Power supply EKILN2 only: MODEL SPECIFICATION... -
Page 14: Warranty
The product will be repaired or replaced at the option of Everdure, but all costs of installation, removal, cartage, freight, travel expenses and insurance are to be paid by the claimant. Our Warranty is subject to products being used for single-family domestic household use. -
Page 15: Warranty Period
WHAT IS COVERED: By Our Warranty During the warranty period your appliance will be repaired free of charge by Everdure, or its authorised service centre provided your appliance is delivered to and picked up from Everdure or its authorised service centre, subject to terms and conditions below. - Page 16 IM REF: EKILN AU 26/07/2023...
