OPERATOR'S MANUAL

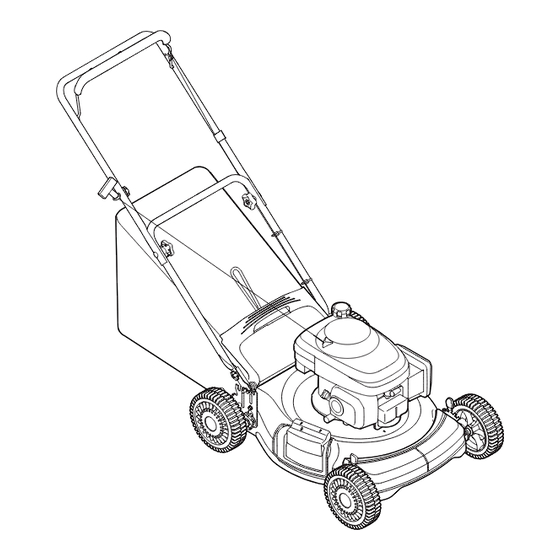

21-inch Rotary Mower — Model 439
IMPORTANT
READ SAFETY RULES AND INSTRUCTIONS CAREFULLY BEFORE OPERATION
Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-
covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any).
If a spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the above is required by law
(Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester
for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland,
Ohio 44136-0019.
FORM NO. 769-02328
01/09/2006
CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
PRINTED IN U.S.A.
Advertisement
Table of Contents
Related Manuals for Cub Cadet 439
Summary of Contents for Cub Cadet 439
- Page 1 (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-0019. FORM NO. 769-02328 01/09/2006 CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 PRINTED IN U.S.A.
-
Page 2: Table Of Contents
This Operator’s Manual is an important part of your new lawn mower. It will help you assemble, prepare, and maintain the unit for best performance. Please read and understand what it says. Slope Gauge ... 3 Safe Operation Practices ... 4 Setup and Adjustment ... -
Page 3: Slope Gauge
Use this page as a guide to determine slopes where you may not operate safely. Do not operate your lawn mower on such slopes. Slope Gauge WARNING Do not mow on inclines with a slope in excess of 15 degrees (a rise... -
Page 4: Safe Operation Practices
DANGER: This machine was built to be operated according to the rules for safe operation in this manual. As with any type of power equipment, carelessness or error on the part of the operator can Safe result in serious injury. This machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death. -
Page 5: Slope Operation
19. Shut the engine off and wait until the blade comes to a complete stop before removing the grass catcher or unclog- ging the chute. The cutting blade continues to rotate for a few seconds after the engine is shut off. Never place any part of the body in the blade area until you are sure the blade has stopped rotating. -
Page 6: Setup And Adjustment
Setup and Adjustment Figure 3-1: Unfold handle and tighten hardware. Stand behind the mower as if you were going to operate it. Your right hand corresponds to the right side of the mower; your left hand corresponds to the left side of the mower. Make sure to route cable outside the lower handle. - Page 7 5. Follow steps below to assemble the grass catcher (if needed). Make certain bag is turned right side out before assembling (warning label will be on the outside). a. Place bag over frame so that its black plastic side is at the bottom. b.
-
Page 8: Operating Your Lawn Mower
Figure 4-1: The main components on the mower. flammable and the vapors are explosive. Never fuel Now that you have setup your lawn mower, its important to become acquainted with its controls and features. the machine indoors or Blade Control while the engine is hot or running. -
Page 9: Starting The Engine
Using Your Lawn Mower Be sure lawn is clear of stones, sticks, wire, or other objects which could damage lawn mower or engine. Such objects could be accidently thrown by the mower in any direction and cause serious personal injury to the operator and others. -
Page 10: Maintaining Your Lawn Mower
Recommendations • Always observe safety rules when performing any maintenance. Always stop engine, • The warranty on this lawn mower does not cover disconnect spark plug, items that have been subjected to operator abuse and ground against engine or negligence. To receive full value from warranty,... -
Page 11: Blade Care
When storing any type of power equipment in a poorly ventilated or metal storage shed, care should be taken to rust-proof the equipment. Using a light oil or silicone, coat the equipment, especially cables and all moving parts of your lawn mower before storage. Maintaining Your Lawn Mower... -
Page 12: Troubleshooting
Problem Engine fails to start Trouble Shooting Engine runs erratic Engine overheats For repairs beyond the minor adjustments listed here, contact Occasional skips an authorized service (hesitates) at high speed dealer. Idles poorly Excessive Vibration Mower will not mulch grass Uneven cut Cause 1. -
Page 13: Safety Labels
Safety Labels Found On Your Lawn Mower �� ������ ��� ���� �� ������� �� ��� ������� ������ ��������� ����� �� ����� ������� �� �� ��� ������ ������ �� �������� ������� ������������ � � � � � � � � �... - Page 14 � � � �� � �� �� �� � �� �� � � �� � � �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� ��...
-
Page 15: Parts List
731-05564 Bail Cover 746-1130 Control Cable 40-inch 726-0240 Cable Tie 664-04054 Grass Bag Assembly 747-04080 Grass Bag Frame 732-0700 Trailshield Wire 731-04998 Trailshield 747-04035 Pivot Rod 731-04134A Rear Door 10 687-02069 Height Adj. Bracket Assy - LH 687-02068 Height Adj. Bracket Assy - RH 11 787-01279 21-inch Deck 12 687-02075A Hgt. -
Page 16: Warranty
