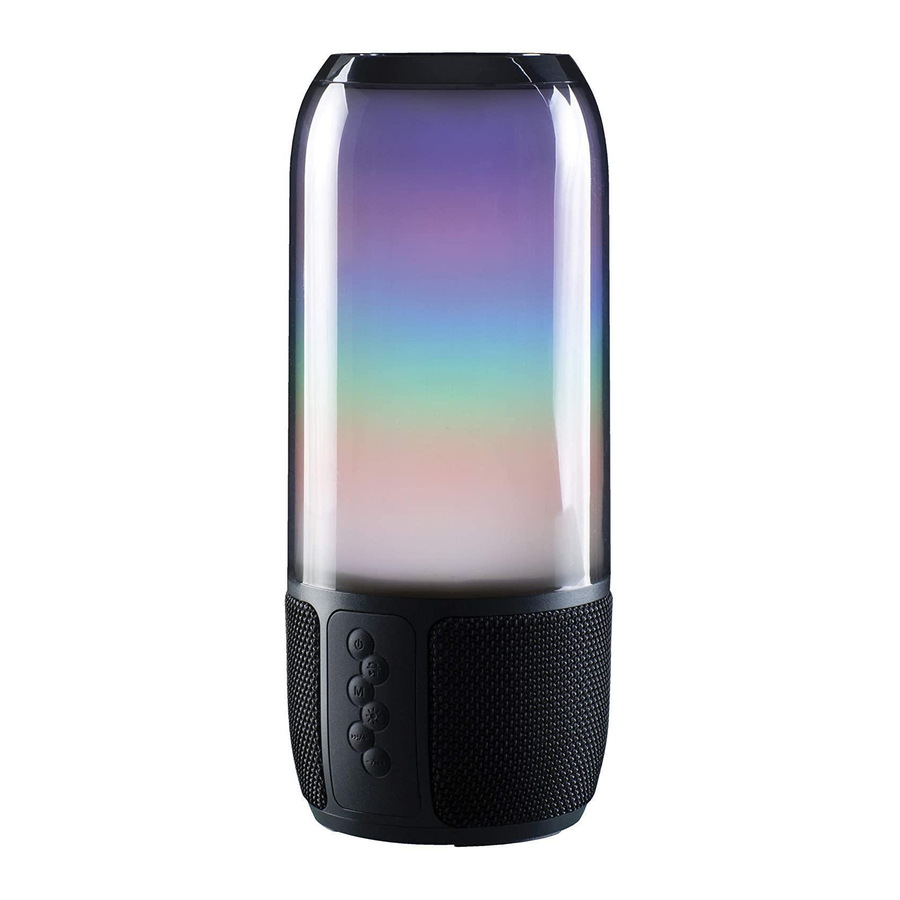

Daewoo AVS1424 - Sound Glow Bluetooth Party Speaker Manual

Description of Front Panel Functions

	1.	Press and hold the button to turn the speaker on and off.
M	2.	Mode: Switch between Bluetooth/ Aux/ TF (SD) card/USB Memory Stick.
	3.	Press and hold the button to increase the volume, briefly press to skip to the next track.
	4.	Briefly press the Phone button once to answer an incoming call. Briefly press the Phone button to end a call. Press and hold the Phone button for 2 seconds to reject a call. Short press the Phone button twice to redial last number Press the button to pause a song while playing music, press again to continue playing.
	5.	Press to change LED colour changing light mode.
	6.	Press and hold the button to decrease the volume; briefly press to skip to the previous track.

Description of Parts – Rear Panel

AUX – External 3.5mm input
Micro USB DC Port
USB – USB Memory Stick Port
Micro SD/TF Card Player
Charge indicator (Next to the USB port)
USB Charging Cable
Micro USB Plug
5mm Jack to Jack Lead

Before the first time you use your Sound glow Speaker

Please read these operating instructions thoroughly and keep them in a safe place for future reference.

Remove all packing materials and discard responsibly.

Charging the internal Battery

Before use, please ensure that the internal rechargeable battery is fully charged as follows:

Insert the Micro USB Plug (13) of the USB Charging Cable (12) into the Micro USB DC Port (8) on rear panel of the Speaker to charge the internal battery.
Insert the large USB plug on the other end of the USB Charging Cable (12) into a suitable USB charger rated at 5 volts 1 amp minimum.
The Charging Indicator (11) will light red to show the internal battery is charging. Once the battery is fully charged, the Charging Indicator (11) will go out showing that the internal battery is fully charged and the USB Charging Cable (12) can be removed.

NB the Speaker can be used normally during charging.

NB If two beeps are heard during use then the battery will need to be re-charged.

Operating Instructions

Using the Bluetooth Mode

Press and hold the Power button (1) on the Front Panel for three seconds to power up the speaker.
The speaker will light up in a multicolour mode.
Enable the Bluetooth mode on your Phone, Tablet or other Bluetooth compatible device and set it to search.
Select 'AVS1424' from the search results found by your device which will now pair with the speaker. Once the device has paired the speaker will chime.
Enable the music player on your Phone, Tablet or other device you are using.
Press the Play/Pause/Phone button (4) to start and stop (pause) the connected device playing.
Briefly press the skip forwards (3) and skip backwards buttons (6) to change the track being played.
Press and hold the skip forwards (3) and skip backwards buttons (6) to increase and decrease the volume level.
Alternatively use your devices controls in the usual manner.

Using the AUX/LINE Input

The AUX/LINE Input allows a direct wired connection of an external audio device (such as a mobile phone, music player, etc.) via a 3.5mm jack socket input on the rear Panel.

Press and hold the Power button (1) on the Front Panel for three seconds to power up the speaker.
Insert a suitable 3.5mm jack lead (3.5mm Jack to Jack lead supplied (14)) into the AUX socket (7) on the rear panel of the Speaker.
The speaker will automatically detect the lead and switch to AUX mode.
Insert the other end of the lead into the device you are playing from.
Press and hold the skip forwards (3) and skip backwards buttons (6) to increase and decrease the volume level.

Playing Music from a USB Memory Stick

Press and hold the Power button (1) on the Front Panel for three seconds to power up the speaker.
Insert a USB Memory Stick (pre-loaded with audio tracks – Mp3, WAV, files etc.) into the USB memory stick port (9) on the rear panel.
NB the USB port supports USB 2.0 and up to 32GB capacity max.

The tracks on the memory stick will begin to play automatically.
Briefly press the Play/Pause/Phone button (4) to play and pause the memory stick.
Briefly press the skip forwards (3) and skip backwards buttons (6) to step through the tracks on the memory stick.
Press and hold the skip forwards(3) and skip backwards buttons (6) to increase and decrease the volume level.

Playing Music from a Micro SD/TF Card

Insert a Micro SD or TF card (pre-loaded with audio tracks – Mp3, WAV, files etc.) into the MICRO SD Player (10) on the rear panel.
NB the Micro SD/TF card player supports cards up to 32GB capacity max.
The tracks on the card will begin to play automatically.
Press the Play/Pause/Phone button (4) to play and pause the memory card.
Briefly press the skip forwards (3) and skip backwards buttons (6) to step through the tracks on the SD/TF card.
Press and hold the skip forwards (3) and skip backwards buttons (6) to increase and decrease the volume level.

Handling Telephone Calls

Answering a Call

A call coming in will mute (cut) the music you are listening to.
Briefly press the Play/Pause/Phone button (4) to answer the call.
Press and hold down the skip forwards button (3) to increase the call volume level.*
Press and hold down the skip backwards button (6) to decrease the call volume level.
Briefly press the Play/Pause/Phone button (4) again to end the call.
The callers voice will be heard through the speaker and your voice will be picked up by the built in Microphone inside the speaker.

Rejecting a Call

A call coming in will mute (cut) the music you are listening to.
Press and hold the Play/Pause/Phone button (4) for two seconds to reject the call.

Redialling the Last Call Made

Briefly press the Play/Pause/Phone button (4) twice to redial the last number you called.
Briefly press the Play/Pause/Phone button (4) once to end the call.

*Three high pitched beeps will be heard warning when the maximum volume setting has been reached.

Changing the Light Mode

Press the light mode button (5) to select from the following LED light modes:

Continuous colour changing lights
Sound to light colour changing mode – the lights change colour in time with the music.
White night light.
Press the light mode button again to turn the lights off.

Care and Use of your Speaker

Always disconnect the Speaker from the USB charging supply before cleaning.
Clean outside of the Speaker with a clean damp cloth. Never clean with harsh or abrasive cleaners.
Do not submerge the Speaker in water or any other liquids.

Technical Specification

Model Number	AVS1424
Power Supply/Charger	DC 5V @1A
Total audio output power	2x 3W
Audio Frequency Response	100Hz – 20Khz
Unpacked Weight	Approx. 600gs
Dimensions (Approx.)	Approx. 85 mm (dia.) x 220mm (h)
Operation temperature	0°C to + 40°C
Built in Battery type	Lithium Ion, 1800 mAh
Bluetooth Frequency Range	2402 - 2480MHz
Bluetooth Transmission power	-3.325dBm
This product conforms to Radio Equipment Directive 2014/53/EU

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed. These instructions should be saved for future reference:

Read and familiarise yourself with all operating instructions before using this Speaker.
Before plugging your unit into the USB supply, visually check that the unit is intact and has not suffered any transit damage.
Check that the voltage indicated on the data plate corresponds with that of the local network before connecting the appliance to the mains power supply.
Always use this appliance on a solid, level, non-flammable surface.
Ensure that there is clearance of at least 100mm (4 Inches) minimum around the Speaker for sufficient ventilation.
Ensure that the ventilation openings are not covered with items, such as newspapers, table-cloths, curtains, etc.
No naked flame sources, such as lighted candles, should be placed on the Speaker.
Do not position the Speaker close to sources of heat such as radiators, heaters, other electronic equipment, etc.
The Speaker shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
Do not immerse the Speaker or its supply in water or any other liquids.
Do not leave the Speaker unattended during use.
Do not leave the Speaker unattended whilst connected to a USB supply.
Close supervision is required when using this Speaker near children.
Never leave this Speaker within reach of children.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
Children of less than 3 years should be kept away unless continuously supervised.
Do not use this Speaker outdoors.
It is imperative to unplug the power supply after the Speaker has been used, before it is cleaned and whilst being repaired.
Repairs to electrical appliances should only be performed by qualified personnel. Improper repairs may place the user at serious risk.
Do not operate this appliance after a malfunction or after being dropped or damaged in any way.
Do not allow the USB cable to hang over sharp edges or come in contact with hot surfaces.
Do not run the USB charging cable under carpets, rugs, etc.
This product is intended for household use only and should not be used for industrial purposes.
Do not use any accessories or attachments with this product other than those supplied or recommended by supplier.
Do not use this product for anything other than its intended use.
Do not push objects into any openings as damage to the product and/or electric shock may occur.
