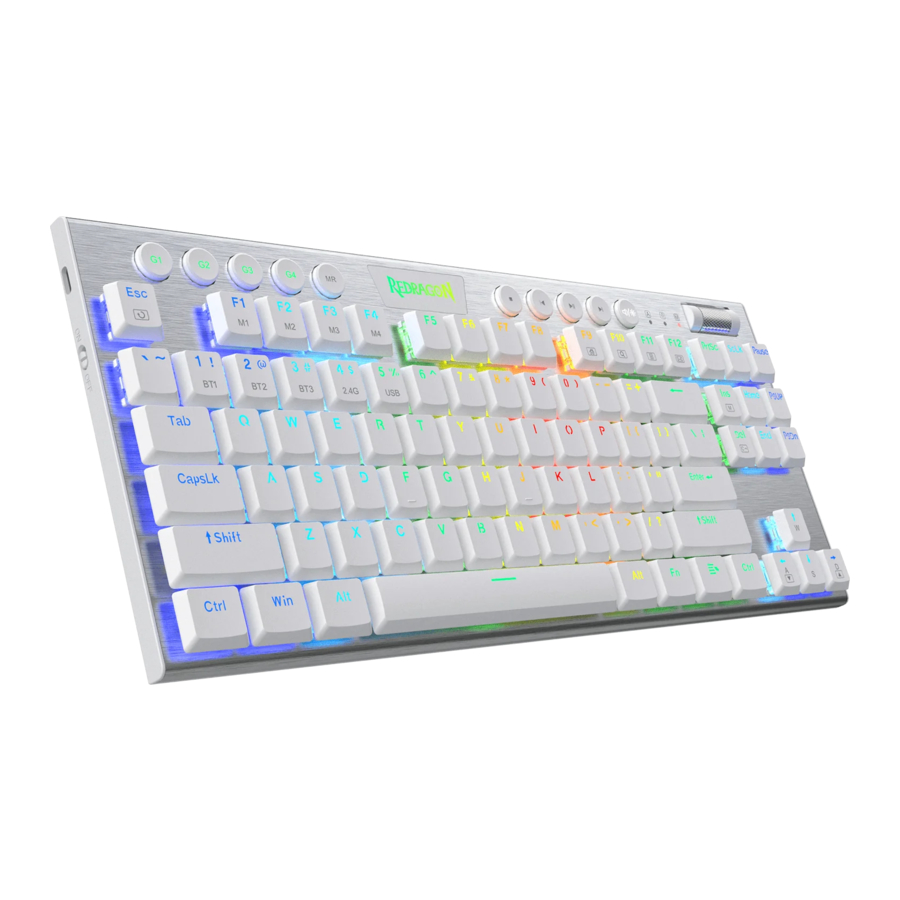

Redragon K621 Horus TKL - Wireless RGB Mechanical Gaming Keyboard Manual

1. Within guaranty period, repair is guaranteed for failure due to electrical circuit problems. Man-made damages, such as disassembly, hard impacts, submersion into water, plugging into improper current or voltage, and damage caused by natural disasters such as fire, flood, or earthquake are not included.
2. Consumable parts (such as foot stick) and spare parts replacement are not included in our warranty.
3. Please fill out the warranty card. Warranty card is valid with the stamp of the retailer.
4. This warranty card will not be reissued if lost. Please keep it in a safe place.

OS support

Windows XP/Vista/Win 7/Win 8/Win 10/Mac OS

How to connect the keyboard with a computer

Wired Connection

Slide the ON/OFF switch on left side of the keyboard to OFF.

Take out the USB A to USB Type C cable in the package and connect the keyboard with your computer, Press FN+5(USB) key, the LED marked with M twinkle in 5 times indicated the connecting successful.

The computer will recognize and configure the keyboard automatically.

Once the keyboard is powered up, charging begins. The LED marked with M lights on red. It will turn to white when keyboard is fully recharged.

2.4G Wireless Connection

1. Slide the ON/OFF switch on left side of keyboard to ON.
2. Press [FN]+[4] for about 3 seconds, the LED marked with M flashes quickly in green, plug the USB receiver into any available USB port on your computer within 20 seconds. The computer will recognize and configure the keyboard automatically.
3. The indicator will flash on Red when the battery is low. Please recharge the keyboard in time by plug type C cable into computer or it will turn off automatically soon, Please note LED marked with M will be light on Red while charging, it turn to Green when charging completed( In 2.4g connecting mode).

Bluetooth Connection

1. Slide the ON/OFF/BT switch on left side of keyboard to ON.
2. Press [2]/[3] for other Bluetooth devices), the LED marked with M flashes in blue (or cyan/magenta for the others).
3. Turn on Bluetooth and scan for available devices on your computer or smart phone. It will find "BT3.0Keyboard or BT5.0 KB" device. Select one of them to get connected with it automatically.
4. The indicator will flash in Red when the battery is low. Please recharge the keyboard in time by plug type C cable into computer or it will turn off automatically soon, please note LED marked with M will be light on Red while charging, it turn to cyan/magenta when charging completed (In Bluetooth connecting mode).

Function Introduction

1. With standard USB and 2.4G/BT connections, the keyboard can be used on computers without any software or driver installation.
2. There are 20 backlight effects.
3. Commands of key combinations with [FN] key.

[FN]+[lns]: Change backlight mode. There are 20 backlight effects.

[FN]+[Del]: Change back light color.

[FN] + [←]: Slow down the running speed of backlight.

[FN] + [→]: Add up the running speed of backlight.

FN+[TAB: ]Turn the backlight to white.

[FN] + [Win]: Disable or enable the [Win] key.

[FN] + [1]: Select Bluetooth device one (for Bluetooth connection).

[FN] + [2]: Select Bluetooth device two (for Bluetooth connection).

[FN] + [3]: Select Bluetooth device three (for Bluetooth connection).

[FN] + [4]: Change to 2.4G wireless connection. Press and hold the [FN]+[4] for 3 seconds to pair the keyboard with its receiver.

[FN] + [5]: Switch to Wired connection.

[FN] + [ESC]: Set the keyboard to default setting.

[FN] +[W]: Swapping ASDW key to Arrow key

Scroll button function

Scroll button is place on right up corner of keyboard for volume adjustment and keyboard backlight brightness adjustment function.

Backlight brightness adjustment: Press key, it is light on White color, Scroll button can switch in different brightness level.

Volume adjustment: Press keythe key light's OFF, scroll button can be switching the volume level.

Multimedia function on F9-F12

FN+9: Browser

FN+10: Research

FN+11: Calculator

FN+12: E-mail

Shortcut key function

Stop

Previous track

Next track

Play / Pause

Macro recording function

There are 4 profiles keys from M1 to M4, each profile can assign with 4 macro keys from G1 to G4, total 16 group macro recording.

1. Press FN+(F1 -F4) key to set a profile group, the key lights ON.
2. Press MR key (MR key lights ON), then press G key (G1/G2/G3/G4), the key lights ON.
3. Record the desired keys.
4. Press MR key to complete recording (MR key lights OFF).
   For example: M1→MR→G1→ABC→MR

How to play Macro

1. Choose the profile group by press M key from M1 to M4.
2. Press the Macro key from G1 to G4.
   For example: M1→ G1 (ABC).

How to delete Macro

1. Choose the profile group by press M key from M1 to M4 (The key lights ON).
2. Press MR key (MR key lights ON).
3. Double press G keys from G1 to G4 (The key lights OFF).
4. Press MR key to save (MR key lights OFF).

How to recharge the keyboard

Find the USB A to USB type C cable in the packaging, plug the keyboard and connect it with computer for charging, the LED indicator(M) of keyboard will be turn to red. Remark: The LED indicator (M) will turn to red when keyboard is out of battery.

FAQ

1. If the keyboard doesn't respond, please check if the keyboards USB cable is correctly inserted into the corresponding USB port on the computer, or try another USB port on the computer.
2. If you spill liquid on the keyboard, please remove keyboards USB cable from the computer immediately. Wipe up excess liquid and put the keyboard in a warm place (for instance, under a lamp) to let the keyboard dry naturally before using again.
