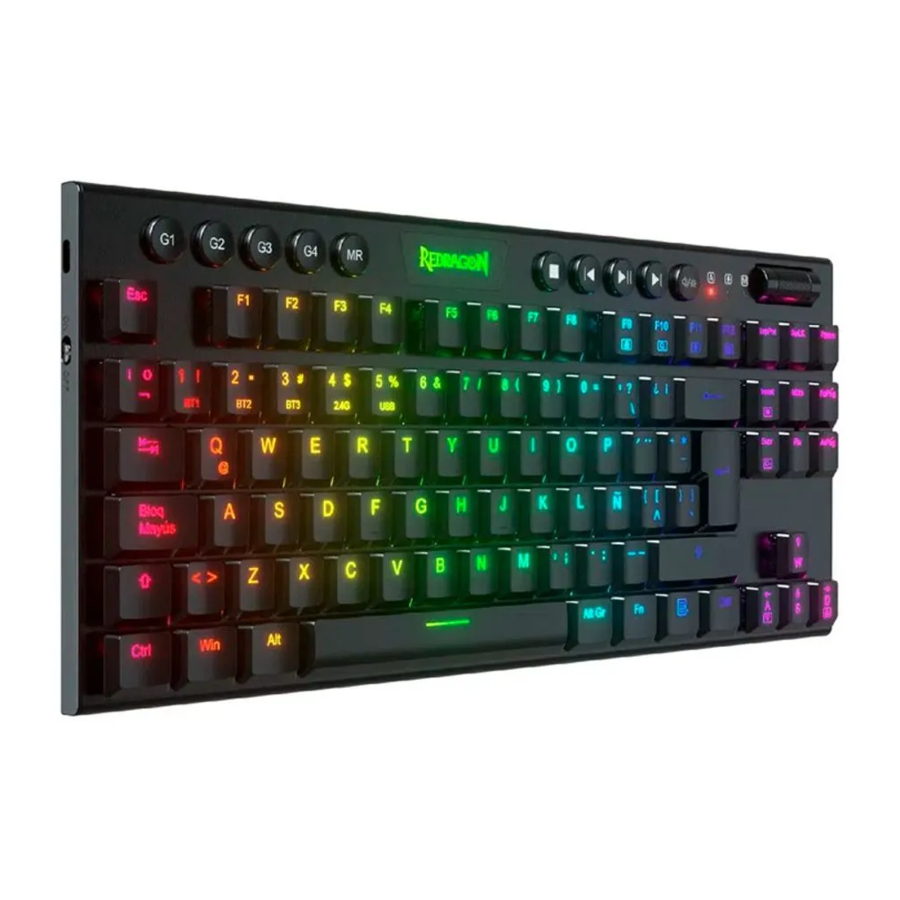

Redragon K622 Horus TKL RGB - Wired Mechanical Keyboard Manual

OS support

Windows XP/Vista/Win 7/Win 8/Win 10/Mac OS

1. Plug and play, no need software.
2. Keyboard interface: USB full speed

Function Introduction

1. FN+INS for 20 backlight effects.
2. Commands of key combinations with [FN] key
   [FN] + [lns]: Change backlight mode. There are 20 backlight effects.
   [FN] + [Del]: Change back light color.
   [FN] + [ ]: Slow down the running speed of backlight.
   [FN] + [ ]: Add up the running speed of backlight.
   [FN] + [TAB]: Turn the backlight to white.
   [FN] + [Win]: Disable or enable the [Win] key.
   [FN] + [ESC]: Set the keyboard to default setting.
   [FN] + [W]: Swapping ASDW key to Arrow key

Scroll button function

Scroll button is place on right upcorner of keyboard for volume adjustment and keyboard backlight brightness adjustment function.
Backlight brightness adjustment: Press key, it is light on White color, Scroll button can switch in different brightness level.
Volume adjustment: Press key, the key light's OFF, scroll button can be switch the volume level.

Marco profile key (M key) on F1-F4
FN+F1=M1
FN+F2=M2
FN+F3=M3
FN+F4=M4

Multimedia function on F9-F12

FN+9: Browser
FN+10: Research
FN+11: Calculator
FN+12: E-mail

Shortcut key function

Previous track
Next track
Play/Pause
Stop

Macro recording function

There are 4 profiles keys from M1 to M4, each profile can assign with 5 macro keys from G1 to G5, total 20 group macro recording.

1. Press FN+(F1-F4)key to set a profile group, the key lights ON.
2. Press MR key (MR key lights ON),then press G key (G1/G2/G3/G4/G5),the key lights ON.
3. Record the desired keys.
4. Press MR key to complete recording (MR key lights OFF).

For example: M1 MR G1 ABC MR

How to play Macro

1. Choose the profile group by press M key from M1 to M4.
2. Press the Macro key from G1 to G5.

For example: M1 + G1 (ABC).

How to delete Macro

1. Choose the profile group by press M key from M1 to M4 (The key lights ON).
2. Press MR key (MR key lights ON).
3. Double press G keys from G1 to G5 (The key lights OFF).
4. Press MR key to save(MR key lights OFF).

FAQ

1. If the keyboard doesn't respond, please check if the keyboards USB cable is correctly inserted into the corresponding USB port on the computer, or try another USB port on the computer.
2. If you spill liquid on the keyboard, please remove keyboards USB cable from the computer immediately. Wipe up excess liquid and put the keyboard in a warm place (for instance, under a lamp) to let the keyboard dry naturally before using again.
