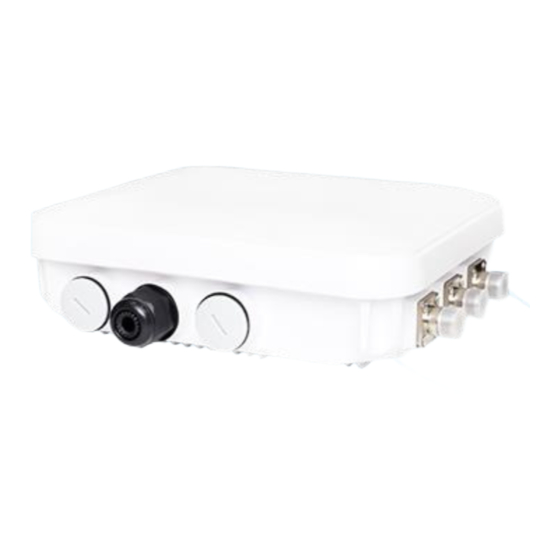

- Page 1 AP(NR)530X User Manual Outdoor Wi-Fi6 AX7800 AP User Manual AP530X Series V2.0 Be Honest & Do Best Your Trustworthy Smart Industrial IoT Partner pusr.com...
-
Page 2: Table Of Contents
3.6. Login settings ..........................- 18 - 3.7. Client list ............................- 19 - 3.8. Software upgrading ........................- 20 - 3.8.1. Firmware upgrading ......................- 20 - 3.8.2. Backup ..........................- 21 - 3.8.3. Time & Date ........................... - 21 - pusr.com - 2 -... - Page 3 3.8.5. Reset to factory setting ......................- 22 - 3.9. System log ............................- 22 - 4. Warranty ..............................- 23 - 5. Contact Us ..............................- 23 - 6. Disclaimer ..............................- 24 - 7. Revision History ............................- 24 - pusr.com - 3 -...
-
Page 4: Introduction
Set WAN/LAN port as WAN to enable NR530X use the landline internet from WAN, and 4G/5G connection ⚫ works as a backup to provide a sustained and reliable internet connection for you. Automated failover/failback back up among Ethernet, Cellular and Wi-Fi. ⚫ Multiple SSID. ⚫ 1.3. Specification Table 1. Parameters table Mobile(Optional) pusr.com - 4 -... - Page 5 Flash:SPI NAND 128MB + SPI NOR 32MB Memory RAM:512MB DDR3L SDRAM 2.4 GHz: IEEE802.11b/g/n/ax Wi-Fi Standards 5.8 GHz: IEEE 802.11a/n/ac/ax 2.4 GHz(2.412GHz - 2.484GHz) Frequency 5 GHz(5.15GHz～5.85GHz) 2.4GHz: 2 × N-K type connectors Antennas 5GHz: 4 × N-K type connectors pusr.com - 5 -...
- Page 6 48V PoE input over WAN Power ≤18W Consumption Standard IEEE 802.3at standard Physical Characteristics Housing Metal Dimension 263.6*198.46*82mm(L*W*H) Installation Wall or Bracket mounting Operating -40℃ ~ +70℃ Temperature Storage -40℃ ~ +85℃ Temperature Ingress IP67 Protection pusr.com - 6 -...
-
Page 7: Button & Indicator
1.4. Button & Indicator Table 2. Button & Indicator Item Description WPS button Holding for 5s to reset to factory settings. Blue: Can access Internet successfully. Indicator Red: Can’t access Internet successfully. 1.5. Dimension Unit： mm pusr.com - 7 -... -
Page 8: Get Started
You can test whether the network is connected by ping 192.168.1.1. Figure 2. Ping command Enter the default IP address of the AP 192.168.1.1 in the browser, and the browser will navigate to login page. The username and password are both admin. pusr.com - 8 -... -
Page 9: Briefs Introduce Of The Webpage
The left column is divided into 9 menu pages: System status, mobile network, Internet accessing settings, WLAN settings, LAN settings, Login settings, client list, upgrade and system log. There are three auxiliary options in the upper right corner: PUSR cloud, Luci, language, as shown in the following figure. - Page 10 AP(NR)530X User Manual Figure 5. Router mode Figure 6. Repeater mode pusr.com - 10 -...
-
Page 11: Mobile Network
Figure 7. AP mode information 3.2. Mobile network This function block displays the basic information of mobile network, including: SIM information, 5G model information, 5G band, 4G LTE band, 3G WCDMA band. Figure 8. Mobile network pusr.com - 11 -... -
Page 12: Internet Accessing Settings
In this function block, users can implement WAN/LAN switching, and can monitor whether the Ethernet port is connected to a device. Figure 10. Ethernet port settings 3.3.3. WAN settings On this page, users can set parameters of WAN port to get access to Internet, including DHCP client, static IP, pusr.com - 12 -... -
Page 13: Wireless Repeater
Click <SCAN>, it will display the Wi-Fi SSID nearby, check the needed SSID, enter the password, select the needed frequency, check “Turn on”， then click “Apply”. Figure 12. Wireless repeater settings 3.3.5. 5G AT To get information or settings of 5G module via sending AT command. pusr.com - 13 -... -
Page 14: Wlan Settings
Enter the APN of the SIM card. Pin code If a PIN code has been set on the card, please enter the correct PIN code. 3.4. WLAN settings It includes 3 parts in this function block: 2.4G settings, 5.8G settings, Signal selecting. pusr.com - 14 -... -
Page 15: G Settings
Length: 8~32, it can be characters and numbers. Password Users can leave it blank, it will open to all users. Default：www.pusr.com Wi-Fi enable Turn on / turn off the Wi-Fi function. Turn on / turn off the SSID. After enabling this function, users will not be able to Hiding SSID detect the SSID. -
Page 16: 5G1 Settings
Length: 8~32, it can be characters and numbers. Password Users can leave it blank, it will open to all users. Default：www.pusr.com Wi-Fi enable Turn on / turn off the Wi-Fi function. Turn on / turn off the SSID. After enabling this function, users will not be able to Hiding SSID detect the SSID. -
Page 17: 5G2 Settings
Length: 8~32, it can be characters and numbers. Password Users can leave it blank, it will open to all users. Default：www.pusr.com Wi-Fi enable Turn on / turn off the Wi-Fi function. Turn on / turn off the SSID. After enabling this function, users will not be able to Hiding SSID detect the SSID. -
Page 18: Lan Network Settings
After enabling DHCP, the AC200/1000 can assign IP addresses to terminal DHCP service devices. The IP addresses start from the “initial value” and can be allocated up to the “maximum number“set. 3.6. Login settings This function is used to change the login password of a webpage. pusr.com - 18 -... -
Page 19: Client List
DHCP service, as shown in the following figure. Figure 5. DHCP list Wireless clients: It displays the clients connected to the AP device via wireless. Click “Refresh” to update the latest client list. Figure 6. Wireless clients pusr.com - 19 -... -
Page 20: Software Upgrading
Figure 7. IP binding 3.8. Software upgrading This functional block includes 5 submenus: [Firmware Upgrade], [Backup/Restore Configuration], [Date/Time], [Restart], and [Restore Factory Settings]. 3.8.1. Firmware upgrading Select firmware file-> Click upgrade Figure 8. Firmware upgrading online pusr.com - 20 -... -
Page 21: Backup
Click <Browse> to select the configuration file. Click <Import Configuration>, and in the Import backup file prompt box, click <OK> to upload the settings to AC200/1000 and restart. 3.8.3. Time & Date Set the time and date of the AP520X. pusr.com - 21 -... -
Page 22: Reboot
AP(NR)530X User Manual Figure 11. Time&Date 3.8.4. Reboot Reboot the AP device. Figure 12. Reboot 3.8.5. Reset to factory setting Reset to factory settings. Figure 13. Reset to factory settings 3.9. System log To check the system log. pusr.com - 22 -... -
Page 23: Warranty
4. Warranty 5. Contact Us Jinan USR IOT Technology Limited Address : Floor 12 and 13, CEIBS Alumni Industrial Building, No. 3 Road of Maolingshan, Lixia District, Jinan, Shandong, China Official website:https://www.pusr.com Official shop:https://shop.usriot.com Technical support: http://h.usriot.com/ Email : sales@usriot.com pusr.com... -
Page 24: Disclaimer
USR IoT and/or its affiliates do not make any commitment to update the information contained in this document. 7. Revision History Version Date Author Description V1.0.0 2023-11-17 Established V1.0.1 2024-01-29 May Liu Translation pusr.com - 24 -... - Page 25 AP(NR)530X User Manual Official Website: www.pusr.com Official Shop: shop.usriot.com Technical Support: h.usriot.com Inquiry Email: inquiry@usriot.com Skype & WhatsApp: +86 13405313834 关注有人微信公众号 登录商城快速下单 Click to view more: Product Catalog & Facebook & Youtube pusr.com...
