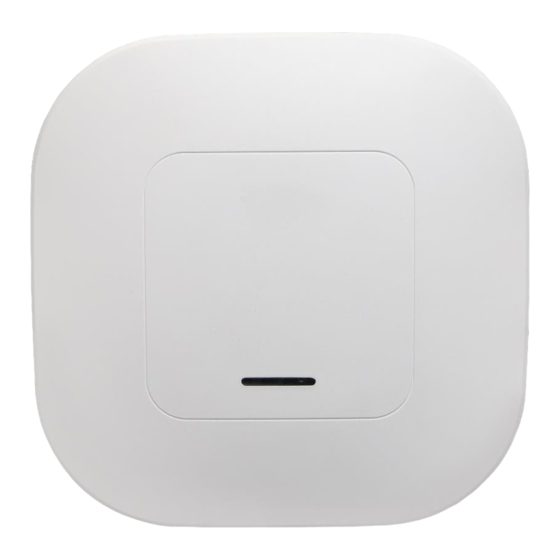

- Page 1 AP(NR)310i User Manual Wi-Fi6 AX3000 User Manual AP310i Series V2.0 Be Honest & Do Best Your Trustworthy Smart Industrial IoT Partner pusr.com...
-
Page 2: Table Of Contents
3.5. LAN network settings........................- 18 - 3.6. Login settings ..........................- 18 - 3.7. Client list ............................- 19 - 3.8. Software upgrading ........................- 20 - 3.8.1. Firmware upgrading ......................- 20 - 3.8.2. Backup ..........................- 21 - pusr.com - 2 -... - Page 3 3.8.5. Reset to factory setting ......................- 22 - 3.9. System log ............................- 22 - 4. Warranty ..............................- 23 - 5. Contact Us ..............................- 23 - 6. Disclaimer ..............................- 24 - 7. Revision History ............................- 24 - pusr.com - 3 -...
-
Page 4: Introduction
⚫ Set WAN/LAN port as WAN to enable NR310i use the landline internet from WAN, and 4G/5G connection works as a backup to provide a sustained and reliable internet connection for you. ⚫ Automated failover/failback back up among Ethernet, Cellular and Wi-Fi. ⚫ Multiple SSID. pusr.com - 4 -... -
Page 5: Specification
SIM Card 1 x Mini SIM(2FF), Push-push type Wi-Fi Interface 2.4GHz: Qualcomm IPQ5018 (Dual-core ARM Cortex-A53@1GHz) Wi-Fi Chipsets 5GHz: Qualcomm QCN6102 Flash:SPI NAND 128MB + SPI NOR 8MB Memory RAM:512MB DDR3L SDRAM Wi-Fi Standards 2.4 GHz: IEEE802.11b/g/n/ax pusr.com - 5 -... - Page 6 1 x 1Gigabit LAN RJ45, 10/100/1000 Mbps, auto MDI/MDIX Mode Full or Half Duplex (Auto-Sensing) Power Supply Power Input 48V PoE input over WAN Power Consumption Standard IEEE 802.3at standard Physical Characteristics Housing Plastic Dimension 190*190*42mm(L*W*H) Installation Ceiling mounting Operating 0℃ ~ +40℃ Temperature pusr.com - 6 -...
-
Page 7: Button & Indicator
1.4. Button & Indicator Item Description WPS button Holding for 5s to reset to factory settings. Blue: Can access Internet successfully. Indicator Red: Can’t access Internet successfully. 1.5. Dimension Unit： mm Figure 1. Dimension of AP310i pusr.com - 7 -... -
Page 8: Get Started
Connect PC to the LAN port of the AP controller, and set the IP to static IP, such as 192.168.1.101. The IP should be on the same network segment as the AP device. You can test whether the network is connected by ping 192.168.1.1. pusr.com - 8 -... -
Page 9: Brief Introduce Of The Webpage
The left column is divided into 9 menu pages: System status, mobile network, Internet settings, WLAN settings, LAN settings, Login settings, client list, upgrade and system log. There are three auxiliary options in the upper right corner: PUSR cloud, Luci, language, as shown in the following figure. -
Page 10: Configuration And Parameter Details
3. Configuration and parameter details 3.1. System status This interface displays the basic information of the router, including 4 major blocks: system information, WAN port information, LAN port information, WLAN information. The specific information is shown in the figure below. pusr.com - 10 -... - Page 11 AP(NR)310i User Manual Figure 5. Router mode pusr.com - 11 -...
-
Page 12: Mobile Network
Router mode: In this mode, the WAN port supports DHCP client, static IP, PPPoE. For LAN port, it supports DHCP service to assign IP addresses to terminal network devices. AP mode: In this mode, WAN and LAN are bridged together, and DHCP service is turned off. Figure 8. Mode selecting pusr.com - 12 -... -
Page 13: Ethernet Port Setting
MAC clone: Replace the AC's MAC address with this MAC. Figure 10. WAN settings 3.3.4. Wireless repeater Click <SCAN>, it will display the Wi-Fi SSID nearby, check the needed SSID, enter the password, select the needed frequency, check “Turn on”， then click “Apply”. pusr.com - 13 -... - Page 14 AP(NR)310i User Manual Figure 11. Wireless repeater 3.3.5. 5G AT To get information or settings of 5G module via sending AT command. Figure 12. 5G AT 3.3.6. 5G NR Settings of 5G module. pusr.com - 14 -...
-
Page 15: Wlan Settings
Enter the APN of the SIM card. Pin code If a PIN code has been set on the card, please enter the correct PIN code. 3.4. WLAN settings It includes 3 parts in this function block: 2.4G settings, 5.8G settings, Signal selecting. pusr.com - 15 -... -
Page 16: G Settings
Length: 8~32, it can be characters and numbers. Password Users can leave it blank, it will open to all users. Default：www.pusr.com Wi-Fi enable Turn on / turn off the Wi-Fi function. Turn on / turn off the SSID. After enabling this function, users will not be able to Hiding SSID detect the SSID. -
Page 17: Settings
Length: 8~32, it can be characters and numbers. Password Users can leave it blank, it will open to all users. Default：www.pusr.com Wi-Fi enable Turn on / turn off the Wi-Fi function. Turn on / turn off the SSID. After enabling this function, users will not be able to Hiding SSID detect the SSID. -
Page 18: Lan Network Settings
After enabling DHCP, the AC200/1000 can assign IP addresses to terminal DHCP service devices. The IP addresses start from the “initial value” and can be allocated up to the “maximum number“set. 3.6. Login settings This function is used to change the login password of a webpage. pusr.com - 18 -... -
Page 19: Client List
DHCP service, as shown in the following figure. Figure 19. DHCP client Wireless clients: It displays the clients connected to the AP device via wireless. Click “Refresh” to update the latest client list. Figure 20. Wi-Fi clients pusr.com - 19 -... -
Page 20: Software Upgrading
Click on <Refresh> to view the devices that have already been bound. Figure 21. IP binding 3.8. Software upgrading This functional block includes five submenus: [Firmware Upgrade], [Backup/Restore Configuration], [Date/Time], [Restart], and [Restore Factory Settings]. 3.8.1. Firmware upgrading Select firmware file-> Click upgrade Figure 22. Firmware upgrading pusr.com - 20 -... -
Page 21: Backup
Click <Browse> to select the configuration file. Click <Import Configuration>, and in the Import backup file prompt box, click <OK> to upload the settings to AC200/1000 and restart. 3.8.3. Time & Date Set the time and date of the AP(NR)310i. pusr.com - 21 -... -
Page 22: Reboot
Figure 25. Time & Date 3.8.4. Reboot Reboot the AP device. Figure 26. Reboot 3.8.5. Reset to factory setting Reset to factory settings. Figure 27. Reset to factory 3.9. System log To check the system log. pusr.com - 22 -... -
Page 23: Warranty
4. Warranty 5. Contact Us Jinan USR IOT Technology Limited Address : Floor 12 and 13, CEIBS Alumni Industrial Building, No. 3 Road of Maolingshan, Lixia District, Jinan, Shandong, China Official website:https://www.pusr.com Official shop:https://shop.usriot.com Technical support: http://h.usriot.com/ Email : sales@usriot.com pusr.com... -
Page 24: Disclaimer
USR IoT and/or its affiliates do not make any commitment to update the information contained in this document. 7. Revision History Version Date Author Description V1.0.0 2023-11-17 Established V1.0.1 2024-01-29 May Liu Translation pusr.com - 24 -... - Page 25 AP(NR)310i User Manual Official Website: www.pusr.com Official Shop: shop.usriot.com Technical Support: h.usriot.com Inquiry Email: inquiry@usriot.com Skype & WhatsApp: +86 13405313834 关注有人微信公众号 登录商城快速下单 Click to view more: Product Catalog & Facebook & Youtube pusr.com...
