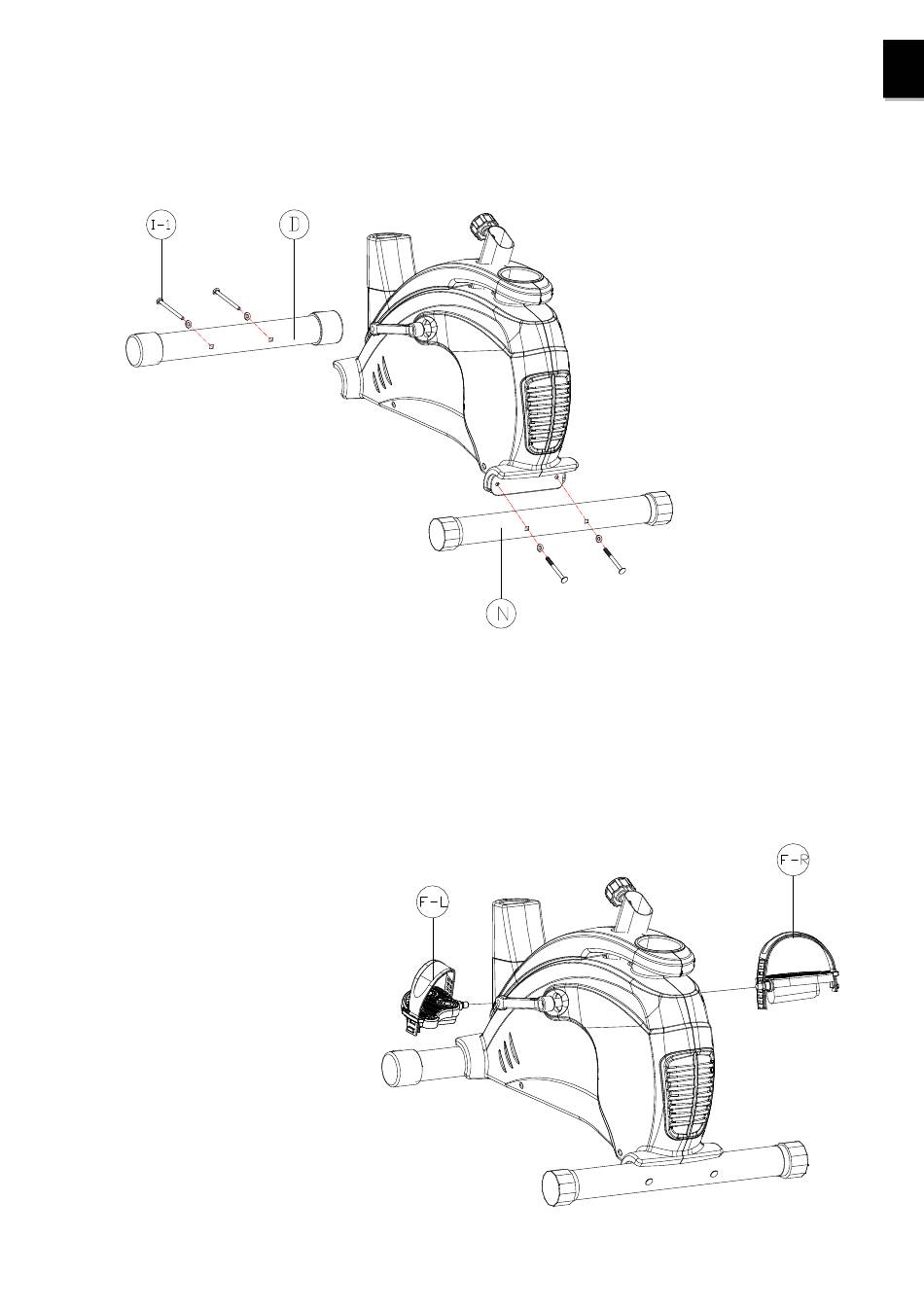

Stage#1
Put up the stabilizers by screwing carriage bolts (I-1) and (C-1)to the frame. The front
stabilizer (D) with roller is at the front and the stabilizer (N) with leveling cap at the rear.
Stage#2
Assemble the Right Pedal (F-R) to the Right Crank Arm on the Base Assembly . Thread
the pedal on the crank arm and securely tighten in place using the pedal wrench. Note: A
clockwise rotation will tighten the pedal to the crank arm and a counterclockwise rotation
will loosen the pedal.
B) Assemble the Left Pedal (F-L) the Left Crank Arm on the Base Assembly. Thread the
pedal onto the crank arm and securely tighten in place using the pedal wrench. Note: A
counterclockwise rotation will
tighten the pedal to the crank
arm and a clockwise rotation
will loosen the pedal.
C) Attach the Pedal Straps
(included with pedals) to each
of the pedals. The straps are
labeled (R) or (L) to correspond
with the right and left pedal.
