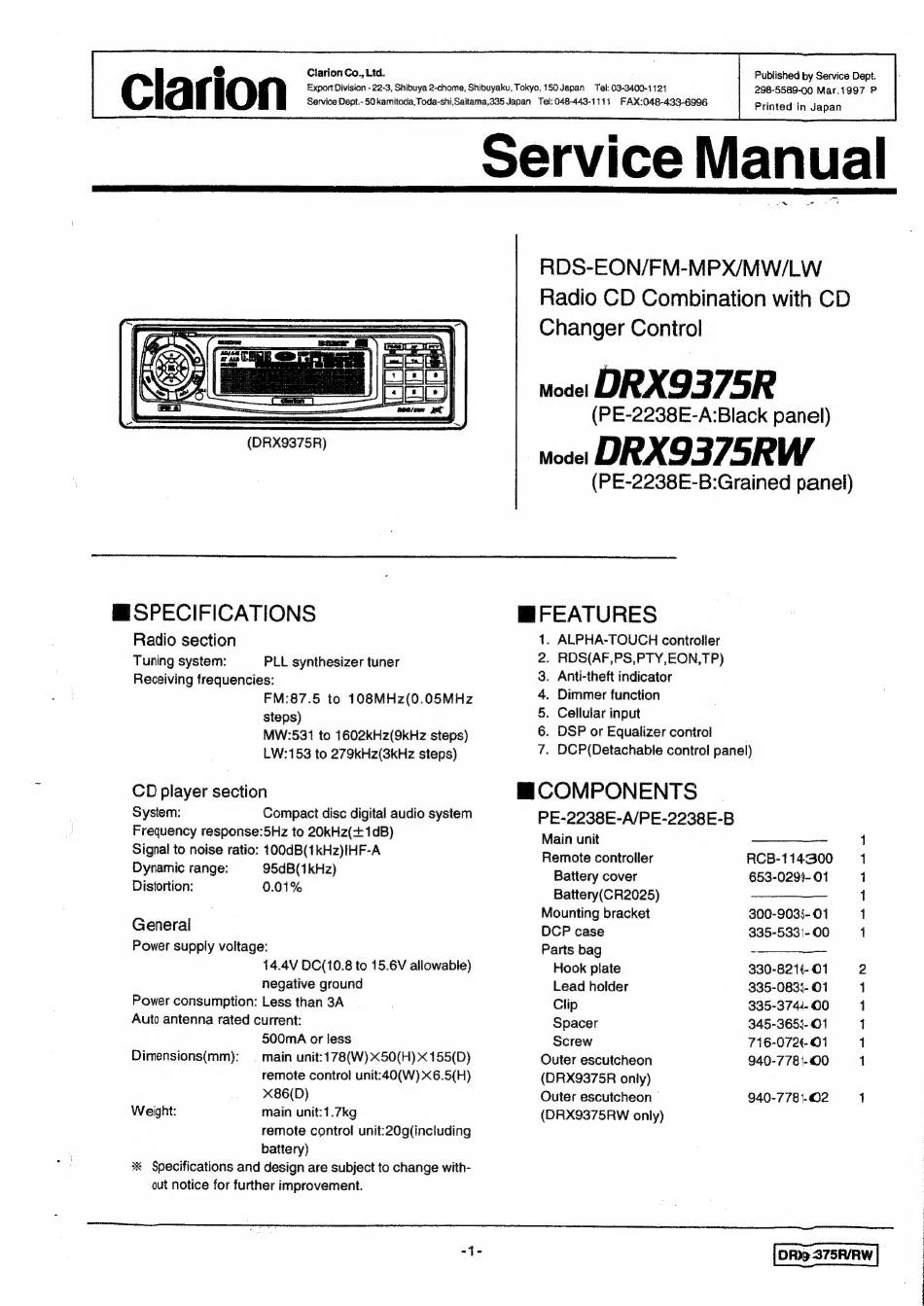

Clarion DRX9375R Service Manual

Clarion Co., Ltd. Published by Service Dept.
e
Export Division - 22-3, Shibuya 2-chome, Shibuyaku, Tokyo, 150Japan
Tel: 03-3400-1121
298-5589-00 Mar.1997 P
Service Dept.- 50 kamitoda, Toda-shi,Saitama,335 Japan
Tel: 048-443-1111
FAX:048-433-6996 Printed in Japan
RDS-EON/FM-MPX/MW/LW
Radio CD Combination with CD
Changer Control

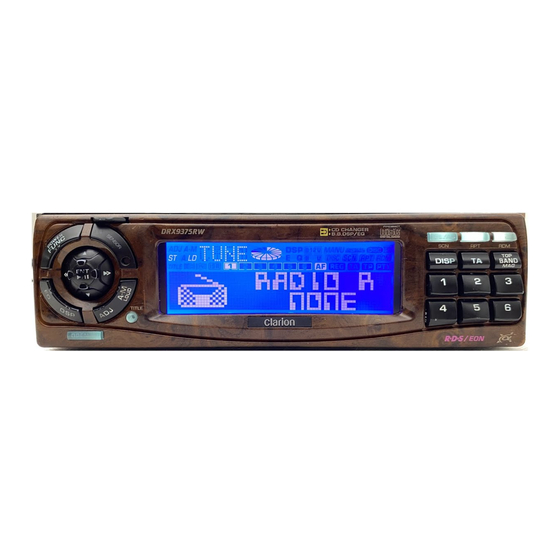

voce! DRX9375R
(PE-2238E-A:Black panel)
(PE-2238E-B:Grained panel)
SPECIFICATIONS M FEATURES
Radio section
1. ALPHA-TOUCH controller
Tuning system:
PLL synthesizer tuner
2. RDS(AF,PS,PTY,EON,TP)
Receiving frequencies:
3. Anti-theft indicator
FM:87.5 to 108MHz(0.05MHz 4. Dimmer function
steps) 5. Cellular input
MW:531 to 1602kHz(9kHz steps) 6. DSP or Equalizer control
LW:153 to 279kHz(3kHz steps) 7. DCP(Detachable control panel)
CD player section @ COMPONENTS
System: Compact disc digital audio system PE-2238E-A/PE-2238E-B
Frequency response:5Hz to 20kHz(+1dB)
Main unit
{
Signal to noise ratio: 100dB(1kHz)IHF-A
Remote controller
RCB-114300 1
Dynamic range: = 95dB(1kHz)
Battery cover
653-0291-O1 1
Distortion:
0.01%
Battery(CR2025)
1
Mounting bracket 300-903}- 01 1
General
DCP case
335-533|-00
1
Power supply voltage:
Parts bag
—_—
14.4V DC(10.8 to 15.6V allowable) Hook plate 330-8214- O1 2
negative ground
Lead holder
335-083i- 01
1
Power consumption: Less than 3A
Clip
335-3744. O00
1
Auto antenna rated current:
Spacer
345-3654- 01 1
500mA or less
Screw
716-072¢-O1 1
Dimensions(mm):
— main unit:178(W)X50(H)
X 155(D) Outer escutcheon
940-7781-00 1
remote control unit:40(W) x6.5(H) (DRX9375R only)
X*86(D) Outer escutcheon 940-778'-02 1
Weight:
main unit:1.7kg
(DRX9375RW only)
remote control unit:20g(including
battery)
** Specifications and design are subject to change with-
out notice for further improvement.
-1- DR) 375R/RW |
