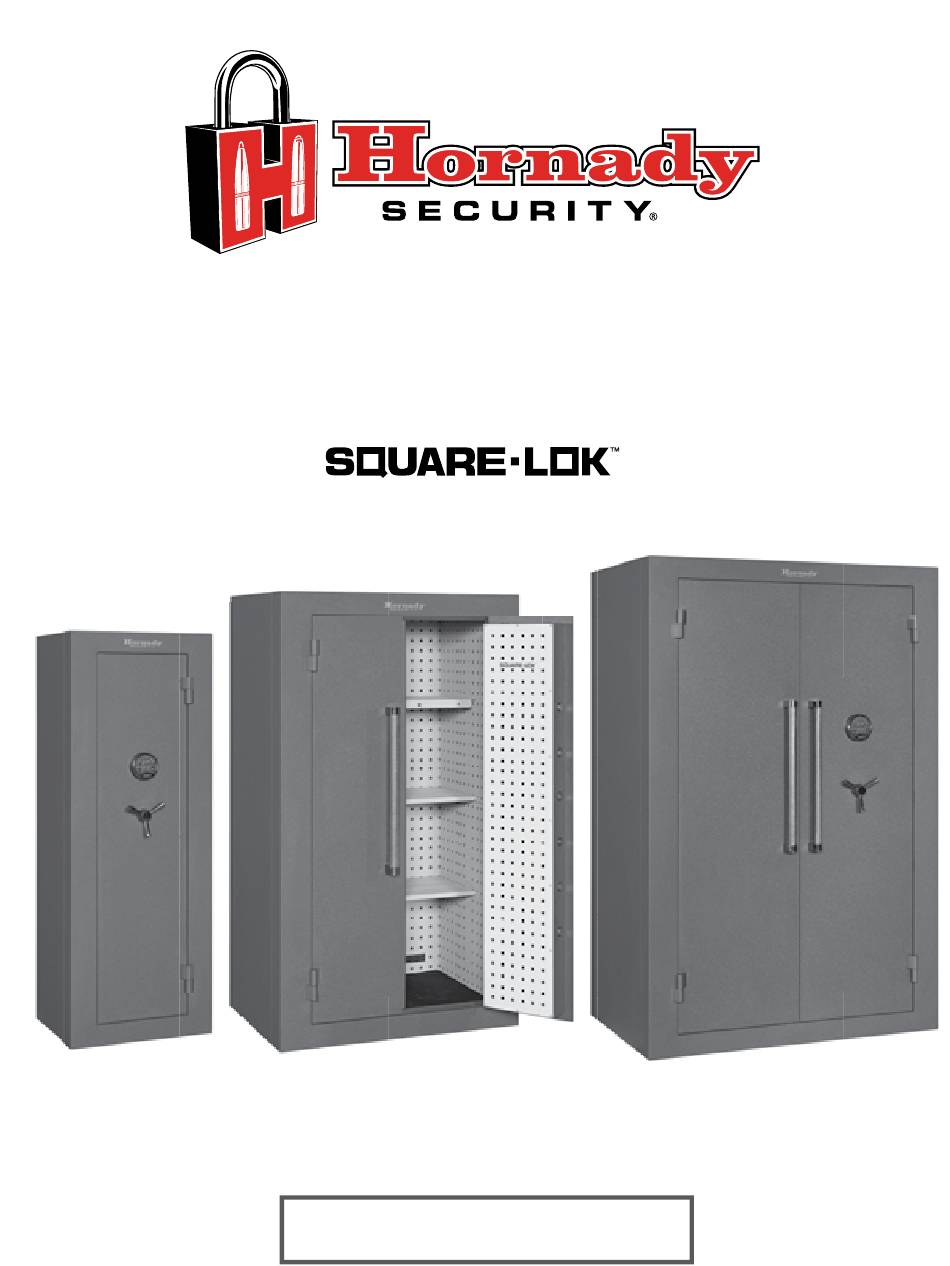

- Page 1 Owner’s Manual Mobilis Safes ™ Featuring Organizing System Item No. 95070 Item No. 95071 Item No. 95072 Instructional videos for Hornady Security ® products are available at hornady.com.
- Page 2 Keep your keys in a secure location at all times. Store your safe in a secure location away from your keys. Hornady Security ®...
-
Page 3: Table Of Contents
Thank you for purchasing a Hornady Security Mobilis Safe. Please read and understand ® ™ all instructions carefully before proceeding with installing and operating your safe and storing valuables inside. If you have any questions along the way please refer to the FAQ and videos at HornadySecurity.com or call us at 1-800-338-3220. - Page 4 SAFE SINGLE DOOR – 95070 MOBILIS ™ Parts List Item No. Description Item No. Qty. Mobilis Accessory Box 770148 Skeleton Key Set (2 keys) SKxxx 1/2" Drive Ratchet Wrench 770044 19mm Socket 770033 M12x1.75 Hex Nut 770032 M12 Washer 770149 Square-Lok Grommets and Screws 970029 Square-Lok Grommet Removal Tool...
- Page 5 Single Door – 95070 Exploded View...
- Page 6 SAFE DOUBLE DOOR – 95071 MOBILIS ™ Parts List Item No. Description Item No. Qty. Mobilis Accessory Box 770148 Skeleton Key Set (2 keys) SKxxx 1/2" Drive Ratchet Wrench 770044 19mm Socket 770033 M12x1.75 Hex Nut 770032 M12 Washer 770149 Square-Lok Grommets and Screws 970029 Square-Lok Grommet Removal Tool...
- Page 7 Double Door – 95071 Exploded View For parts 0 through 12, refer to page 4. Frame Right Left Door Door...
- Page 8 SAFE DOUBLE DOOR MAX – 95072 MOBILIS ™ Parts List Item No. Description Item No. Qty. Mobilis Accessory Box 770148 Skeleton Key Set (2 keys) SKxxx 1/2" Drive Ratchet Wrench 770044 19mm Socket 770033 M12x1.75 Hex Nut 770032 M12 Washer 770149 Square-Lok Grommets and Screws 970029...
- Page 9 Double Door MAX – 95072 Exploded View For parts 0 through 12, refer to page 4. Frame Right Left Door Door...
-
Page 10: Unpacking
UNPACKING THE SAFE • Tools Needed (not included) – Phillips screwdriver, 9V battery • Although modular, some components of the safe are very heavy. Multiple people may be needed to safely lift and move components. Be careful not to pinch or crush fingers and toes. •... - Page 11 Step 3: Before unpacking the door assembly, the doors should be removed from the frame to lighten the weight and make the assembly process safer. To remove the doors, follow the steps below: WARNING: The doors are very heavy and must be handled with caution. Removing the doors must be done very carefully to prevent damage to safe or to self.
-
Page 12: Assembly
ASSEMBLING THE SAFE • Tools Needed – 19mm socket and rachet wrench (included) and Phillips screwdriver (not included) • Although modular, some components of the safe are very heavy. Multiple people may be needed to safely lift and move components. Be careful not to pinch or crush fi ngers and toes. •... - Page 13 Step 3: Assembling Exterior Side Panels Locate the two exterior side panels, the top exterior panel, and the bottom exterior panel. Assemble the four panels together next to the back exterior panel as shown by inserting the bolts on the side exterior panels into the holes in the top and bottom exterior panels.
- Page 14 Step 6: After the front panel has been placed squarely onto the side panels, tighten all nuts with the 19mm socket and wrench. WARNING: Do not over tighten the nuts as it may damage the bolts. Installing the Insulation and Square-Lok Interior Panels ™...
- Page 15 Align the pins in the exterior panels with the holes in the interior panels, then press the interior panels against the exterior panels. Attach the panels using a Phillips screwdriver vand the included M5x12 Pan Head Phillips screws and washer. Note: If the interior panels do not sit tight against the exterior panels, confi...
- Page 16 Connecting Power Supply Receptacle 1. Plug the included 110V cable into the receptacle on the back of the safe (Fig. 1). 2. Plug other end into wall outlet. 3. Turn on power strip located inside the safe by fl ipping switch on power strip. Red light 110V Cable should come on when power is supplied to power strip (Fig.
- Page 17 SAFE PROGRAMMING AND OPERATION Carefully read and understand all instructions supplied with your safe, including supplemental instructions from the lock manufacturer, to properly change and manage all codes. Opening and Closing Your Safe Your factory preset combination code is 1-2-3-4-5-6. This code must be changed to prevent unauthorized access.
- Page 18 Changing Your Combination Code Carefully read and understand all instructions supplied with your safe, including supplemental instructions from the lock manufacturer, to properly change and manage all codes. Your factory preset combination code is 1-2-3-4-5-6. This code must be changed to prevent unauthorized access.
- Page 19 2. Pull out the battery compartment from the bottom of the entry keypad. Remove the battery and replace with a new 9V battery. Make sure to align the positive and negative poles as indicated. 3. Put the battery compartment back into the entrypad Battery Compartment and close the latch.
- Page 20 ANCHORING SAFE TO CONCRETE FLOORS: Tools Needed (not included): • Hammer • 9/16" Socket • Ratchet Wrench • Hammer Drill • 3/8" Concrete Drill Bit Anchoring Instructions: • Place the safe in the desired location. • Remove the bottom interior panel of the safe by lifting up from the back. •...
- Page 21 INSTALLING SQUARE-LOK SHELVES AND ACCESSORIES ™ WARNING! Improper installation or failure to properly secure Square-Lok Shelves to ™ Square-Lok Panels may result in personal injury or property damage. Always ™ secure Square-Lok Shelves to Square-Lok Panels in accordance with product ™...
- Page 22 Installing Square-Lok ™ Mobilis Safe Double Door – No. 95071 ™ Divider Wall Mobilis Double Door (95071) and Double Door MAX (95072) safes include multiple shelf sections designed to be used with a divider wall. 1. Before installing the Divider Wall insert the neoprene fl oor mat onto the fl oor of the safe.
- Page 23 4. Depending on safe model, install two or three nut grommets into the one end of the divider cap. Nut Grommet Divider Cap Divider Cap Nut Grommets Screw Divider Wall 5. Place Divider Cap onto the top of the DividerWall and install the two or three screws through the Divider Wall and into each nut grommet installed into the Divider Cap.
- Page 24 6. Place assembly into safe and secure with a screw into each previously installed nut grommet in the back and side interior walls. Divider Cap / Wall 7. Shelves are composed of multiple Secured in Safe shelf components to create either full or partial shelves.
- Page 25 Assemble the Divider Wall with Divider Support the Divider Support The Divider Wall can be placed anywhere along the back wall to create more space for long gun storage. 1. Before installing the Divider Wall insert the neoprene floor mat onto the floor of the safe.
- Page 26 Installing Square-Lok™ Shelves No. 95780 Mobilis Safe (95070) includes three 9" x 9" shelves that can be installed anywhere inside the safe. Installation: Place top hooks into the holes in the Square- panel, rotate the shelf down so the ™ bottom hooks also enter a hole, and then slide the shelf down to lock into place.
-
Page 27: Care & Maintenance
FREQUENTLY ASKED QUESTIONS I’ve lost my keys. Can I get a replacement? Contact Hornady Security at 800-338-3220 and one of our Customer Service Representatives will assist you. Where can I fi nd the serial number? The serial number is located on the back of the safe. -
Page 28: Warranty
SAFE, OR ANY COMPONENT PART THEREOF. IN ™ THE EVENT THAT THE FOREGOING REMEDY FAILS OF ITS ESSENTIAL PURPOSE, THE LIABILITY OF HORNADY SECURITY ® PURCHASER SHALL NOT, IN ANY EVENT, EXCEED THE ACTUAL PURCHASE PRICE OF THE NON-CONFORMING GOODS; AND Limitation on the Nature of Damages.
