V-TAC VT-1049 Instruction Manual

TECHNICAL DATA
MODEL
SKU
WATTS
LUMENS
BEAM ANGLE
INPUT POWER
ADAPTER OUTPUT
[Not included]
IP RATING
BATTERY
BATTERY CAPACITY
CHARGING TIME
WORKING TIME
DIMMABLE TYPE
MATERIAL
UNIT COLOR
CABLE LENGTH
DIMENSION
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these
instructions carefully before starting the installation and keep this manual handy for future reference.
If you have any another query, please contact our dealer or local vendor from whom you have
purchased the product. They are trained and ready to serve you at the best. The warranty is valid for
2 years from the date of purchase. The warranty does not apply to damage caused by incorrect
installation or abnormal wear and tear. The company gives no warranty against damage to any
surface due to incorrect removal and installation of the product. The products are suitable for 10-12
Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This product is
warranted for manufacturing defects only.!
WARNING
1. Please make sure to turn o the power before starting the installation
2. The light source of this luminaire is not replaceable; when the light
source reaches its end of life the whole luminaire shall be replaced.
INSTRUCTION MANUAL

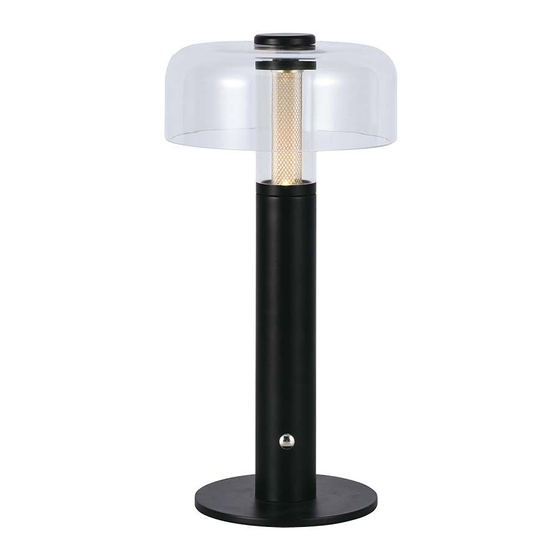

LED TABLE LAMP
VT-1049
7940,7941,7942
7943,7944,7945
1W
100 Lm
300°
5V, 1A
DC:5V, 1A
IP20
Lithium DC, 5V Battery
1800 mAh
2-3 Hours
6-8 Hours
Touch Dimming
Metal, Glass
Black, White, Violet, Anrantium
Jade Green, Sand Brown
1 Meter [Type C]
150x300mm
MULTI-LANGUAGE MANUAL QR CODE
Please scan the QR code to access the manual in
multiple languages.
