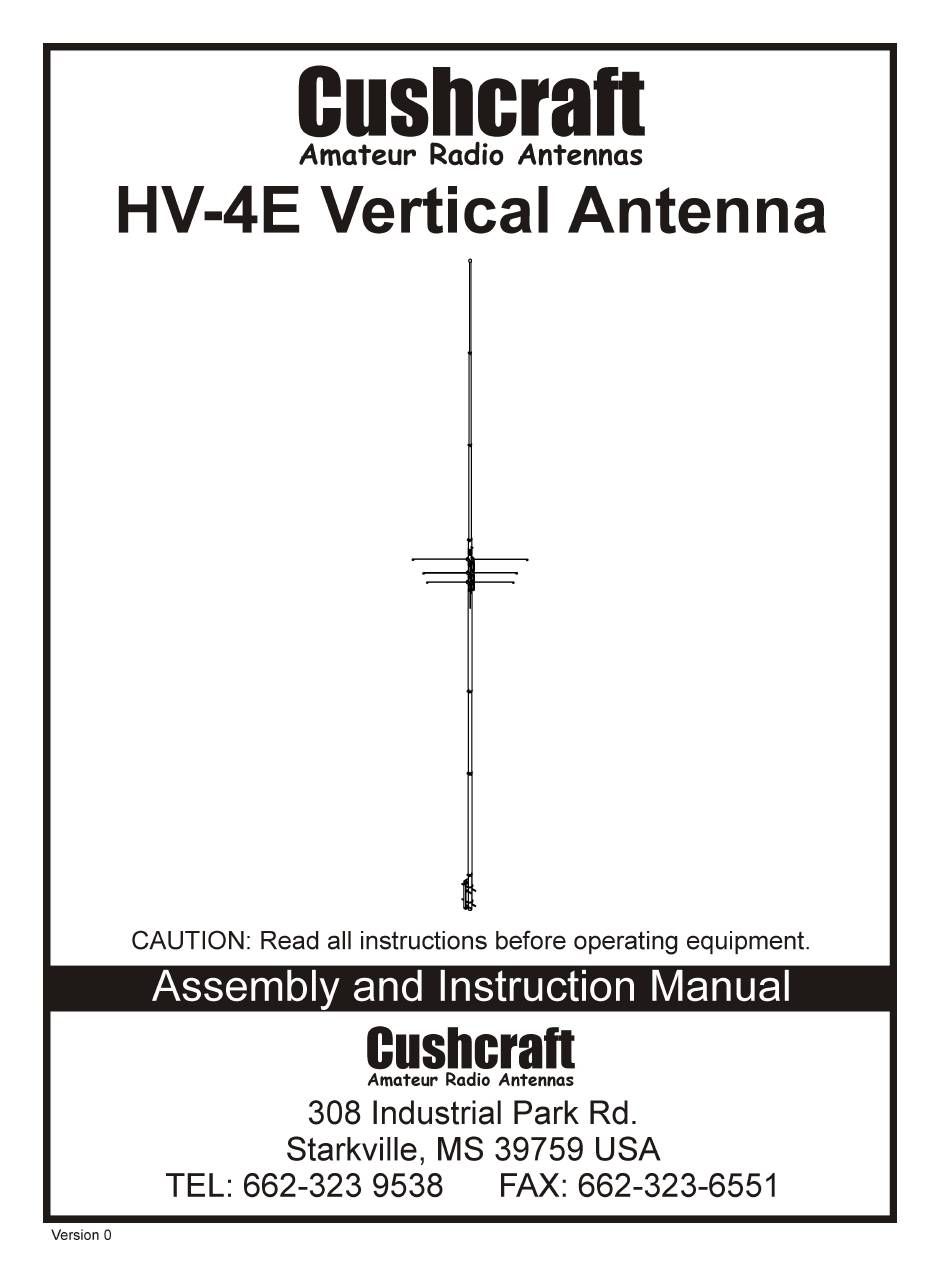

CUSHCRAFT HV-4E Assembly And Instruction Manual

CUSHCRAFT HV-4E Assembly And Instruction Manual

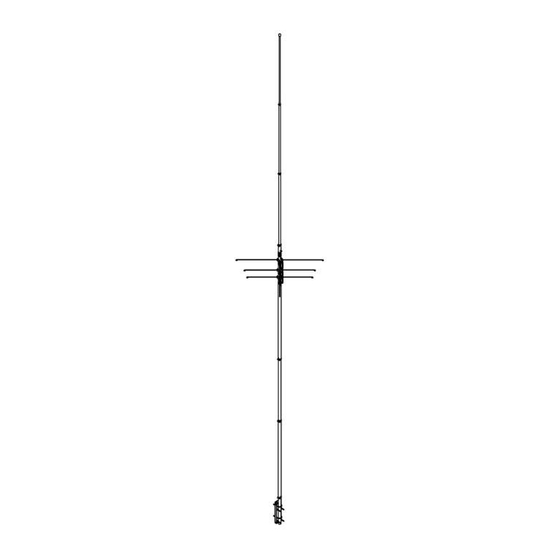

Vertical antenna

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HV-4E and is the answer not in the manual?

Questions and answers

Dallos László
June 26, 2025

miért nem tudom a 28 MHz-es részt beállítani? mindig csak 32-34 MHz -et mutat, hiába próbálom állítani, mintha nem is akarna ott működni. a = MHz sem beállítható igazán, mintha rosszul raktam volna össze, pedig követtem az előírtakat!

Subscribe to Our Youtube Channel

Summary of Contents for CUSHCRAFT HV-4E

  • Page 2: Table Of Contents

    TOOLS AND TIME REQUIRED FOR ASSEMBLY ................... 5 SAFETY PRECAUTIONS:......................... 5 Included Parts, Kits, And Assemblies ......................6 Kits and Assemblies ..........................6 HV-4E Antenna List by Individual Parts ....................6 Assembly............................... 7 Lower Mast Assembly ..........................7 Lower Mast Attachment..........................7 Upper Mast Assembly ..........................
  • Page 3: Introduction

    Cushcraft HV4E Vertical Antenna Introduction The HV-4E Vertical Antenna is an economical 18 ft low profile antenna designed to improve operating efficiency and bandwidth on 40M. On 40M the antenna is a center loaded vertical and on 20-10M it is a top loaded vertical.
  • Page 4: Installation

    INSTALLATION The HV-4E was designed as an efficient low profile antenna. The antenna installation MUST be protected with non-metallic fencing to provide personal safety and to prevent antenna damage. The antenna can be installed using the supplied mounting bracket and a suitable ground radial system.
  • Page 5: Tools And Time Required For Assembly

    Cushcraft HV4E Vertical Antenna TOOLS AND TIME REQUIRED FOR ASSEMBLY The estimated assembly time for this antenna is 1 hour. Antenna assembly requires the following hand tools: [ ] 5/16" nut driver [ ] 7/16" open end wrench [ ] large wire cutters (to cut aluminum spokes)
  • Page 6: Included Parts, Kits, And Assemblies

    Loading Coil Assembly 17-HV4E-LC Loading Coil Hardware Kit 17-HV4E-SP Loading Coil Spoke Kit 17-HV4E-MT Mounting Hardware Kit 17-HV4E-MP Antenna Mounting Plate Assembly HV-4E Antenna List by Individual Parts In Kit or Item No. Description Assembly 810-HV4E-8 8" Bent Radial 17-HV4E-SP 810-HV4E-10 10"...
  • Page 7: Assembly

    Cushcraft HV4E Vertical Antenna ASSEMBLY Lower Mast Assembly Using the two mast section A and the mast section B and two 1.25” hose clamps push the section B into one of the section A about 3 inches and tighten down the hose clamp. Slide the other section A onto the other end of the section B and tighten down the hose clamp.
  • Page 8: Upper Mast Attachment

    Cushcraft HV4E Vertical Antenna Slip section D non-slotted end into section C slotted end about 2 inches and clamp with the 0.875” hose clamp (21). Slip section E into section D slotted end about 2 inches and clamp with the 0.875” hose clamp (21).
  • Page 9: Base Assembly

    Cushcraft HV4E Vertical Antenna Base Assembly Assemble the base using the Base Plate (10), four U-Bolts (12), eight ¼” flat washers (13), eight ¼” lock washers (14), and eight ¼-20 nuts. Loosely attach the U-Bolts then slide the fiberglass base insulator (11) into the U-Bolts as shown in the picture and tighten up the U-Bolts holding the fiberglass base insulator.
  • Page 10: Radial Spoke Assembly

    Cushcraft HV4E Vertical Antenna Radial Spoke Assembly Each radial spoke level requires eight 6-32x.375 SS screws (5) and eight 6-32 KEP nuts (6) for a total of 24 of each. For initial assembly the R1 and R2 radial spokes are 14 inches long and the R3 radial spokes are 18 inches long.
  • Page 11: Base Mounting

    Cushcraft HV4E Vertical Antenna Base Mounting The base mount is designed to clamp to a pipe of 1” to 1-1/2” OD. A galvanized water pipe 1” nominal (OD of 1.335”) is ideal for mounting the antenna base. The exact way of mounting the pipe is up to you but it is suggested that a 4 ft piece of 1”...
  • Page 12: Antenna Tuning

    Cushcraft HV4E Vertical Antenna ANTENNA TUNING Tuning of the antenna requires some patience with the trimming of the radial spokes for each band. Checking the results can be done with an SWR meter but it is strongly suggested to use an antenna analyzer because the initial tuning will be outside of the amateur bands and using an analyzer will make tracking changes much easier.
  • Page 13: Tuning The Antenna

    Cushcraft HV4E Vertical Antenna CAUTION: Always start tuning on 40 meters and adjust each band progressively higher in frequency. Adjustment of a lower frequency band will always have the most effect on the next higher frequency band. The tendency of the interaction is that if you move one band higher ALL the other bands move higher, but only very slightly.
  • Page 14: Safety Grounding Considerations

    Cushcraft HV4E Vertical Antenna SAFETY GROUNDING CONSIDERATIONS SAFETY GROUNDING MUST be provided to protect equipment, property, and persons from the hazards of lighting strikes and other weather related electrical discharges. In addition the coaxial cable feeding the antenna should have the shield grounded to eliminate the risk of any indoor equipment failure that would allow hazardous voltages to appear indoors creating a shock hazard.
  • Page 15 Cushcraft HV4E Vertical Antenna NOTES: Version 0 2024 Cushcraft...
  • Page 16 Cushcraft HV-4E Vertical Antenna Version 0 2024 Cushcraft...
