ASSEMBL Y AND INSTALLATION

INSTRUCTIONS

22XB

2 METER OSCAR BOOMER

144-148 MHz

C

O

R

P

O

R

A

T

I

O

N

951449 (10/98)

Table of Contents

Advertisement

Table of Contents

Need help?

Need help?

Do you have a question about the 22XB and is the answer not in the manual?

Questions and answers

Summary of Contents for CUSHCRAFT 22XB

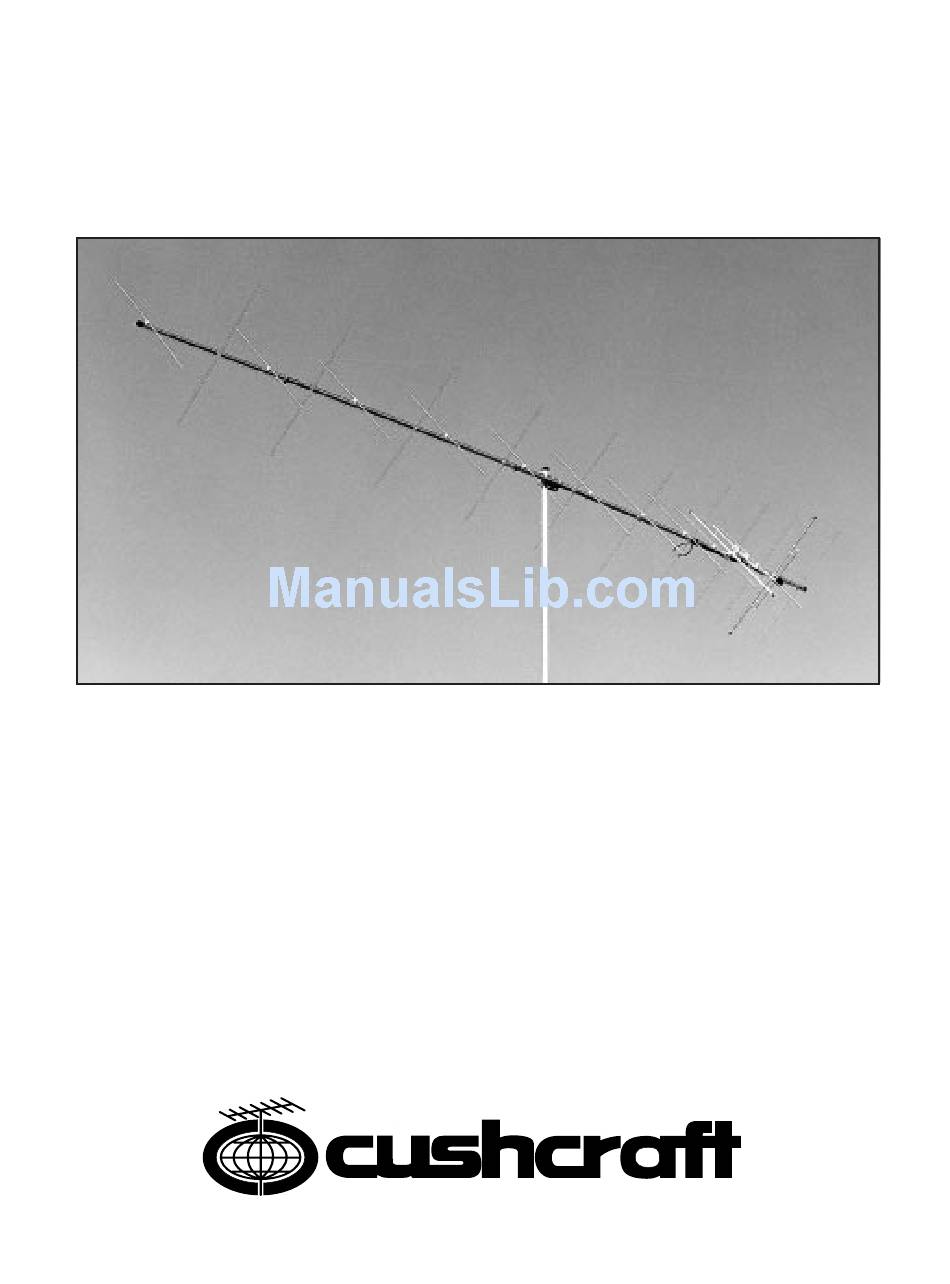

Page 1 ASSEMBL Y AND INSTALLATION INSTRUCTIONS 22XB 2 METER OSCAR BOOMER 144-148 MHz 951449 (10/98)
