IMPORTANT - READ ALL INSTRUCTIONS BEFORE YOU BEGIN
THE INSTRUCTIONS HEREIN SHOULD BE PERFORMED BY A QUALIFIED SERVICE TECHNICIAN.
Some parts inside your appliance have sharp edges. Care must be taken when handling the various
components to avoid personal injury. Wear gloves when handling.
To perform the oven flue replacement, the range will need to be pulled out of its enclosure. Please
make sure to cover the work area and that your surroundings are free of any obstacles.

TOOLS REQUIRED:

Work gloves
Safety glasses
Phillips and Flat-blade screwdriver
5/16" nut-driver or ratchet with 5/16" socket
Plastic pry tool

STEP 1

Unplug the power cord from the outlet and shut off the gas source.

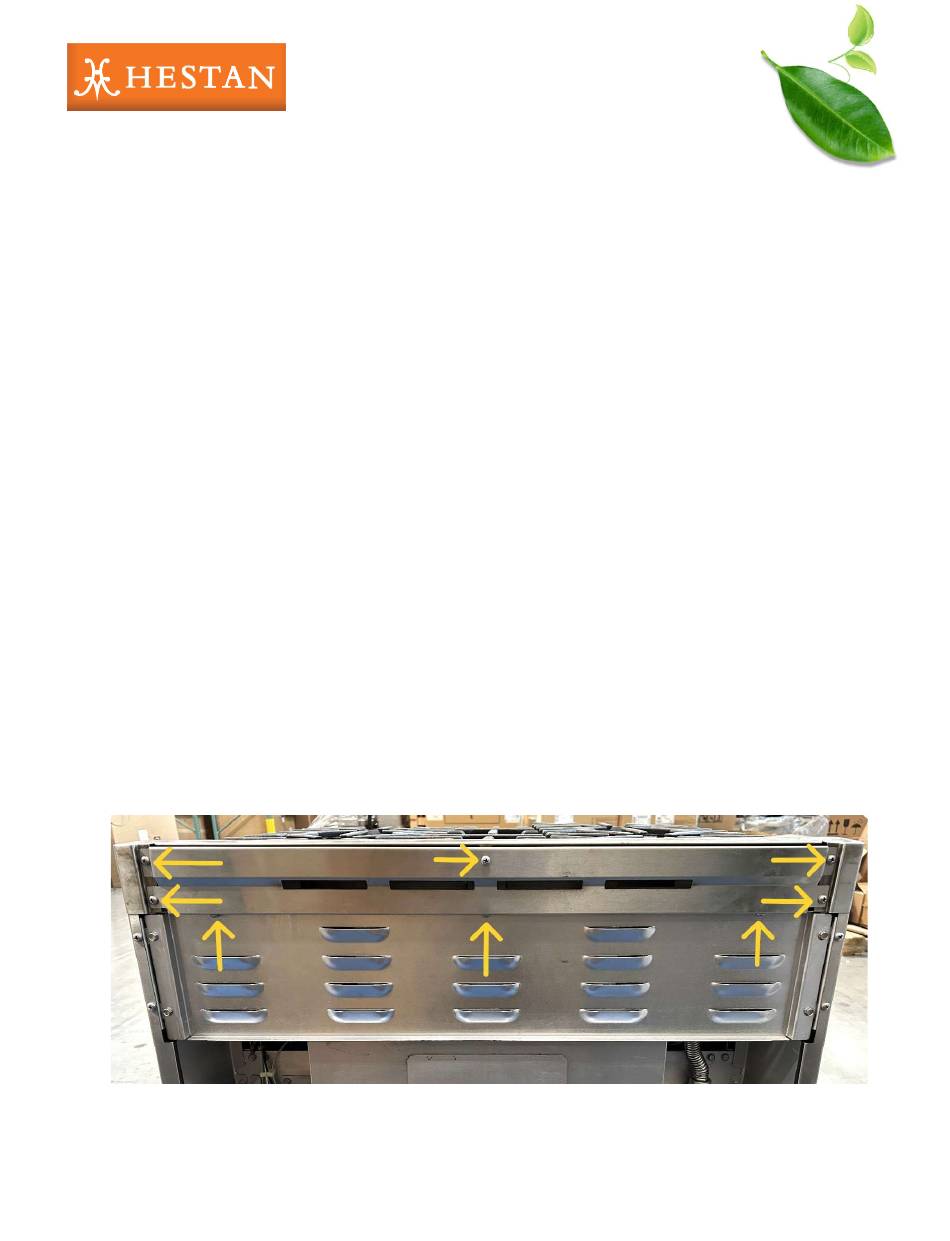

Remove the riser cover by removing eight Phillips screws, as seen below.
SERVICE
INSTRUCTIONS
REPLACEMENT OF OVEN FLUE COVERS
AND FLAME SPREADERS
ALL GAS RANGE MODELS: KRG30x, KRG36x, KRG48x
©2023 Hestan Commercial Corporation
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KRG30 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for hestan KRG30 Series

  • Page 1 5/16” nut-driver or ratchet with 5/16” socket Plastic pry tool STEP 1 Unplug the power cord from the outlet and shut off the gas source. Remove the riser cover by removing eight Phillips screws, as seen below. ©2023 Hestan Commercial Corporation...
  • Page 2 SERVICE INSTRUCTIONS (continued) STEP 2 Remove the rear cover by removing four hex head screws using a 5/16” socket. STEP 3 Remove the convection fan cover by removing four hex head screws using a 5/16” socket. ©2023 Hestan Commercial Corporation...
  • Page 3 SERVICE INSTRUCTIONS (continued) STEP 4 Remove two hex head screws holding the outer cover. STEP 5 Grab the outer cover and remove it by pulling it up and away from the assembly. ©2023 Hestan Commercial Corporation...
  • Page 4 KRG30x use kit part# 049527. KRG36x use kit part# 049527. KRG48x use kit part# 049528. STEP 7 For kit part# 049528, install the diverter on the 18” oven exhaust cover using two Phillips screws as seen below. ©2023 Hestan Commercial Corporation...
  • Page 5 Lift the bottom cover and inspect the flame spreader. The flame spreaders should cover the full extension of the bottom cover as seen below. KRG30x Previous Revision New Revision Part# 028695-BK KRG36x Previous Revision New Revision Part# 027129-BK ©2023 Hestan Commercial Corporation...
  • Page 6 Increase the air shutter opening when flame is yellow and decrease it if the flame is too big. Make sure that the orifice points straight to the center of the burner. Adjust the bracket if needed. ©2023 Hestan Commercial Corporation...
  • Page 7 NOTES ©2023 Hestan Commercial Corporation...
  • Page 8 ©2023 Hestan Commercial Corporation...
