Summary of Contents for Boss Audio Systems ISO140

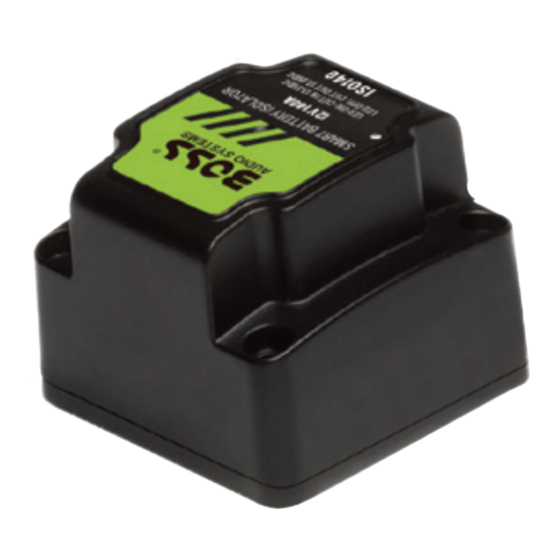

- Page 2 Introduction Congratulations on your purchase, and welcome to BOSS Audio Systems! This smart battery isolator is designed to connect two batteries (start battery and second battery) in your vehicle (e.g. an ATV, UTV or trailer), and allows both batteries to be charged simultaneously from a power source (e.g.
- Page 3 • WARNING: Always consult a professional installer. • Installation must be performed by a professional. Contact our technical support for any installation question. • Use only installation parts provided with the product. Using other mounting methods may void the warranty. •...
- Page 4 (stereo, lights, etc.) START BATT Battery charger SECOND BATT The power source for both batteries can be either your vehicle alternator or ISO140 isolator an optional battery charger Ground installed on the side of the second battery. Second Start battery...
- Page 5 Connect your start battery to the isolator. - Using the supplied red cable (26”/650 mm) with a single lug connector, connect it to the terminal stud marked “START BATT “ on the bottom of the isolator using the attached lug connector. Remember to secure the cable on the stud using a supplied washer and nut.
- Page 6 Select a suitable location that is easily accessible and is close to your start battery and second battery. Using four screw holes on the supplied mounting plate, mark four mounting holes on the mounting surface. Identify two conical holes (countersink) in the diagonal position on the mounting plate.
