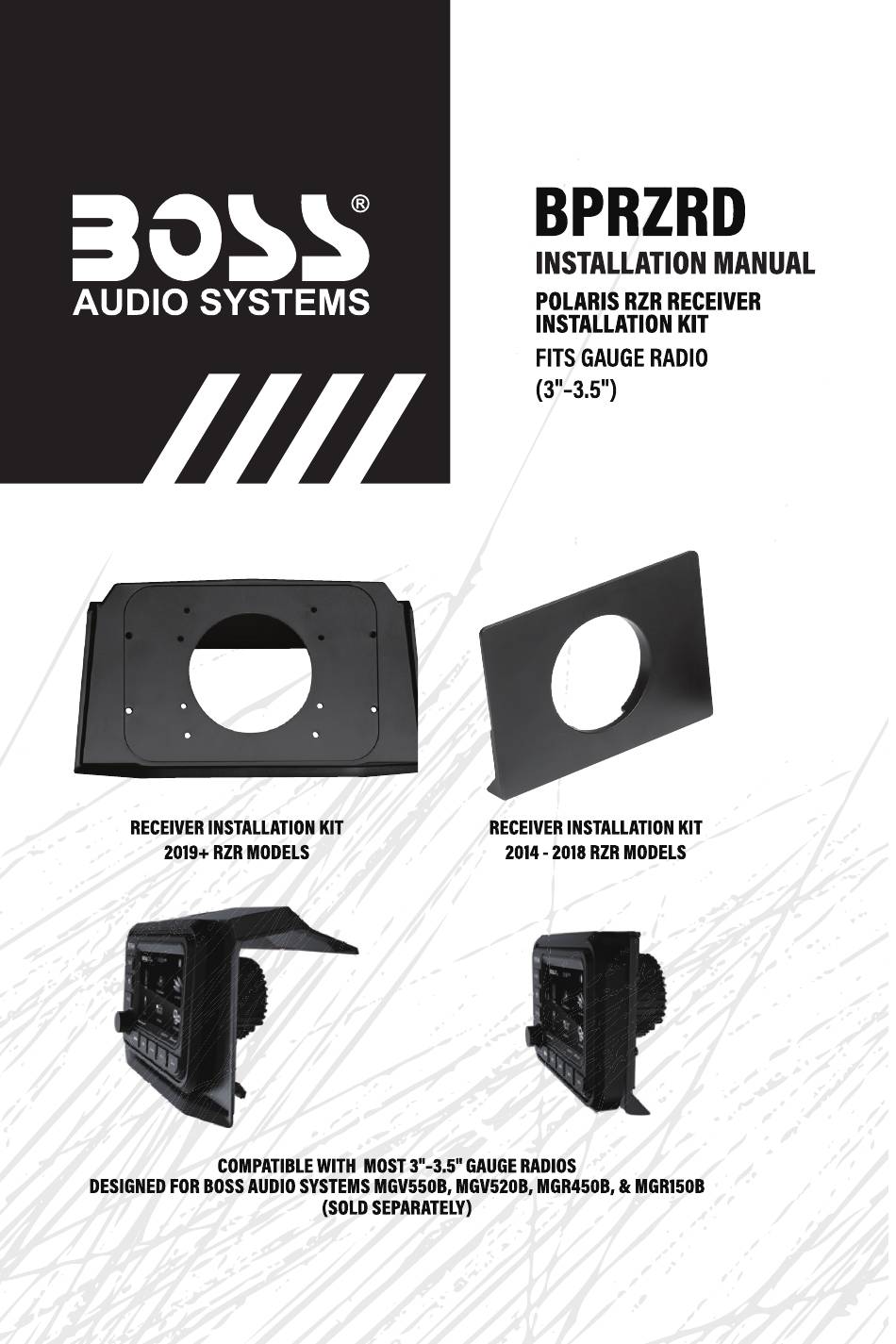

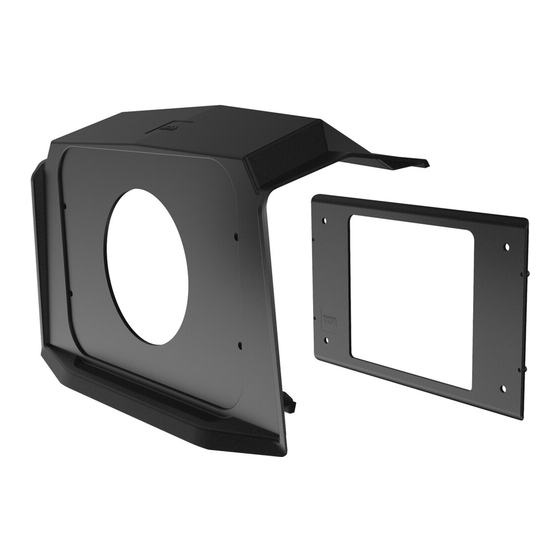

This Polaris RZR receiver installation kit is designed to replace the factory upper or lower dash pocket, and thus make possible the installation of a BOSS Audio Systems gauge radio on your Polaris RZR vehicle.This installation kit fits all Polaris RZR 900, 1000, Turbo and 4-seat models from 2014 to current year (excluding Pro XP). -
Page 3: Specifications
“MGV520B” for screw fastening. Adaptable mount panel b) Upper install kit assembly Depending on a BOSS Audio Systems source unit you have, installation method and kit may vary. Follow the guideline below that applies to your source unit. - 2 -... - Page 4 BPRZRD Polaris RZR INSTALLATION MANUAL Receiver Installation Kit MGV550B source unit installation (upper dash mount) Remove the trim plate from the front panel of the source unit, to access the four screw mounting holes. Fix the source unit by using the supplied upper dash mount panel, metal brace plate, and four supplied bolts and flange threading nuts.
- Page 5 BPRZRD Polaris RZR INSTALLATION MANUAL Receiver Installation Kit MGR450B source unit installation (upper dash mount) Remove the trim plate from the front panel of the source unit, to access the four screw mounting holes. Drill four screw holes on the back side of the adaptable mount panel for fastening of MGR450B source unit.
-
Page 6: C) Final Assembly (Upper Dash Mount)
BPRZRD Polaris RZR INSTALLATION MANUAL Receiver Installation Kit c) Final assembly (upper dash mount) After your source unit is fastened to the upper dash mount panel, secure the upper dash mount panel in the place where the previous upper dash pocket sits by using the push pins, and replace the trim plate. -
Page 7: B) Lower Install Kit Assembly
Receiver Installation Kit b) Lower install kit assembly Depending on a BOSS Audio Systems source unit you have, installation method and kit may vary. Follow the guideline below that applies to your source unit. MGV550B source unit installation (lower dash mount) Fasten both the lower dash mount panel and the metal brace plate to the lower dash pocket panel of your RZR as 3-in-1 panel. - Page 8 BPRZRD Polaris RZR INSTALLATION MANUAL Receiver Installation Kit Source unit 3-in-1 panel (Lower dash mount (MGV520B) panel, lower dash pocket panel of your RZR and metal brace plate are Trim plate fastened together) Drill four holes through the RZR dash...
-
Page 9: C) Final Assembly (Lower Dash Mount)
BPRZRD Polaris RZR INSTALLATION MANUAL Receiver Installation Kit MGR250B/150B source unit installation (lower dash mount) Make sure the four holes on the lower dash mount panel have been drilled (Refer to the “Lower dash mount panel” image on page 5).
