www.lg.com
Copyright © 2023 LG Electronics Inc.
All Rights Reserved.
(Smart Monitor)
OWNER'S MANUAL
Please read this manual carefully before
operating your set and retain it for future
reference.
32SR83U
The model and serial number of the product are located on the
back and on one side of the product. Record them below in case
you ever need service.
Model
Serial No.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MyView 32SR83U-W and is the answer not in the manual?

Questions and answers

Paul Morgans
April 29, 2025

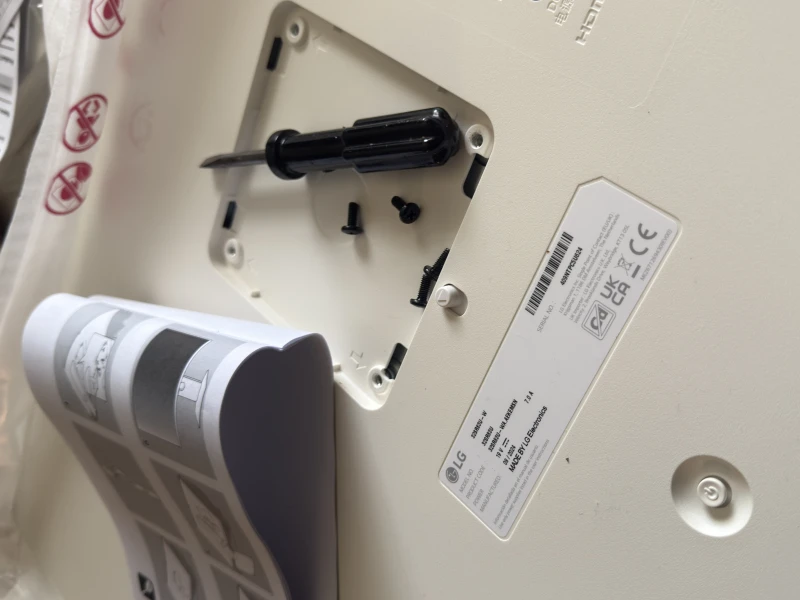

I don’t know how to connect monitor to stand. Do I rip the metal bracket on stand off? The instructions don’t say what to do?

User image 6810bfca1d6c1
0
2 comments:
Paul Morgans
April 29, 2025

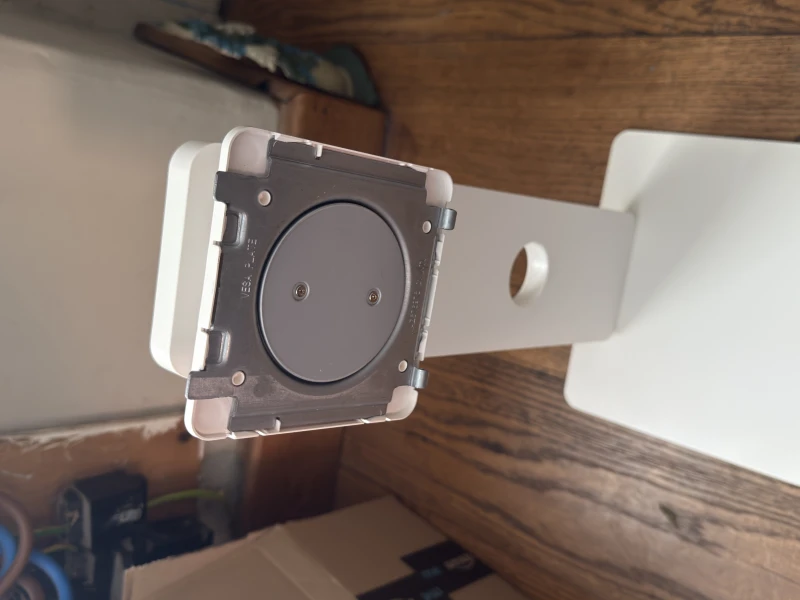

@Paul Morgans

User image 6810bffbb4c47
0
Mr. Anderson
May 15, 2025

To connect the LG MyView 32SR83U-W monitor to its stand:

1. Place the screen facing down on a cushioned table or flat surface to protect it from scratches.
2. Attach the stand base to the monitor. This is a simple process and can be done with one click.
3. Once attached, lift the monitor and place it upright on a table, ensuring it is at least 100 mm away from the wall for ventilation.

Always unplug the power cord before installation to avoid electric shock.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for LG MyView 32SR83U-W

Summary of Contents for LG MyView 32SR83U-W

  • Page 1 Copyright © 2023 LG Electronics Inc. All Rights Reserved. (Smart Monitor) OWNER’S MANUAL Please read this manual carefully before operating your set and retain it for future reference. 32SR83U The model and serial number of the product are located on the back and on one side of the product.

  • Page 2: Before Reading This Manual

    • Magic Remote Control : MR23GA (MR23GA model can be used in common with some TV products and this LG Smart Monitor) Check whether your model supports Bluetooth in the Wireless Module Specification to verify whether it can be used with the Magic Remote.

  • Page 3: Precautions In Installing The Product

    • When unplugging the power cord, always pull it by the plug. Do not bend the power cord with excessive force. - The power line can be damaged, which may cause electric shock or fire. • Be careful not to step or place heavy objects (electronic appliances, clothing, etc.) on the power cord or AC adapter. Be careful not to damage the power cord or AC adapter with sharp objects.

  • Page 4: Precautions In Moving The Product

    • If you smell smoke or other odors or hear a strange sound from the product unplug the power cord and contact LG Customer Service. - If you continue to use without taking proper measures, electrical shock or fire can occur.

  • Page 5: Precautions In Using/Cleaning The Product

    - Fire or electric shock can occur. - Contact LG Customer Service for repair. • When cleaning the product, unplug the power cord and scrub gently with a soft cloth to prevent scratching. Do not clean with a wet cloth or spray water or other liquids directly onto the product.

  • Page 6: Installation

    Installation Lifting and moving the Monitor Please note the following advice to prevent the Monitor from being scratched or damaged and for safe transportation regardless of its type and size. • It is recommended to move the Monitor in the box or packing material that the Monitor originally came in. •...

  • Page 7: Installing On A Table

    Installing on a Table • Lift the monitor and place it on the table in an upright position. Place the monitor at least 100 mm away from the wall to ensure sufficient ventilation. : 100 mm • Unplug the power cord before moving or installing the monitor. There is risk of electric shock. •...

  • Page 8: Adjusting The Angle

    Adjusting the Angle 1 Place the monitor mounted on the stand base in an upright position. 2 Adjust the angle of the screen. The angle of the screen can be adjusted forward or backward from -5° to 15° for a comfortable viewing experience. •...

  • Page 9: Adjusting The Stand Height

    Adjusting the Stand Height 1 Make sure to hold and move the monitor with both hands. Max 110.0 mm • To avoid injury when adjusting the height, do not put your hands on the stand. Using the Kensington Lock For more information on installation and usage, refer to the Kensington lock owner’s manual or visit the website at http://www.kensington.com. Connect the monitor to a table using the Kensington security system cable.

  • Page 10: Installing On The Wall

    Installing on the Wall This monitor meets the specifications for the wall mount plate or other compatible devices. • Install the monitor at least 100 mm away from the wall and leave about 100 mm of space at each side of the monitor to ensure sufficient ventilation. Detailed installation instructions can be obtained from your local retail store.
  • Page 11 • Unplug the power cord before moving or installing the monitor to avoid electric shock. • Installing the monitor on the ceiling or on a slanted wall may result in the monitor falling off, which could lead to injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel.

  • Page 12: Connecting To A Port

    Connections You can connect various external devices to your monitor. Change the input mode and select the external device you want to connect. For more information about external device connections, see the user manual provided with each device. Connecting to a Port Some of the cables are not provided.

  • Page 13: Hdmi Connection

    HDMI Connection • When connecting the HDMI cable, the product and external devices should be turned off and unplugged. • Supported HDMI Audio format: Dolby Digital / Dolby Digital Plus (32 kHz / 44.1 kHz / 48 kHz), PCM (32 kHz / 44.1 kHz / 48 kHz / 96 kHz / 192 kHz) •...
  • Page 14 USB-C (UPSTREAM) connection Transmits digital video and audio signals from your PC to the monitor. Note • USB-C does not support fast charging. Gender converters for fast charging is also not supported. • PD(Power Delivery) and DP Alternate Mode(DP over USB-C) are supported via USB-C (UPSTREAM)Port. •...

  • Page 15: Starting Monitor

    Starting Monitor Parts and Buttons The image may be different according to the model. Power On (Press) Quick Menu (Press Volume Control Menu Control Menu Selection (Press Menu Control Power Off (Press and Hold) 1 When the monitor is turned on, press the button one time.

  • Page 16: Specifications

    Specifications Environment Condition Operating Temperature 0 °C to 40 °C Operating Humidity Less than 80 % Storage Temperature -20 °C to 60 °C Storage Humidity Less than 85 % Product Information Wireless module(LGSBWAC23)Specifications Wireless LAN (IEEE 802.11a/b/g/n/ac) Frequency range Output Power (Max.) 2,400 to 2,483.5 MHz 16 dBm 5,150 to 5,725 MHz 16 dBm 5,725 to 5,850 MHz...
  • Page 17 Specifications are subject to change without notice. The symbol means alternating current, and the symbol means direct current. Dimensions: Monitor Size (Width x Depth x Height) • With Stand: 714 mm x 217 mm x 608.2 mm • Without Stand: 714 mm x 23.5 mm x 420.2 mm Weight (Without Packaging) •...
  • Page 18 HDMI/USB-C DTV supported mode Horizontal Frequency Vertical Frequency Resolution (kHz) (Hz) 31.46 59.94 640 x 480p 31.5 31.46 59.94 720 x 480p 31.5 720 x 576p 31.25 37.5 1280 x 720p 44.95 59.94 28.12 1920 x 1080i 33.71 59.94 33.75 26.97 23.97 28.12...
  • Page 19 HDMI/USB-C PC supported mode Horizontal Frequency Vertical Frequency Remarks Resolution (kHz) (Hz) 640 x 350 31.46 70.09 720 x 400 31.46 70.08 640 x 480 31.46 59.94 800 x 600 37.87 60.31 1024 x 768 48.36 1152 x 864 54.34 60.05 When [HDMI Deep 1360 x 768...

  • Page 20: Open Source Software Notice Information

    LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com.

  • Page 21: Troubleshooting

    Troubleshooting Do you see an "Unrecognised monitor, Nothing is displayed on the screen. monitor found" message? • Is the monitor's power cord plugged in? • Make sure to check if the graphics card supports function. - Check if the power cord is correctly plugged into the power outlet. •...

  • Page 22: Using Remote Control

    Using Remote Control Replacing the Remote Control Battery Use 3 V, CR2025 button cell battery. Replace the battery with new one and insert it in the battery tray as shown. 1 To separate the battery tray on the back of the remote control, push the hook to the side and then pull it. 2 Align the side of the replacement battery to the battery tray label and insert them correctly.
