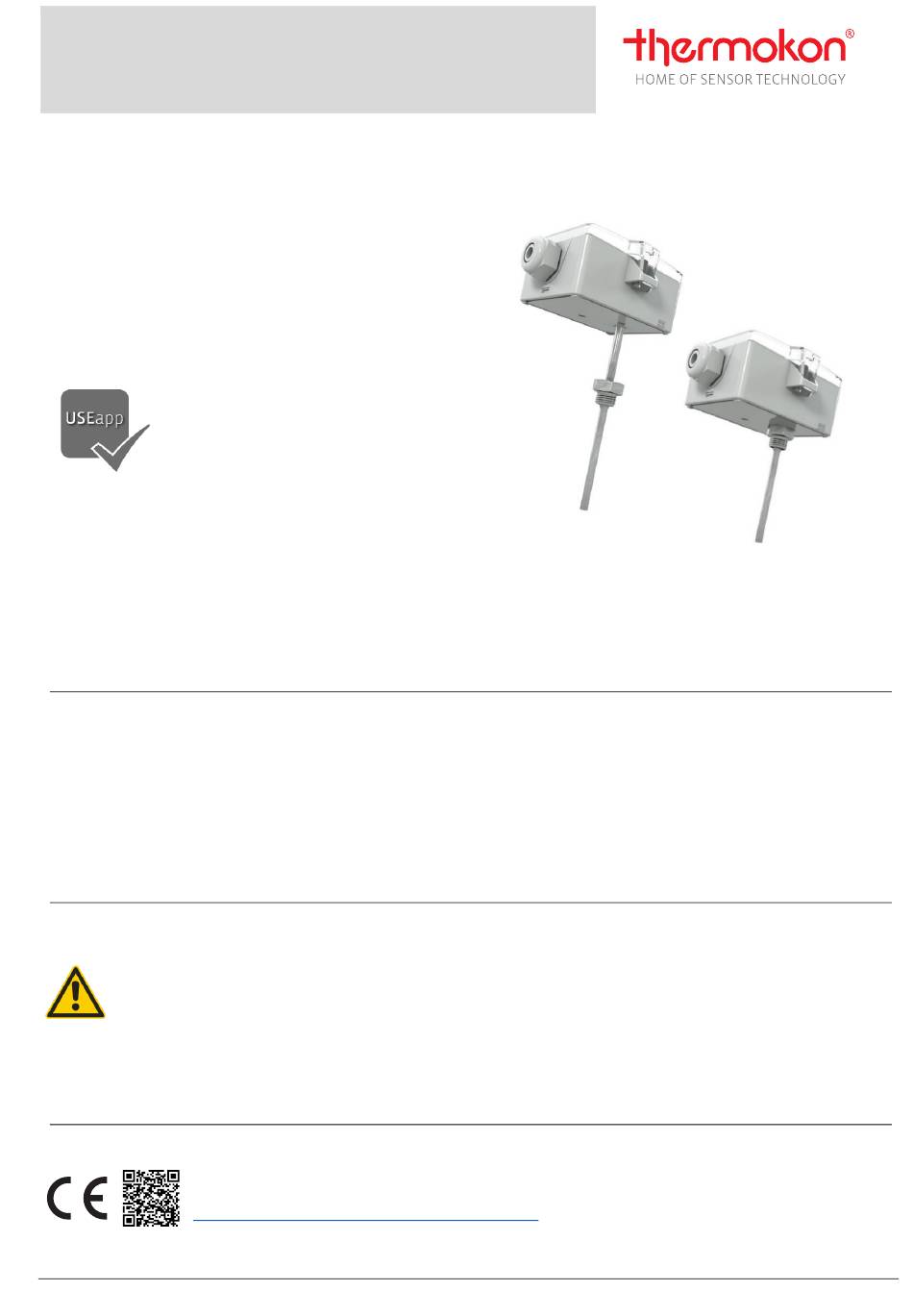

SFK(H)02+ LCD
Immersion temperature sensor
Datasheet
Subject to technical alteration
Issue date: 2/26/2024 • A120
»
APPLICATION
Immersion sensor for temperature measurement of gases and liquids in pipework applications. The sensor can optionally be screwed directly into
a bonded pocket (see accessories). Types SFKH02+ with a 70 mm neck pipe are designed for applications with insulation materials. The measuring
insert can be exchanged without disassembling the entire sensor. The devices with relay output for a 2-point controller or a 2-stage 2-point controller
and color-changing LCD allow a wide range of applications. Depending on the model, the sensor can be individually configured via Thermokon
USEapp. Tool-free opening, closing and wiring as well as removable cable entries ensure quick and easy installation.
»
TYPES AVAILABLE
Immersion sensor with display (optional with neckpipe) temperature – active 0..10 V
• SFK(H)02+ LCD TRV MultiRange <xx>.08
Immersion sensor with display (optional with neckpipe) temperature – active 4..20 mA
• SFK(H)02+ LCD TRA MultiRange <xx>.08
Immersion sensor with display (optional with neckpipe) temperature – active 0..10 V + relay
• SFK(H)02+ LCD TRV MultiRange relay <xx>.08
<xx>: mounting length 1.97/3.94/5.9/7.87/9.84/17.7 in
MultiRange: Measuring ranges adjustable at the transducer
»
SECURITY ADVICE – CAUTION
The installation and assembly of electrical equipment should only be performed by authorized personnel.
The product should only be used for the intended application. Unauthorised modifications are prohibited! The product must not
be used in relation with any equipment that in case of a failure may threaten, directly or indirectly, human health or life or result in
danger to human beings, animals or assets. Ensure all power is disconnected before installing. Do not connect to live/operating
equipment.
Please comply with
•
Local laws, health & safety regulations, technical standards and regulations
Condition of the device at the time of installation, to ensure safe installation
•
•
This data sheet and installation manual
»
PRODUCT TESTING AND CERTIFICATION
Declaration of conformity
The declaration of conformity of the products are available on our website
https://www.thermokon.de/direct/en-gb/categories/sfk02plus
Thermokon Sensortechnik GmbH, Platanenweg 1, 35756 Mittenaar, Germany · tel: +49 2778 6960-0 fax: -400 www.thermokon.com· email@thermokon.com
SFK(H)02+_LCD_Datasheet_en-us © 2024
