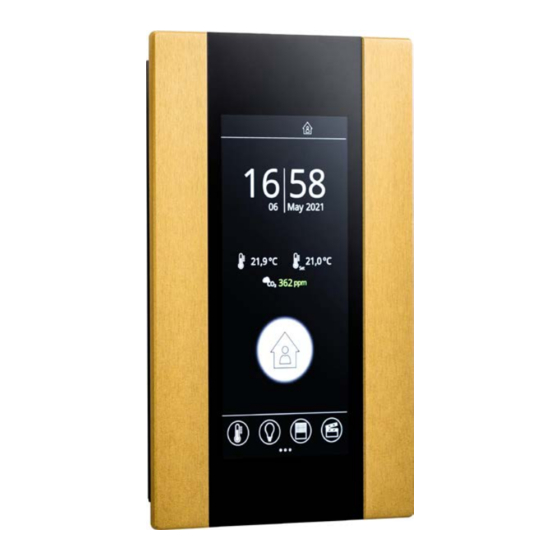

thanos EVO LON
Room operating unit temperature, optional with humidity | CO2 | VOC
Datasheet
Subject to technical alteration
Issue date: 30.09.2022 • A123
»
APPLICATION
Room control unit with room temperature measurement, optional humidity, CO2, or VOC and a monitoring function for colourful visualization of the
measured values. The maintenance-free sensor creates the conditions for a pleasant indoor climate and well-being. Typical applications are
schools, office buildings, hotels or cinemas. The room control unit has a high-resolution 4.8 "display with a noble glass surface. The innovative and
self-explanatory operation offers the functions of light, shading, climate and scene control for intelligent room automation.
»
TYPES AVAILABLE
Touch screen room operating unit temperature + opt. humidity, CO2, VOC – active BUS
•
thanos EVO Temp LON
•
thanos EVO Temp_rH LON
thanos EVO CO2 Temp_rH LON
•
•
thanos EVO VOC Temp_rH LON
•
thanos EVO CO2+VOC Temp_rH LON
»
SECURITY ADVICE – CAUTION
The installation and assembly of electrical equipment should only be performed by authorized personnel.
The product should only be used for the intended application. Unauthorised modifications are prohibited! The product must not be
used in relation with any equipment that in case of a failure may threaten, directly or indirectly, human health or life or result in
danger to human beings, animals or assets. Ensure all power is disconnected before installing. Do not connect to live/operating
equipment.
Please comply with
Local laws, health & safety regulations, technical standards and regulations
•
•
Condition of the device at the time of installation, to ensure safe installation
This data sheet and installation manual
•
»
PRODUCT TESTING AND CERTIFICATION
Declaration of conformity
The declaration of conformity of the products can be found on our website https://www.thermokon.de/
Thermokon Sensortechnik GmbH, Platanenweg 1, 35756 Mittenaar, Germany · tel: +49 2778/6960-0 · fax: -400 · www.thermokon.com · email@thermokon.com
thanos_EVO_LON_Datasheet_en.docx © 2022
*also available as Design variant
Advertisement
Table of Contents
Related Manuals for Thermokon thanos EVO LON
Summary of Contents for Thermokon thanos EVO LON
- Page 1 PRODUCT TESTING AND CERTIFICATION Declaration of conformity The declaration of conformity of the products can be found on our website https://www.thermokon.de/ Thermokon Sensortechnik GmbH, Platanenweg 1, 35756 Mittenaar, Germany · tel: +49 2778/6960-0 · fax: -400 · www.thermokon.com · email@thermokon.com thanos_EVO_LON_Datasheet_en.docx © 2022...
- Page 2 In case of a fixed operating voltage (±0,2 V) this is normally done by adding or reducing a constant offset value. Thermokon transducers can be operated with variable operating voltages. The transducers are set at the factory with a reference operating voltage of 24 V =.
- Page 3 NDIR (non-dispersive, infrared) » VOC (optional) Measuring range VOC 0..100 % Calibration self-calibration Sensor VOC sensor (heated metal oxide semiconductor) Thermokon Sensortechnik GmbH, Platanenweg 1, 35756 Mittenaar, Germany · tel: +49 2778/6960-0 · fax: -400 · www.thermokon.com · email@thermokon.com thanos_EVO_LON_Datasheet_en.docx © 2022...
- Page 4 Snap the upper part of the housing into the locking lug on the Fix the upper part of the housing on the underside with the upper side screw Thermokon Sensortechnik GmbH, Platanenweg 1, 35756 Mittenaar, Germany · tel: +49 2778/6960-0 · fax: -400 · www.thermokon.com · email@thermokon.com thanos_EVO_LON_Datasheet_en.docx © 2022...
- Page 5 By default, the screen saver switches on 120 seconds after the last interaction. Thermokon Sensortechnik GmbH, Platanenweg 1, 35756 Mittenaar, Germany · tel: +49 2778/6960-0 · fax: -400 · www.thermokon.com · email@thermokon.com thanos_EVO_LON_Datasheet_en.docx © 2022...
- Page 6 PSU-UP24 – flush mount power supply 24 V (AC Input: 100..240 V ~ | DC Output 24 V = 0,5 A) Item No. 645737 Thermokon USB-Interface Item No. 597838 Thermokon Sensortechnik GmbH, Platanenweg 1, 35756 Mittenaar, Germany · tel: +49 2778/6960-0 · fax: -400 · www.thermokon.com · email@thermokon.com thanos_EVO_LON_Datasheet_en.docx © 2022...
