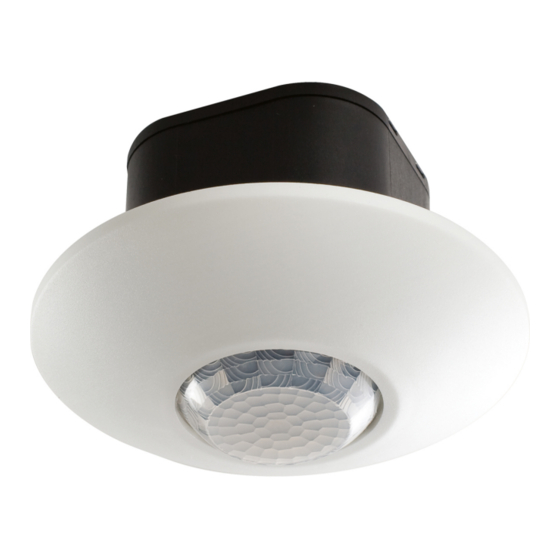

Ceiling multi sensor 360°
Datasheet
Subject to technical alteration
Issue date: 11/16/2020 • A113
»

APPLICATION

The wireless ceiling multi sensor is designed for movement detection in room or office spaces. In addition, the sensor detects the ambient
brightness in rooms.
The device has the following functions:
• Occupancy detection 360°
• Integrated light sensor 0..47,4 fc (0..510 Lux)
Optional: Integrated temperature sensor +32..+123,8 °F (0..+51 °C)
•
»

TYPES AVAILABLE

Radio ceiling sensor light + motion
SR-MDS (Power supply 15..240 V =/~)
SR-MDS BAT (Power supply 3x battery 1/2 AA, 3,6 V (LS14250)
Radio ceiling sensor light + motion + temperature
SR-MDS Temp (Power supply 15..240 V =/~)
SR-MDS Temp BAT (Power supply 3x battery 1/2 AA, 3,6 V (LS14250)
»
SECURITY ADVICE – CAUTION
The installation and assembly of the device should only be performed by authorized personnel.
The product should only be used for the intended application. Unauthorized modifications are prohibited! The product must not be
used in relation with any equipment that in case of a failure may threaten, directly or indirectly, human health or life or result in
danger to human beings, animals or assets. Ensure all power is disconnected before installing. Do not connect to live/operating
equipment.
Please comply with
• Local laws, health & safety regulations, technical standards and regulations
Condition of the device at the time of installation, to ensure safe installation
•
• This data sheet and installation manual
