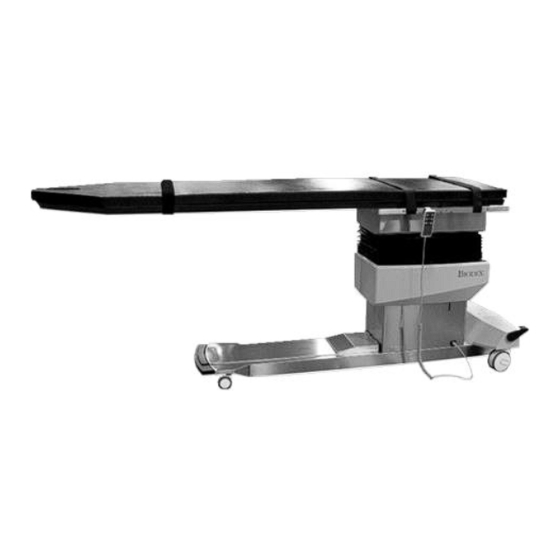

- Page 1 PAIN MANAGEMENT C-ARM TABLE™ INSTRUCTIONS FOR USE 058-870 058-875 058-870-10 058-875-10 7 Vreeland Road, Florham Park, NJ 07932 (800) 631-3826 | (201) 825-9500 | www.biodex.com FN: 20-323-CLR Rev B 4/23...
- Page 2 This instructions for use document covers safe operation of the Surgical C-Arm Tables 058-870, 058-875, 058-870-10, and 058-875-10. Additional information and resources are available upon request or directly from the Biodex website, www.biodex.com. If the desired information is not found, contact a local distributor or tchnical support directly at FLO-TechSupport@mirion.com.
-
Page 3: Table Of Contents
Table of Contents Definition of Symbols ......................... 4 Product Certifications and Classifications ................... 5 Before Proceeding ........................6 Important Safety Information ..................... 7 1. Introduction .......................... 8 Intended Use ........................8 Indications for Use ......................8 Contraindications ......................8 Automatic Positioning ..................... 9 2. -
Page 4: Definition Of Symbols
Definition of Symbols The following symbols and their associated definitions are used and implied throughout this manual. Symbol Definition Carefully read these instructions prior to use Operating Instructions Caution General Warning General Mandatory Action Dangerous Voltage “On” Power “Off” Power Pinch Point Earth (ground) Alternating Current... -
Page 5: Product Certifications And Classifications
Serial Number Contains Lead CE Mark Authorized Representative in the European Community Product Certifications and Classifications The Surgical C-Arm Table has received the following certifications, and falls within the following classifications: IEC60601-1:2005 (Third Edition) + CORR1:2006+Corr 2:2007 + A1:2012 (or IEC 60601- ●... -
Page 6: Before Proceeding
Before Proceeding NOTE: The warnings, cautions and instructions provided in this manual must be read, followed and kept available for consultation at all times. Observing the information, instructions and procedures presented throughout this manual is essential for using this product both properly and safely. SPECIFIC CAUTIONS Allow only qualified, trained personnel to operate or service this product. -
Page 7: Important Safety Information
Before Proceeding section of this manual. This product should be used only as specified in the operation manual. WARNING: Biodex devices are designed for use in a client environment. For product specifications, refer to the Table of Contents. This medical electrical equipment requires special precautions regarding EMC and must be assembled and placed into service according to EMC information provided in this manual. -
Page 8: Introduction
1. Introduction Intended Use The Pain Management C-Arm Table 870 is designed for image-guided procedures where stability, access, and precise, quiet, vibration-free positioning are essential. A cantilevered low attenuation carbon fiber tabletop, with choice of contoured or rectangular design, accommodates portable or ceiling-suspended C-Arms. The contoured top provides ample workspace for anesthesiologists, yet the narrowness required for cervical procedures. -
Page 9: Automatic Positioning
Automatic Positioning The portable Hand-Held and optional foot-operated controllers can be positioned for convenient access from any point around the table. Both controllers offer the freedom to adjust height, lateral roll, and Trendelenburg motions. The foot-operated controller can be used when hands are busy with other functions. -
Page 10: Operating Instructions
2. Operating Instructions CAUTION: Hospital grade plug to be plugged into a hospital grade receptacle only to achieve grounding reliability. CAUTION: Before transferring a patient onto or off the table, ensure all four caster brakes are locked. Secure the restraining straps immediately after positioning the patient on the table. - Page 11 Figure 2.1. Locking Brakes and Swivel Casters Figure 2.2. Head End Lock Bar...
-
Page 12: Using The Hand-Held Controller
Using the Hand-Held Controller The Hand-Held controller may be used to adjust table height, Trendelenburg/Reverse Trendelenburg, lateral roll and X-Y positioning. When not in use, the Hand-Held Controller can be hooked onto the metal loop on the restraining strap, or on the accessory rail. CAUTION: Before moving the tabletop, be sure that all I.V. -
Page 13: Pole (Optional)
I.V. Pole (Optional) The adjustable height I.V. pole should be installed onto the O.R. accessory rail. Loosen the I.V. pole locking knob at the base of the slide block and slide the block and pole onto the accessory rail until it is in the desired position. Tighten the locking knob to secure the pole. To adjust the height of the I.V. -
Page 14: Maintenance And Cleaning
3. Maintenance and Cleaning The Biodex Surgical C-Arm Table is virtually maintenance free. By following the instructions below at suggested time intervals, or as often as necessary, the table will remain in “like new” condition. 1. As required, cleanse all exterior surfaces and tabletop pads with a mild detergent solution, such as Parker Laboratories Protex Disinfectant or any one-step disinfectant that does not contain bleach. -
Page 15: Specifications
4. Specifications Dimensions: 97" l x 26" w (246 x 66 cm) with OR accessory rails Tabletop: 97" l x 24" w (246 x 61 cm) – choice of classic contoured or rectangular design. Tested and complies with IPx4. Radiolucent Area: 70" l x 24" w (178 x 61 cm) Tabletop Material: Carbon fiber with integral head section (contoured or rectangular end) Mattress: Seamless, 2"... - Page 16 7 Vreeland Road, Florham Park, NJ 07932 (800) 631-3826 | (201) 825-9500 | www.biodex.com...
