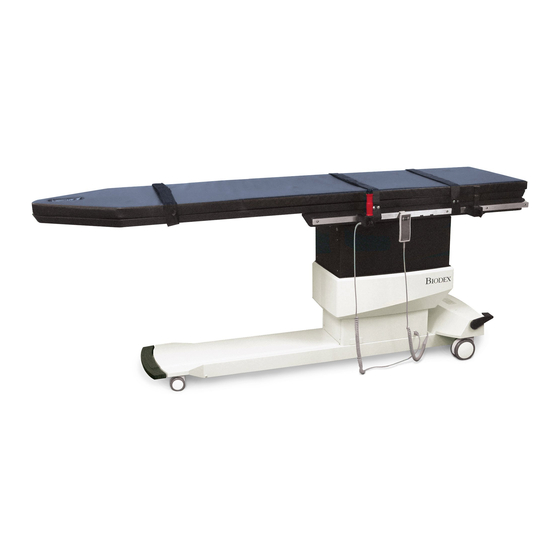

- Page 1 SURGICAL C-ARM TABLE - 846 INSTALLATION/ OPERATION MANUAL 058-846 058-847 IODEX Biodex Medical Systems, Inc. FN: 06-158 Rev A 8/14...
- Page 2 SURGICAL C-ARM TABLE - 846 This manual covers installation and operation procedures for the following products: #058-846 Table, Surgical C-Arm - 846, 115 VAC #058-847 Table, Surgical C-Arm - 847, 230 VAC Symbol Meaning CAUTION: Refer to instruction manual before operating or servicing system.

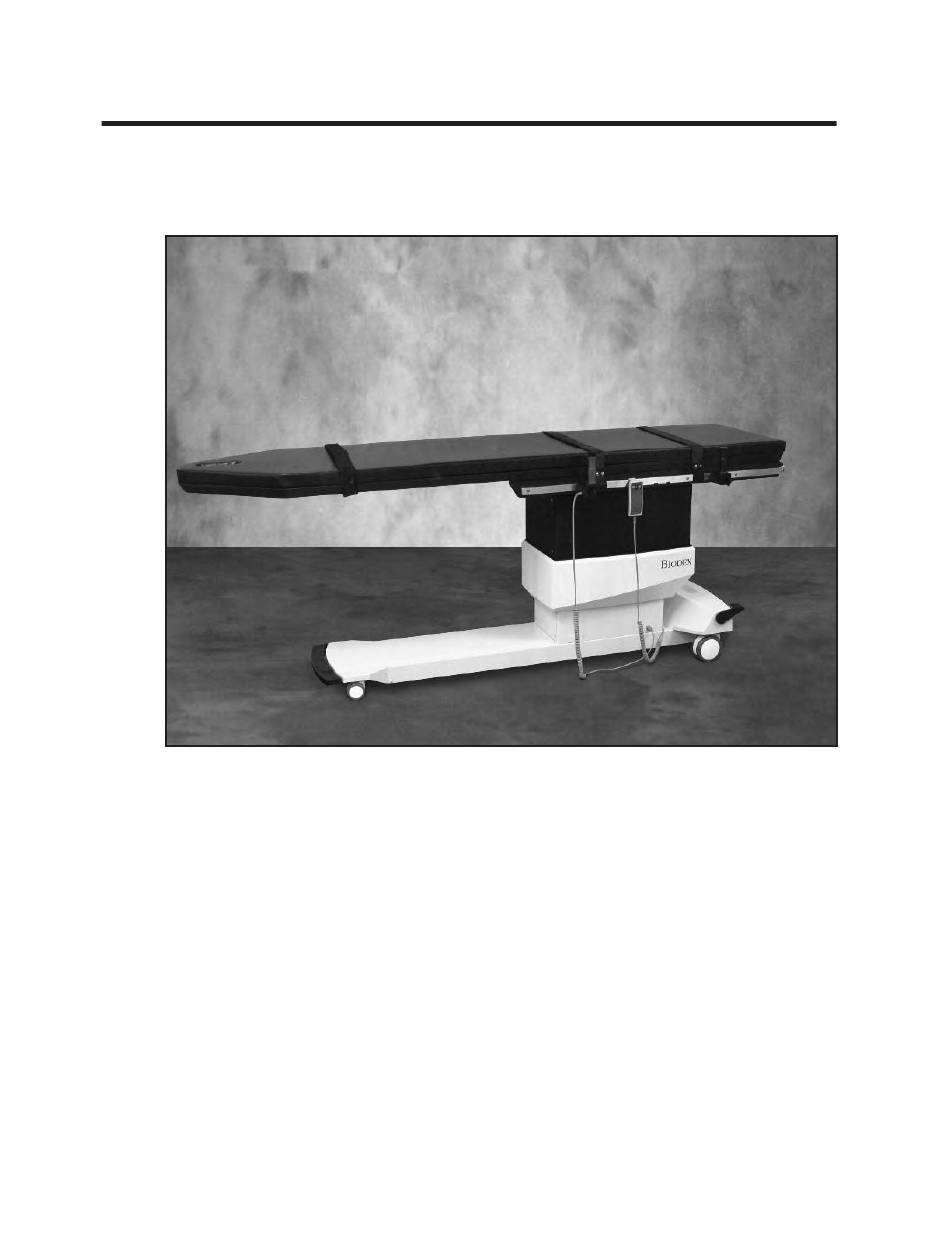

- Page 3 INTRODUCTION OpeRaTINg INsTRUCTIONs The Surgical C-Arm Table – 846 features an economical, no- nonsense float top design that allows for quick and comfort- CAUTION: Refer to instruction manual before able patient positioning. Its large radiolucent area, motorized operating or servicing system.
- Page 4 The Locking Brakes and swivel Casters Using the Hand-Held Controller (See Figure 2.) The Hand-Held Controller may be used to adjust table height and X-Y positioning. When not in use, the Hand- Held Controller can be hooked onto the accessory rail. The locking brakes and swivel casters allow this table to glide effortlessly on hard surfaces and across firm rugs.
- Page 5 positioning The X-Y Free-Float Tabletop (See Figure 4.) The X-Y free-float tabletop is positioned using the red Tabletop Handgrip. The red handgrip has a push button that, when depressed, allows the table to move in both the X and Y planes. To move the tabletop, depress the push button on the red handgrip and slide the tabletop to the desired position.
- Page 6 058-847 Table, Surgical C-Arm - 846, 230 VAC MaINTeNaNCe aND CLeaNINg The Biodex Surgical C-Arm Table - 846 is virtually mainte- nance free. By following the instructions below at suggest- ed time intervals, or as often as necessary, your table will EQUIPMENT remain in “like new”...
- Page 7 Immunity to 50 Hz Magnetic fields Immunity to voltage variations and short interruptions Variations of power frequency Pass Fail Not applicable No requirement Magnetic Corp. control box. /Montena EMC SA Date: 10/10/05 058-846 & 058-847 C-Arm Tables- dc methods test.doc :cs:dv - 7 -...
- Page 8 - 8 -...
- Page 9 - 9 -...
- Page 10 - 10 -...
- Page 11 - 11 -...
- Page 12 - 12 -...
- Page 13 - 13 -...
- Page 14 - 14 -...
- Page 15 - 15 -...
- Page 16 - 16 -...
- Page 17 - 17 -...
- Page 18 - 18 -- 18 -...
- Page 19 - 19 -- 19 - - 19 -...
- Page 20 IODEX Biodex Medical Systems, Inc. - 20 -...
