BOERPLAY BBIE001.H Installation Instructions Manual

Playkitchen
Hide thumbs

Advertisement

Quick Links

Download this manual
Playkitchen
BBIE001.H

Advertisement

loading
Need help?

Need help?

Do you have a question about the BBIE001.H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BOERPLAY BBIE001.H

Summary of Contents for BOERPLAY BBIE001.H

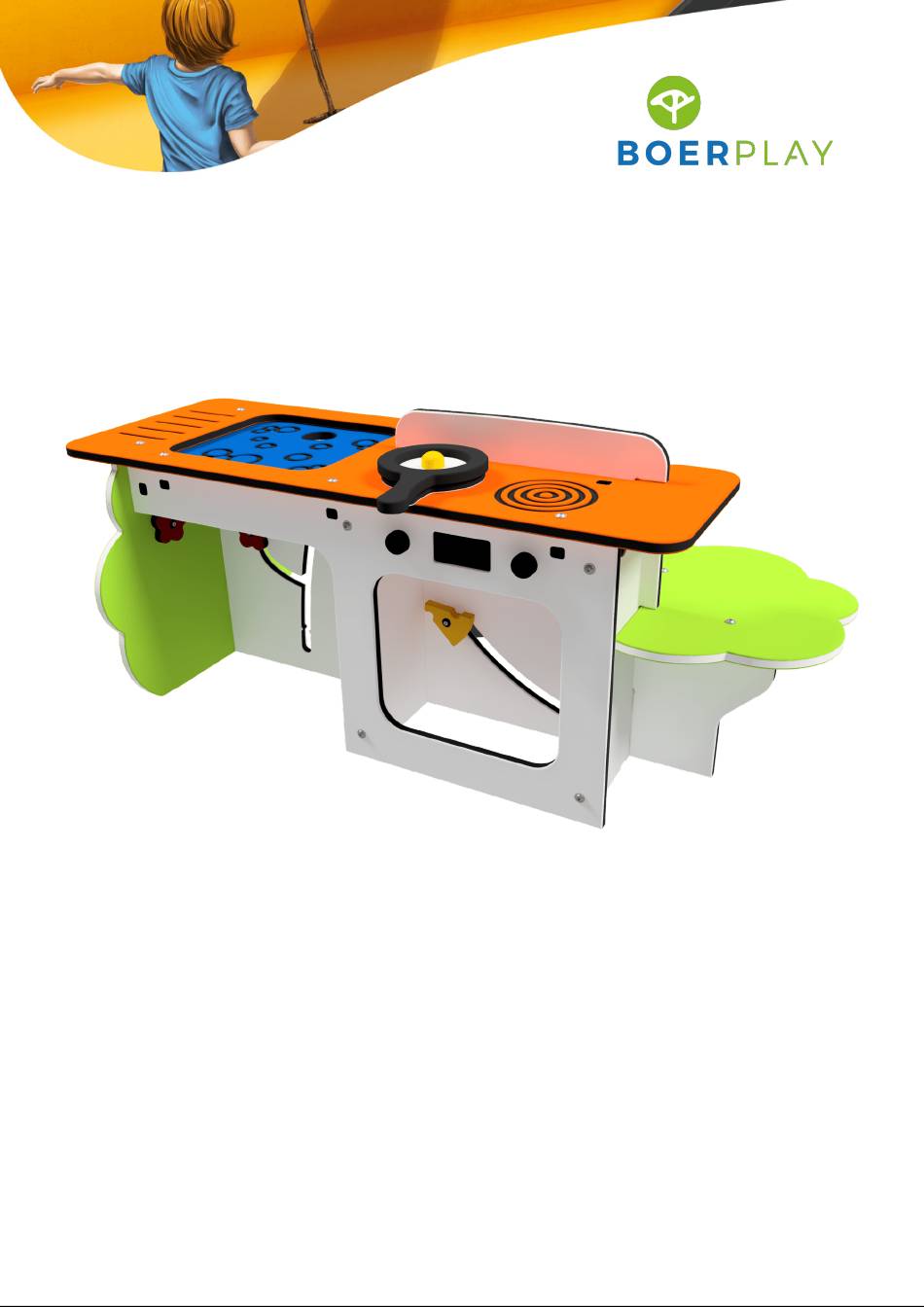

  • Page 1 Playkitchen BBIE001.H...

  • Page 2: Installation Instructions

    Si el tierra no ayuda a la estabilidad del equipo que se está colocando, vierta 50L de hormigón por poste. FR - Important ! Si le sol ne contribue pas à la stabilité de l’équipement à placer, versez 50L de béton par poteau. BBI 001 H © Copyright BOERplay 15-11-2023 Revision: C...
  • Page 3 Hoofdafmetingen Hauptabmessungen Dimensiones principales Dimensions principales 1,39 m 0,60 m 0,52 m 0,30 m 0,00 m BBI 001 H © Copyright BOERplay 15-11-2023 Revision: C...
  • Page 4 Zona libre de obstáculos Zone libre d’obstacles 4,41 m 1,50 m Impact area Opvangzone Ausprallbereich Zona de impacto Zone d‘impact Obstacle free zone Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacles BBI 001 H © Copyright BOERplay 15-11-2023 Revision: C...
  • Page 5 Plan de surface 1,85 m 0,92 m 1,64 m 0,32 m Ground level Ground level Maaiveld Maaiveld Bodennahe Bodennahe Nivel del suelo Nivel del suelo Niveau au sol Niveau au sol BBI 001 H © Copyright BOERplay 15-11-2023 Revision: C...

  • Page 6: Assembly Manual

    - order of assembly Montagevolgorde Montagereihenfolge Orden de esemblado Ordre de montage - assembly manual - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD.BBI.171 BBI 001 H © Copyright BOERplay 15-11-2023 Revision: C...
  • Page 7 Benodigde gereedschappen Benötigtes Werkzeug Herramientas requeridas Outils nécessaires TX-25 No. 10 (2x) TX-40 No. 13 (2x) No. 17 (2x) No. 10 No. 13 No. 17 BBI 001 H © Copyright BOERplay 15-11-2023 Revision: C...
  • Page 8 Montagevolgorde Montagereihenfolge Orden de esemblado Ordre de montage MOD.BBI.171 BOER PLAY xxx.xxx.xxx EN 1176 www.boerplay.com BBI 001 H © Copyright BOERplay 15-11-2023 Revision: C...
  • Page 9 LOGBOOK Type indication Figura Play Article number BBIE001.H Product Name Playkitchen Maximum fall height Information about the owner of the playground Name: _______________________________________________________ Address: _______________________________________________________ Zipcode and city: _______________________________________________________ Contact: _______________________________________________________ Phone number: _______________________________________________________ Information about the manager of the playground...
  • Page 10 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...

  • Page 11: Inspection And Maintenance Intervals

    Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 12 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 14 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBI 171 © Copyright BOERplay 15-11-2023 Revision: D...
  • Page 15 Detail A (5x) OPE.BBI.030.xxx KST.ROR.006.000 KST.ROR.006.000 BSR.053.005.030 BSR.053.005.030 OPE.BBI.038.090 30 mm Detail B (1x) OPE.BBI.029.072 BSR.053.005.030 KST.ROR.006.000 KST.ROR.006.000 OPE.BBI.031.010 OPE.BBI.038.090 BSR.053.005.030 BSR.053.005.030 KST.ROR.006.000 OPE.BBI.029.072 OPE.BBI.030.010 OPE.BBI.030.022 30 mm OPE.BBI.030.032 OPE.BBI.031.010 OPE.BBI.038.090 OPE.BBI.182.006 OPE.BBI.840.061 MOD BBI 171 © Copyright BOERplay 15-11-2023 Revision: D...
  • Page 16 Detail C (5x) ✔ BSR.010.008.008 OME.BBI.021 BSR.052.008.060 OPE.BBI.839.006 OPE.BBI.184.006 BSR.010.008.008 BSR.052.008.060 OME.BBI.021 OPE.BBI.184.006 OPE.BBI.839.006 MOD BBI 171 © Copyright BOERplay 15-11-2023 Revision: D...
  • Page 17 OPE.BBI.181.006 Detail D (2x) KST.DOP.010.xxx 40 mm BSR.023.010.040 BSR.030.010.002 KST.DON.010.xxx KST.BUS.012.020 KST.DON.010.xxx BSR.030.010.002 BSR.010.010.010 BSR.010.010.010 KST.DOP.010.xxx BSR.023.010.040 BSR.030.010.002 KST.BUS.012.020 KST.DON.010.060 KST.DOP.010.060 OPE.BBI.181.006 MOD BBI 171 © Copyright BOERplay 15-11-2023 Revision: D...
  • Page 18 Detail C (5x) ✔ BSR.010.008.008 OME.BBI.021 BSR.052.008.060 BSR.010.008.008 BSR.052.008.060 OME.BBI.021 MOD BBI 171 © Copyright BOERplay 15-11-2023 Revision: D...
  • Page 19 OPE.BBI.180.022 OPE.BBI.187.061 Detail E (1x) BSR.010.008.008 BSR.030.008.016 BSR.030.008.016 25 mm Detail C (9x) BSR.023.008.025 ✔ BSR.010.008.008 OME.BBI.021 BSR.010.008.008 BSR.052.008.060 BSR.023.008.025 BSR.030.008.016 BSR.052.008.060 OME.BBI.021 OPE.BBI.180.022 OPE.BBI.187.061 MOD BBI 171 © Copyright BOERplay 15-11-2023 Revision: D...
  • Page 20 OPE.BBI.185.052 Detail F (4x) KST.ROR.006.000 BSR.053.005.035 35 mm ✔ BSR.053.005.035 KST.ROR.006.000 OPE.BBI.185.052 MOD BBI 171 © Copyright BOERplay 15-11-2023 Revision: D...
  • Page 21 ✔ Detail G (1x) KST.DOP.010.010 BSR.010.010.010 BSR.030.010.002 KST.DON.010.010 OPE.BBI.188.090 OPE.BBI.189.006 BSR.010.010.010 BSR.053.005.030 BSR.026.010.055 BSR.030.010.002 BSR.053.005.030 BSR.053.005.030 KST.DON.010.010 KST.DOP.010.010 BSR.053.005.030 BSR.026.010.055 OPE.BBI.188.090 BSR.053.005.030 OPE.BBI.189.006 MOD BBI 171 © Copyright BOERplay 15-11-2023 Revision: D...
  • Page 22 OPE.BBI.841.xxx OPE.BBI.841.xxx Detail C (4x) ✔ BSR.010.008.008 OME.BBI.021 BSR.052.008.060 BSR.010.008.008 BSR.052.008.060 OME.BBI.021 OPE.BBI.841.xxx MOD BBI 171 © Copyright BOERplay 15-11-2023 Revision: D...
