Geotab® GO9+TM — Expandable Telematics Device with Wi-Fi
Hotspot

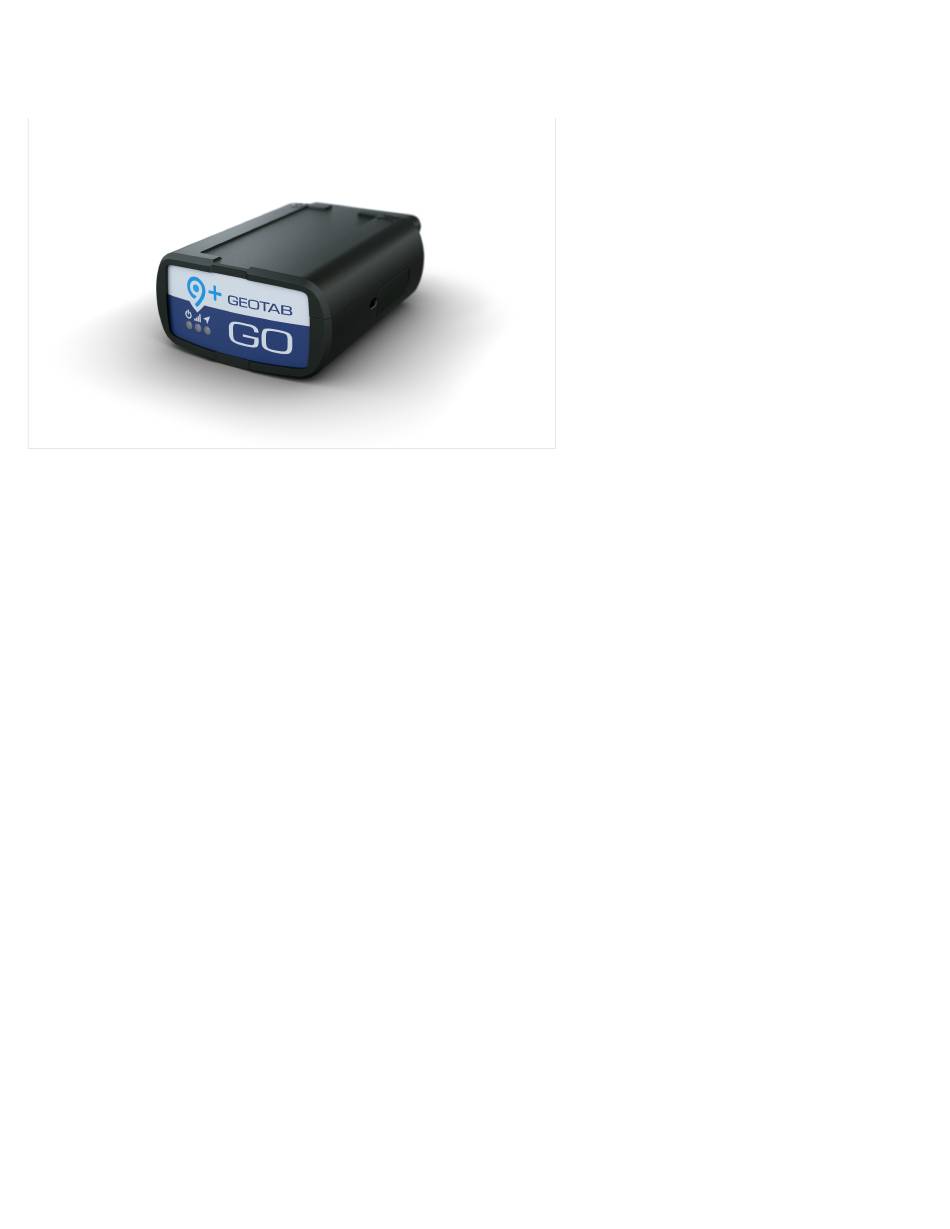

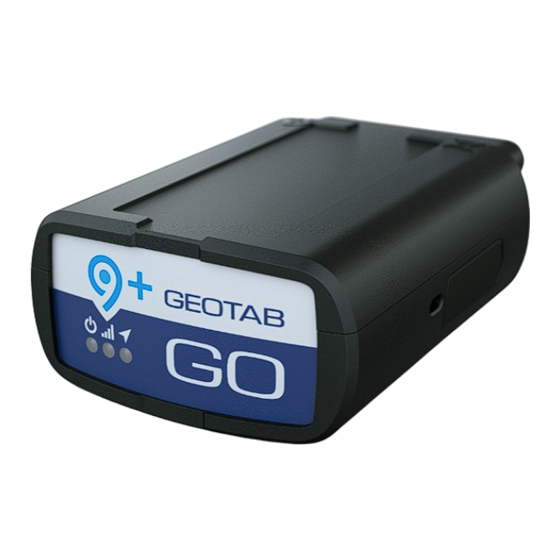

GO9+ device
Geotab's GO9+ telematics device builds on the class-leading GO9 with the added benefit of an on-board Wi-Fi hotspot. Similar to
the GO9®, the GO9+ offers state-of-the-art GPS technology, g-force monitoring, GEOTAB IOX® expandability, engine and battery
health assessments, and communication on the LTE network.
Vehicle tracking
Using Geotab's patented tracking algorithm, the GO9+ accurately recreates vehicle trips and analyzes incidents. Improve fleet
safety and performance. The GO9+ relays in-vehicle alerts to notify drivers of infractions in real-time and delivers live driver
coaching — with hardware Add-Ons — for improved on-road performance. The GO9+ does not require a dash-mounted antenna
or any wire splicing.
Security
Geotab platform security is designed for end-to-end protection of your data.
Key implementations include:
• GO™ device and network interfaces use authentication, encryption, and message integrity verification.
• GO devices are individualized. Each device uses a unique ID and non-static security key — making it difficult to fake a
device's identity.
• Over-the-air updates use digitally-signed firmware to verify that updates come from a trusted source.
• Geotab uses independent third-party experts to validate the platform from end-to-end.
• FIPS 140-2 validated by NIST (certificate #3371).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GO9+TM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Geotab GO9+TM

Summary of Contents for Geotab GO9+TM

  • Page 1 Hotspot GO9+ device Geotab’s GO9+ telematics device builds on the class-leading GO9 with the added benefit of an on-board Wi-Fi hotspot. Similar to the GO9®, the GO9+ offers state-of-the-art GPS technology, g-force monitoring, GEOTAB IOX® expandability, engine and battery health assessments, and communication on the LTE network.

  • Page 2: Top Features

    In-vehicle Wi-Fi hotspot Geotab’s GO9+ telematics device delivers an in-vehicle Wi-Fi hotspot to connect tablets, phones, and other Wi-Fi capable devices. Stay connected to your drivers at all times and improve your fleet functions. Top features • Wi-Fi hotspot functionality •...
  • Page 3 • Diagnostic/application protocols: Std OBD2, WWH-OBD, UDS (ISO 14229) • 2- or 3-wire install support (for older vehicles/asset tracking) Input/Output • Buzzer • LEDs — Ignition, GPS, Cellular • IOX (more details below) • Internal GPS/Cellular antennas Availability varying on certification — full list of supported countries here. Cellular GO9+ LTE ATT/TELUS •...
  • Page 4 • Coupled Transients (Electrical Fast Transients, Chattering Relay) • Electrostatic Discharge (ESD) • Electromagnetic Compatibility (EMC) • Electromagnetic Interference (EMI) 3D accelerometer and 3D gyroscope. Full-scale acceleration range of ±8 g and an angular rate Accelerometer & range of ±250 dps. gyroscope Acceleration and angular rate output data rate of 1.66 kHz.

  • Page 5: Preparing For Installation

    ✱ NOTE: You must select the correct Geotab hardware suitable for your specific installation environment and vehicle use. For installations where exposure to the elements (e.g., liquids, dust, or interior wet cleaning/powerwash) is anticipated, select the GO RUGGED device (GR8 rated IP67, and GR9 rated IP68 and IP69K).
  • Page 6 fires or cause malfunctions of vehicle controls that can result in serious personal injury or significant damage to your vehicle. Some examples requiring professional installation from an Authorized Geotab Installer are: • The OBD port location is such that the device protrudes and interferes with entering or exiting the vehicle, or located where it could be inadvertently kicked or bumped during vehicle operation •...
  • Page 7 The device emits two quick beeps every 60 seconds during set-up. Initial startup may take several minutes to complete. Once all three LEDs turn solid and you hear 10 quick beeps, secure the device using the provided cable tie. Ensure there is always a 20cm separation between the driver and the device.
  • Page 8 and installation comments. You can manually enter the Make, Model, and Year fields or tap the search icon beside VIN to auto- populate them. If you enter the Odometer value, you must select a unit of measurement (km or miles). Use the Work order reference field to enter the work order number.
  • Page 9 first day of the next month and your data usage limit will reset. You are responsible for monitoring your data usage. Upon reaching your monthly limit, and without warning, you may lose access to hotspot data. Geotab will not be responsible or liable for any losses or damages arising from the disconnection of hotspot data once the monthly data usage limit is exceeded.
  • Page 10 Thermal mitigation details (device response to different temperatures) The GO9+ offers much more cellular data access as compared to the GO9 device. As such, it includes a much more powerful CAT4 cellular modem that is capable of providing quick network speeds for Telematics and Wi-Fi data. Since the internal temperature of the device can affect device performance, the mitigation logic below is used to protect against any overheating scenarios.

  • Page 11: Regulatory Statements

    Cancel the Cancel the Cancel the Cancel the action: action: action: action: Remove the Remove the Remove the Remove the uplink data limit limit action on limit action limit action of action on the the Modem of on the Wi-Fi level 4.
  • Page 12 —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by Geotab could void the user’s authority to operate the equipment.
  • Page 13 Mexico La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada Product Wireless Information 703-748 MHz: 22 dBm EIRP 832-862 MHz: 22 dBm EIRP 890-915 MHz: 22.5 dBm EIRP 1710-1785 MHz: 22.5 dBm EIRP 1920-1980 MHz: 22 dBm EIRP 2412-2472 MHz: 20.5 dBm EIRP 2500-2570 MHz: 22 dBm EIRP...
