analog trunk interface of PBX (FXS)
TECHNICAL – INSTALLATION MANUAL
Recommendations
1.
Use only original spare parts and consumables supplied by Tema Telecomunicazioni Srl for this equipment. The company shall
not be held responsible for any damage caused by the use of materials that they have not supplied.
2.
The device has been carefully manufactured and tested. In any case, the product is not recommended for use in situations in
which incorrect operating may result in damage to persons and/or property.
3.
We recommend that you carefully read all this manual before starting to use the device.
4.
Do not expose the device to sunlight and protect it from sources of heat, dust, humidity and chemical agents.
5.
This manual is the property of Tema Telecomunicazioni Srl and any duplication and reproduction, even partial, as well as
storage on any type of media is forbidden without written permission from Tema Telecomunicazioni Srl.
Revision
Date
5
11/05/2010
MAS-DIAL101A-REV05EN
TEMA TELECOMUNICAZIONI S.r.l.
Telecommunications - Electronics

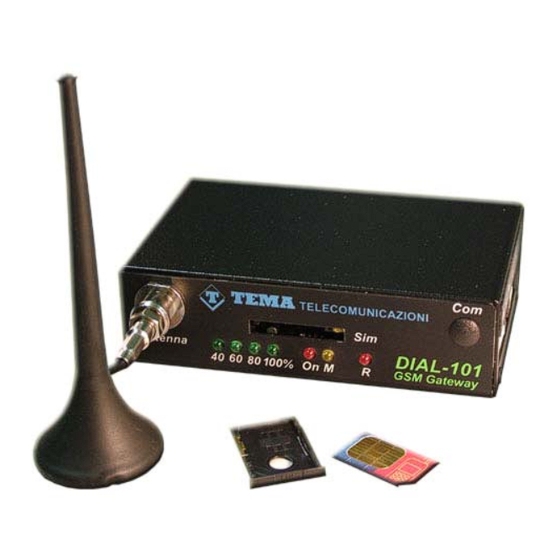

DIAL-101A
GSM Gateway Voice Interface for
DIAL-101A System Manual - Version HW 1.00 FW 4.05
Made in Italy by TEMA TELECOMUNICAZIONI S.r.l.
Revision Reason
Update
Prepared
DP,GBC
Checked/Approved
FL
Page 1 of 26
Advertisement
Table of Contents
Related Manuals for tema DIAL-101A
Summary of Contents for tema DIAL-101A
- Page 1 Do not expose the device to sunlight and protect it from sources of heat, dust, humidity and chemical agents. This manual is the property of Tema Telecomunicazioni Srl and any duplication and reproduction, even partial, as well as storage on any type of media is forbidden without written permission from Tema Telecomunicazioni Srl.
- Page 2 DIAL-101A GSM Gateway Interface TEMA TELECOMUNICAZIONI SRL DICHIARAZIONE DI CONFORMITÀ CE DECLARATION OF CONFORMITY CE La sottoscritta società : TEMA TELECOMUNICAZIONI SRL con sede in Via C. Girardengo, 1/4 - 20161 MILANO dichiara che il prodotto: Interfaccia GSM Gateway voce – GSM Gateway Codici: DIAL-101 nelle versioni A, B, C, T, con modulo relé...
- Page 3 DIAL-101A GSM Gateway Interface TEMA TELECOMUNICAZIONI SRL IMPORTANT INFORMATIONS REGARDING THE RECOVERY AND RECYCLING OF THIS ELECTRONIC DEVICE The crossed-out wheeled bin symbol below indicates that this electronic equipment is intended to be disposed in a separate collection and not in an unsorted municipal waste, in order to provide for the treatment of WEEE (Waste Electrical and Electronic Equipment) using best available recovery and recycling techniques.
-
Page 4: Table Of Contents
DIAL-101A GSM Gateway Interface TEMA TELECOMUNICAZIONI SRL TABLE OF CONTENTS PAGE INTRODUCTION OF GATEWAY DIAL-101A................5 CHARACTERISTICS OF DIAL-101A ..................6 PARTS COMPRISING THE SYSTEM (PACKING LIST) ............6 TECHNICAL SPECIFICATIONS ....................7 DESCRIPTION OF THE DEVICE....................8 5.1. F .............................. -
Page 5: Introduction Of Gateway Dial-101A
SIM card, connect the unit to a PBX analog trunk interface and plug in the antenna and power supply cable: DIAL-101A is now ready to use. Moreover, the unit is provided with a set of LED to ease recognition of the system’s and the GSM link’s status and activity. -
Page 6: Characteristics Of Dial-101A
Services for outbound calls (converted from the wired line network to GSM) If suitably programmed and as well as the routing function offered by the downstream PBX, DIAL-101A allows making direct calls to cellular telephones using the GSM network, which is more cost-effective than calling from a wired line. -
Page 7: Technical Specifications
DIAL-101A GSM Gateway Interface TEMA TELECOMUNICAZIONI SRL 4. TECHNICAL SPECIFICATIONS GSM Section GSM Module Built-in, dual-band (900/1800 MHz) Type of GSM network GSM Phase II SIM card Plug-in, 3V, small Transmission power Max. 2W / 900MHz - 1W / 1800MHz Receiver sensitivity >... -
Page 8: Description Of The Device
TEMA TELECOMUNICAZIONI SRL 5. DESCRIPTION OF THE DEVICE 5.1. Front view DIAL-101A front panel is provided with: A = Antenna connector (FME) B = Antenna signal field level LED bar C = System status LED (On) D = GSM module status LED (M) -
Page 9: Installation And Diagnostics
Insert the SIM card. To insert the SIM card into DIAL-101A, use a small screwdriver or pen point to press the center of the yellow button on the front slot with the SIM holder. Remove the holder and insert the SIM with the gold contacts facing upwards. -
Page 10: Diagnostics
DIAL-101A GSM Gateway Interface TEMA TELECOMUNICAZIONI SRL 6.2.2. Diagnostics On power-up, the red LED “On” flashes quickly. After registration, also the red “On” LED will flash slowly while the level of the antenna signal is indicated by the lighting of the green LEDs. This is the condition of the unit in stand-by mode (no calls in progress). -
Page 11: Services
GSM numbers, depending on their prefixes. If the PBX is not provided with LCR, it is still possible to select DIAL-101A when a GSM mobile number is dialed by setting the selection code of the trunk interface the Gateway is connected to, and dialing this code before the GSM number to call. -
Page 12: Inbound Call Gateway
In basic operating mode, when DIAL-101A receives a call to the built-in GSM module, it regenerates the ring by sending the call current over the analog line; if a caller-ID has been received, DIAL-101A resends it in Bell202 or CCITT V.23 mode, 1200-baud FSK modulation, to the downstream telephone or PBX. -
Page 13: Alarm Status Check And Silencing
This function allows to check the status of the integral relay as well as enabling or disabling it. It is useful for making any type of signal to an outside device that can be driven by a contact. The DIAL-101A contact can be programmed for permanent activation, pulsed activation for electric locks or cyclical for light signals. -
Page 14: Parameter Programming
DIAL-101A GSM Gateway Interface TEMA TELECOMUNICAZIONI SRL 8. PARAMETER PROGRAMMING DIAL-101A is equipped with an integral non-volatile memory, whose structure can be shown in a table where programming data should be entered. 8.1. Programming Modes A simple call to the system allows access to many of the functions offered as well as parameter programming. -
Page 15: Remote Programming
DTMF digit. If the parameter is 3-digit long and the user enters only 2 digits, Dial-101A will confirm the entry 3 seconds after the user entered the second digit; when 3 digits are entered, the entry is confirmed immediately after receipt of the third digit to signal that the field is full and, at the same time, speed up programming.The parameters entered will be stored. -
Page 16: Restoring The Default Parameters
For example, send the system the following SMS: 1111! 39335123456!” which instructs DIAL-101A to program entry the new number 39 335 123456 It is possible to add and remove several numbers in the same SMS. See the following example. “1111!>39335123456!>393359876543!<39335112233!”... -
Page 17: Parameter Table
221 # first digit DIAL-101A emits a not-available tone. 30000 (milliseconds) Range: from 0 to 65535 Allow or deny the DIAL-101A roaming registration to the GSM network. 225 # Roaming Enable 0= Roaming disabled 1= Roaming enabled Range: from 0 to 1 Max. - Page 18 DIAL-101A GSM Gateway Interface TEMA TELECOMUNICAZIONI SRL Field Field max Enter Your Parameter Name Description Default Number length (digits) Settings Send your own CLI 0 = do not send it 260 # To send SIM CLI 1 = send it...
- Page 19 DIAL-101A GSM Gateway Interface TEMA TELECOMUNICAZIONI SRL Field Field max Enter Your Parameter Name Description Default Number length (digits) Settings 523 # CLI table num. 19 As above 524 # CLI table num. 20 As above 525 # CLI table num. 21...
- Page 20 DIAL-101A GSM Gateway Interface TEMA TELECOMUNICAZIONI SRL Field Field max Enter Your Parameter Name Description Default Number length (digits) Settings Telephone number Number to send SMS notification of an 585 # for alarm via SMS alarm condition. notification Range: max 15 digits...
-
Page 21: Appendices
DIAL-101A GSM Gateway Interface TEMA TELECOMUNICAZIONI SRL APPENDICES MAS-DIAL101A-REV05EN Page 21 of 26... -
Page 22: A1 - Arrangement Of Internal Jumpers To Set Input Signal Detection
1-2 of the screw connector (identified as H). In practice the voltage for “reading” the contact is provided by DIAL-101A itself. The contact must withstand a 24 V , see figure A. -
Page 23: A2 - Echo Cancellation
GSM link conditions. The parameters below are very sensitive, that is modify only with the help and under supervision of TEMA technical staff. Parameters below affect DIAL-101A gateways with “WISMO” GSM engine built-in only; for the others models, the only parameter that can be modified is the one enabling or disabling of the echo cancellation, while the other parameters regarding the customization of the algorithm will not have effect. - Page 24 DIAL-101A GSM Gateway Interface TEMA TELECOMUNICAZIONI SRL Field Field max Enter Your Parameter Name Description Default Number length (digits) Settings If algorithm 1 is chosen, this parameter indicates what step to use for the echo attenuation increase. 0=steps 1 dB each...
-
Page 25: A3 - Technical Glossary
DIAL-101A GSM Gateway Interface TEMA TELECOMUNICAZIONI SRL A3 - TECHNICAL GLOSSARY Automatic Route Selection: the PBX routes calls to output interface depending on digits dialed and the caller’s privileges, if any. This way it is possible to route calls through the most cost-effective Operator CALL BACK Automatic recall service. - Page 26 DIAL-101A GSM Gateway Interface TEMA TELECOMUNICAZIONI SRL REMARKS: MAS-DIAL101A-REV05EN Page 26 of 26...
