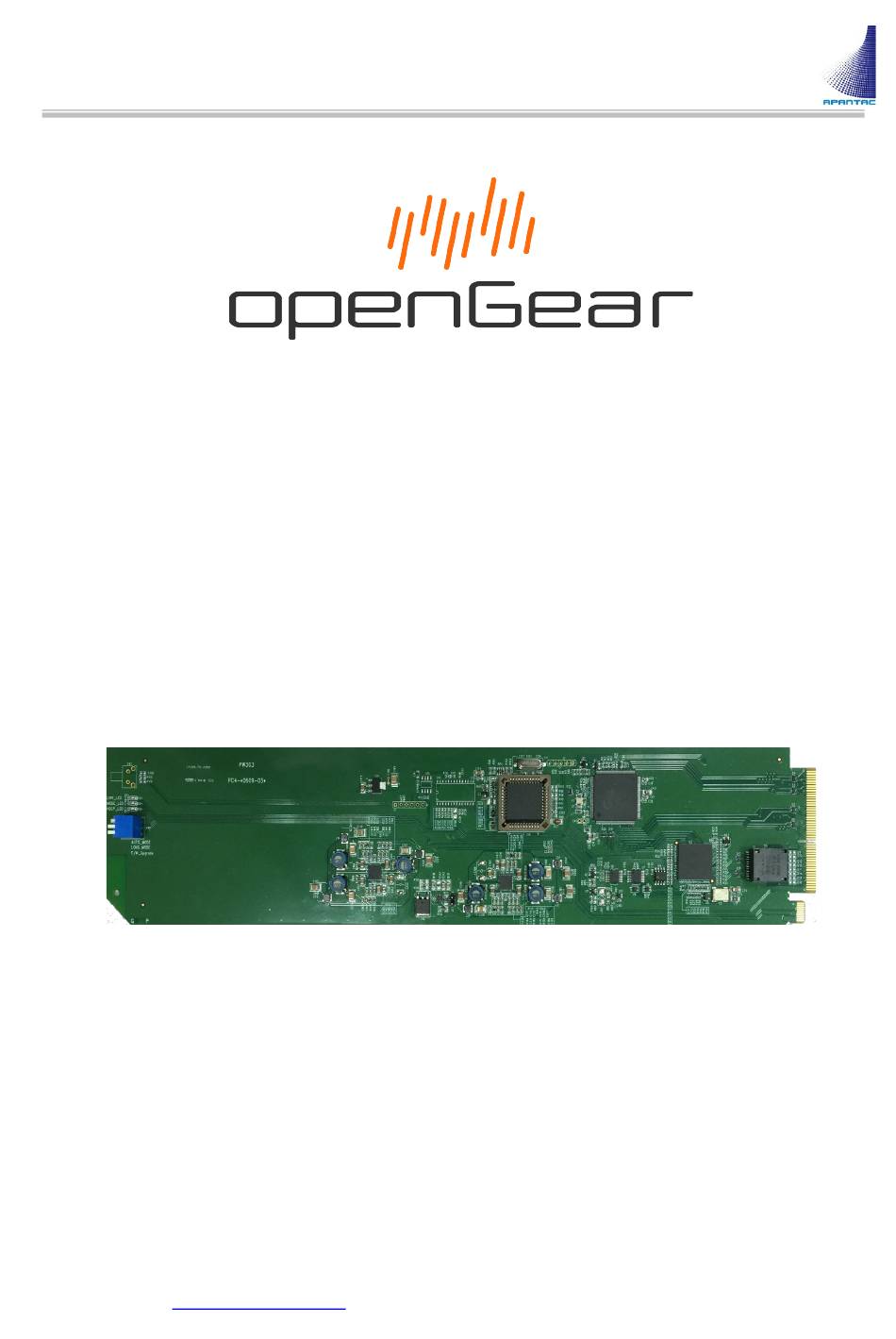

- Page 1 OG-HDBT-EAPx-SET-1 OG-HDBT-EAPx User Manual APANTAC LLC, 10200 SW ALLEN BLVD, BEAVERTON, OR 97005 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
- Page 2 OG-HDBT-EAPx-SET-1 Table of Contents What Is in The Box ................2 Key Features ..................2 Specifications .................. 2 Rear Modules ................... 3 Dashboard Control ................3 Appendix A ....................4 APANTAC LLC, 10200 SW ALLEN BLVD, BEAVERTON, OR 97005 INFO@APANTAC.COM, TEL: +1 503 968 3000, FAX: +1 503 389 7921...
- Page 3 OG-HDBT-EAPx-SET-1 1.0 What Is in The Box OG-HDBT-EAPx-SET-1 1 x OG-HDBT-EAPx-MB • 1 x OG-HDBT-EAPx-RM • 2.0 Key Features – OGX/3.0 card-based form factor. – Dashboard control enabled. – HDBT transmitter – Supports HDMI 1.4 input and HDBT output –...
- Page 4 Getting Started The Dashboard software is design to allow you to quickly access the feature sets of openGear form factor cards on a simple User Interface. This section will help you get up and running as quickly as possible. Running Dashboard...
- Page 5 OG-HDBT-EAPx-SET-1 OG-HDBT-EAPx Dashboard GUI OG-HDBT-EAPx is a very straight forward plug and play card. The Dashboard interface only allows identify its product name, software version, hardware version and firmware versions as well as the link status of the incoming and outgoing signals.
- Page 6 OG-HDBT-EAPx-SET-1 Limitation of Liability Apantac’s liability under this warranty shall not exceed the purchase price paid for the defective product. In no event shall Apantac be liable for any incidental, special or consequential damages, including without limitation, loss of profits for any breach of this warranty.
