USE AND CARE GUIDE

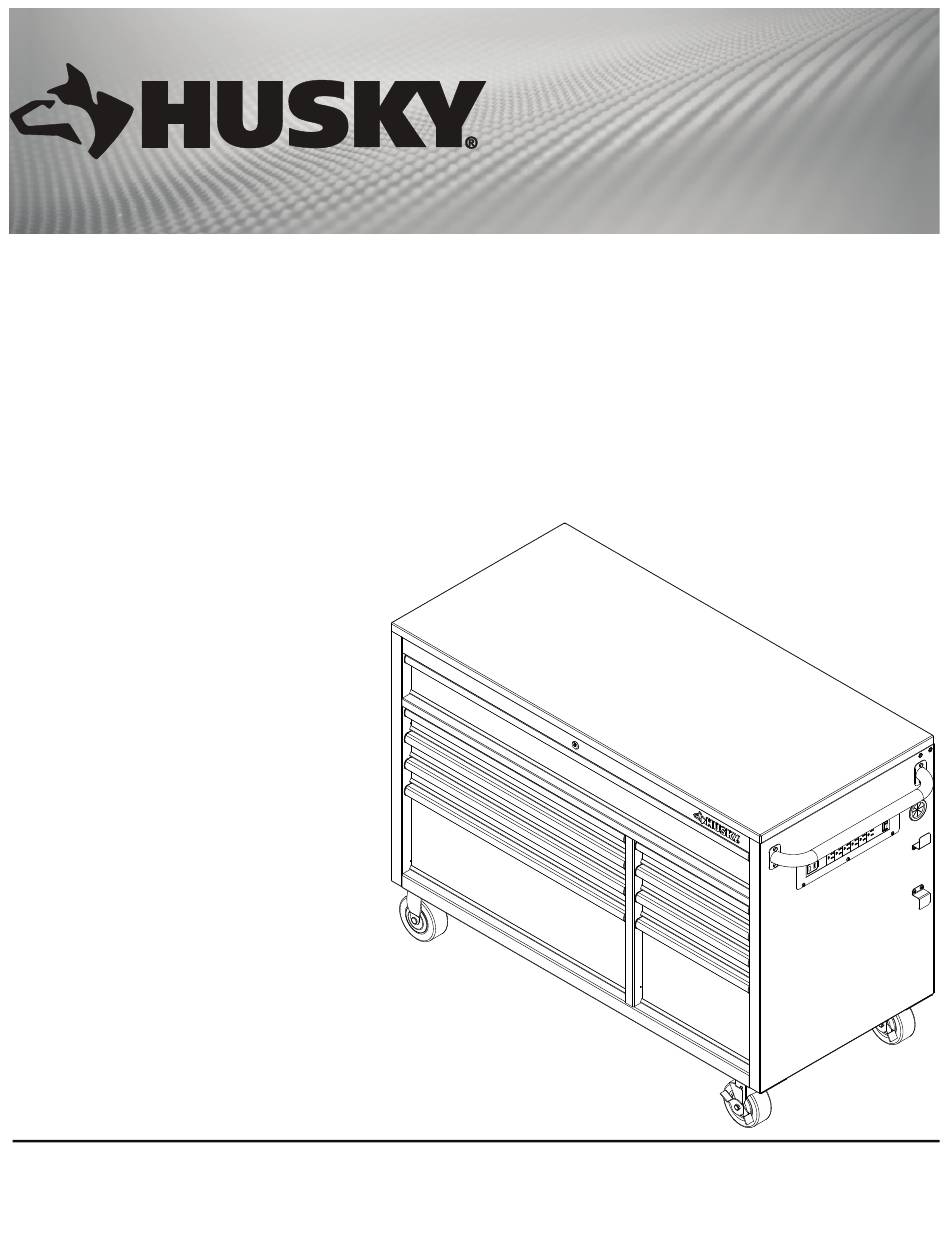

HUSKY 52 INCH 9 DRAWER MOBILE WORKBENCH 24.5 IN DEEP
Questions, problems, missing parts?
Before returning to the store, call
Husky Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday
9 a.m.- 6 p.m., EST, Saturday
1-888-HD-HUSKY
HUSKYTOOLS.COM
We appreciate the trust and confidence you have placed in Husky through the purchase of this chest/cabinet. We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
THANK YOU
improvement needs. Thank you for choosing Husky!
SKU #1004 168 200
SKU #1004 182 345
THD.com #1003 211 435
Model #HOTC5209B11M/B21M
Model #HOTC5209B31M/B41M
Model #HOTC5209BJ1M
Advertisement
Chapters
Table of Contents
Related Manuals for Husky HOTC5209B31M
Summary of Contents for Husky HOTC5209B31M
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Husky through the purchase of this chest/cabinet. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ..........2 Assembly ............... Safety Information ..........2-3 Operation ..............Warranty ............3 Maintenance ............Pre-Assembly ............. 4 Care and Clearning ........... Tools Required ..........4 Service Parts ..............Hardware Included ..........4 Specifications .......... -
Page 3: Safety Information
The manufacturer specifically disclaims any liability and shall not be liable for any consequential or incidental loss or damage, including but not limited to any labor/expense costs involved in the replacement or repair of said product. Contact the Customer Service Team at 1-888-HD-HUSKY or visit www.huskytools.com. HUSKYTOOLS.COM... -
Page 4: Pre-Assembly
Pre-assembly TOOLS REQUIRED Phillips Safety screwdriver goggles HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Service Part Description Quantity Bolt M4 x 10L Bolt M6 x 15L Bolt M8 x 15L 10MM/13MM Wrench SPECIFICATIONS Maximum capacity (per drawer) 100 lbs Maximum product (total unit) 1,200 lbs Empty weight... -
Page 5: Package Contents
PACKAGE CONTENTS Part Description Quantity Wood top Side handle Rolling cabinet Swivel caster with brake Drawer slide 100 lbs (pair) Drawer Rigid caster Power strip bracket Key (set) Lock Drawer liner Grommet Power strip HUSKYTOOLS.COM Please contact 1-888-HD-HUSKY for further assistance. -
Page 6: Assembly
Assembly Attaching the side handle Installing the casters □ Attach the side handle (B) to the cabinet (C) using four bolts CAUTION: Do not over tighten the screws. (BB). □ Tighten all bolts with the 10mm wrench (DD). Ensure all drawers are securely locked into place using □... -
Page 7: Operation
Slightly insert one side and repeat for the other side. □ Slowly push the drawer until it is fully closed to engage the slide. □ Open the drawer and close it to verify proper operation. HUSKYTOOLS.COM Please contact 1-888-HD-HUSKY for further assistance. -
Page 8: Maintenance
Maintenance Maintaining the casters Maintaining the drawers □ □ Periodically clean the drawer trim, and Grease the casters annually using high quality inside the drawers with a mild detergent and water . bearing grease . □ Remove grease and oil with a standard, nonflammable cleaning fluid. -
Page 9: Service Parts
Service Parts Part Description Quantity Wood top Side handle Swivel caster with brake Drawer slide 100 lbs (pair) Rigid caster Power strip bracket Key (set) Lock Drawer liner Grommet Power strip HUSKYTOOLS.COM Please contact 1-888-HD-HUSKY for further assistance. - Page 10 Questions, problems, missing parts? Before returning to the store, call Husky Customer Service 8 a.m.-7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m. EST Saturday 1-888-HD-HUSKY HUSKYTOOLS.COM Retain this manual for future use.
- Page 11 THANK YOU We appreciate the trust and confidence you have placed in Husky through the purchase of this pegboard. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
- Page 12 Table of Contents Table of Contents ............Assembly ..............Safety Information ............Operation ..............Warranty ................ Care and Cleaning ............Pre-Assembly ............Service Parts ............... Tools Required .............. Hardware Included ............Specifications ..............Package Contents ..........Safety Information Do not let children approach the product. DANGER: Do not stand on this product.
-
Page 13: Warranty
The manufacturer specifically disclaims any liability and shall not be liable for any consequential or incidental loss or damage, including but not limited to any labor/expense costs involved in the replacement or repair of said product. Contact the Customer Service Team at 1-888-HD-HUSKY or visit www.huskytools.com. HUSKYTOOLS.COM 3 ... -
Page 14: Pre-Assembly
Pre-assembly TOOLS REQUIRED Safety Phillips 10 mm. 1/8 in . Power goggles drill screwdriver socket drill bit HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Screw M4 x 10L Screw M6 x 12L Bolt 1/4" x 3/4" 10 mm/13 mm wrench SPECIFICATIONS Maximum capacity... -
Page 15: Package Contents
Pre-assembly (continued) PACKAGE CONTENTS Part Description Quantity Left pegboard panel Right pegboard panel Middle Pegboard panel Reinforcement panel Left Support post Right Support post HUSKYTOOLS.COM 5 Please contact 1-888-HD-HUSKY for further assistance . -
Page 16: Assembly
Insert the middle pegboard panel (C) to the left pegboard (A) and push it to the deepest position. Husky Mobile Workbench WARNING: Use special care to not over-tighten any of the screws to avoid damage to the pegboard or mobile workbench. - Page 17 1 2. Repeat step 11 to attach the left support post (E) and using two bolts (CC) to attach the reinforcement panel (D) . 1 3. Tighten all screws at this step. HUSKYTOOLS.COM 7 Please contact 1-888-HD-HUSKY for further assistance .
-
Page 18: Operation
Operation The peg holes will accommodate all standard size 1/8 in. and 1/4 in. peg hooks. Care and Cleaning □ To help protect this finish, do not allow harsh chemicals such as oil or grease to remain on the surface. Use a glass cleaner ®... -
Page 19: Service Parts
Service Parts Part Description Quantity Left pegboard panel Right pegboard panel Middle Pegboard panel Panel Reinforcement Left Support post Right Support post HUSKYTOOLS.COM 9 Please contact 1-888-HD-HUSKY for further assistance . - Page 20 Questions, problems, missing parts? Before returning to the store, call Husky Customer Service 8 a.m.-7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m. EST Saturday 1-888-HD-HUSKY HUSKYTOOLS.COM Retain this manual for future use.
