Summary of Contents for CUGGL EBONY DELUXE PUSHCHAIR

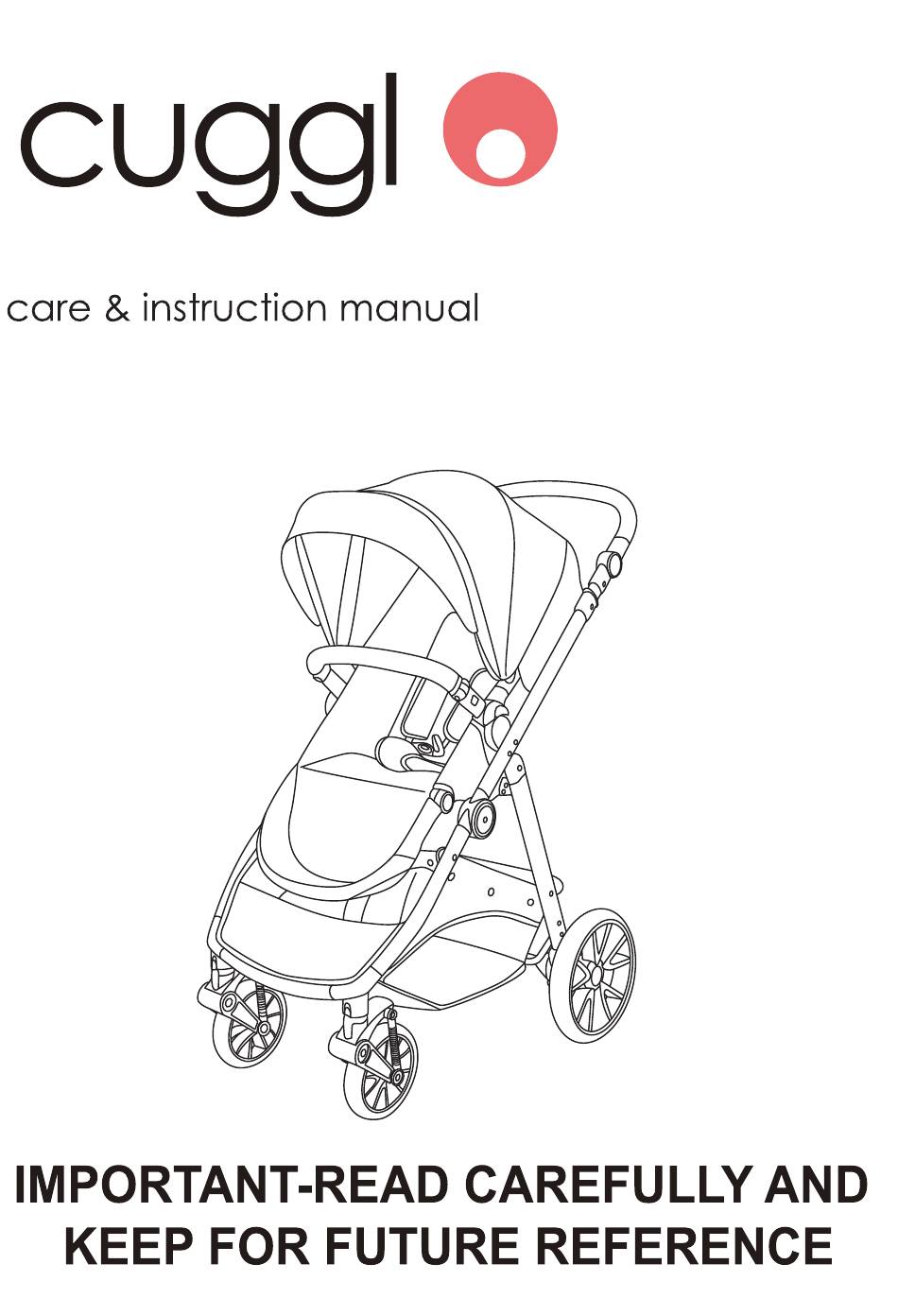

  • Page 1 CUGGL EBONY DELUXE PUSHCHAIR...
  • Page 2 Thank you for choosing our product. Please always read all the instructions provided carefully before use and remember the child’s safety may be affected if you do not follow these instructions. The pushchair is suitable from birth up to 15kg (approx. 36 months), never overload. ●...
  • Page 3: Care And Maintenance

    Care and Maintenance General . This pushchair was designed and manufactured with qualified materials and craftsmanship. Always check and inspect your pushchair regularly for: Worn parts,torn materials or stitching. Loose screws,bent or broken frame parts. Broken,damaged or missing parts. Should any of the above be evident do not use and contact the Helpline : 0345 640 2020 for advice.
  • Page 4 RAINCOVER FOOTMUFF 9593068...
  • Page 5: Name Of Parts

    Name of parts 9593068...
  • Page 6 SETTING UP THE FRAME Remove all the components from the box. To unfold the frame, locate the locking catch on the side of the pushchair and bend outwards to release it from the locking stud. Place your foot on the rear tube and fully lift the handle bar upwards and forwards until the hinge is fully engaged with a "Click"...
  • Page 7 ATTACHING THE SEAT Insert the seat unit connectors into the coresponding seat unit adaptors on the pushchair frame ensuring they are CLICK! CLICK! fully engaged before each use. You should hear a “click” Insert the front bumper bar connectors into the coresponding adaptors on the front of the seat unit ensuring that they are fully engaged before each use.
  • Page 8 BACKREST ADJUSTMENT The seat can be adjusted into upright, half-reclined and reclined positions. Lift the recline lever on the rear of the seat unit and rotate the seat into the desired position. FOOTREST ADJUSTMENT Press the button on both sides of the footrest simultaneously to adjust it to the desired position.
  • Page 9: Brake Operation

    FRONT WHEEL LOCK The front wheels are equipped with a swivel locking device. Slide the button on each of the wheels down to prevent the wheel from swivelling and slide the button back upwards to allow the wheels to swivel. BRAKE OPERATION To engage the brakes simply press down with your foot on the pedal located on the rear axle.
  • Page 10 TO FIT THE RAINCOVER Place the raincover over the hood and then cover the pushchair. Fasten the touch fasteners in position A on both sides of the pushchair. TO FIT THE FOOTMUFF Slide the footmuff over the footrest of the seat unit and pass it under the bumper bar.
  • Page 11 TO FOLD PUSHCHAIR Close the canopy by pushing the front edge backwards towards the rear of the seat unit. Pull the pushchair backwards to align the front wheels with the frame as per the images on this page. Ensure the seat unit is facing away from the parent before folding.
  • Page 12: Technical Specification

    Technical specification Product title CUGGL EBONY DELUXE PUSHCHAIR Argos Cat. No. 9593068 Supplier Ref. No. M6800H Age group 0-36M Weight suitability From birth up to 15kg Safety compliance Complies with EN1888-1:2018 Product weight 12.4kg Product unfolded size L90xW61xH115.5cm If you encounter any problems Producted in China.
