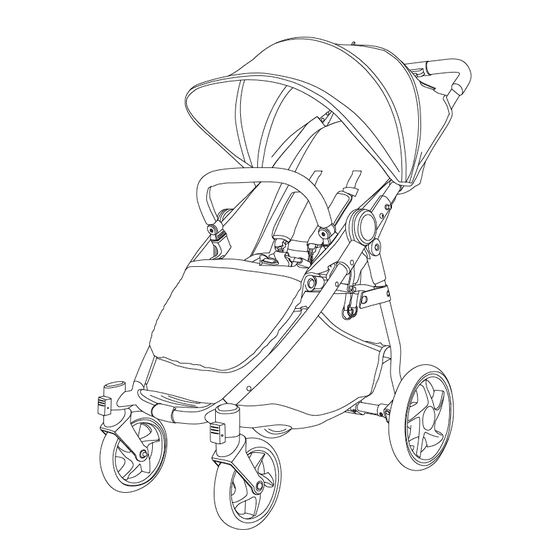

- Page 1 CUGGL CEDAR FOLD DOWN PUSHCHAIR 836/4810 Age:0-36 months Maximum user Weight:15kg Issue 1-27/04/18...
- Page 2 Bumper bar x1 Raincover x1 Thank you for choosing our product. Please always read all the instructions provided carefully before use and remember, your child’s safety may be affected if you do not follow these instructions.The stroller is suitable for child from 0-36 months.
- Page 3 canopy...
- Page 4 Step 1 To unfold the stroller Release the folding lock, pull the handle bar backwards until you hear the “click”. folding lock Step 2 Front wheel assembly 1. Slide front wheel brackets into front legs until you hear a “click” sound.
- Page 5 Step 3 Rear wheel assembly Fit the rear wheels on the axle until you hear a “click”. To remove the rear wheels, press the release button and pull the wheels outwards. Step 4 Bumper bar assembly To assembly the bumper bars. Push the ends of the bumper bars into “...
- Page 6 To lock the front wheels fixing lever fixing lever 1. The front wheels must be turned in the straight forward position, then push the fixing lever downwards until the button locks in place. 2. To release the wheels for free swivel, push the fixing lever upwards.
- Page 7 Use the safety belt Harness & Buckle: To release the harness: Press the buckles ① and pull them ② apart. To fasten the waist harness,insert both buckle clips into each side of the buckle until they "click” into correct position.To adjust the shoulder straps move the slides as shown.
- Page 8 Adjust the canopy Pull the hood forward by the front rim of the hood. For shade/weather protection, the hood can be unzipped further as shown. zipper...
-
Page 9: Adjust Backrest
Adjust backrest Squeeze the clasp on the back of the seat unit and pull downwards. When the seat unit has reached the desired position, release the trigger. To raise the seat unit, hold both straps with one hand and push the back of the seat unit with your other hand. - Page 10 Adjust footrest To adjust the footrest, press the both sides footrest adjust button and adjust the footrest to the correct position. Use the raincover Place the raincover over hood and then cover the stroller. Fasten the hook & loop straps position on the A and B as picture shows.
- Page 11 To fold the stroller Make sure the seats are in the upright position, the hood is retracted and the brakes are engaged. Slide the primary lock button (A) to the side and then squeeze the secondary lock button (B). Keep the secondary lock button held in and push up and forwards on the handle.
- Page 12 This pushchair was designed and manufactured with qualified materials and craftsmanship. Always use the safety harness. Worn parts, torn materials or Should any of the above be evident do stitching not use and contact the Loose screws, bent or broken Helpline: 03456 400 800 for advice.
