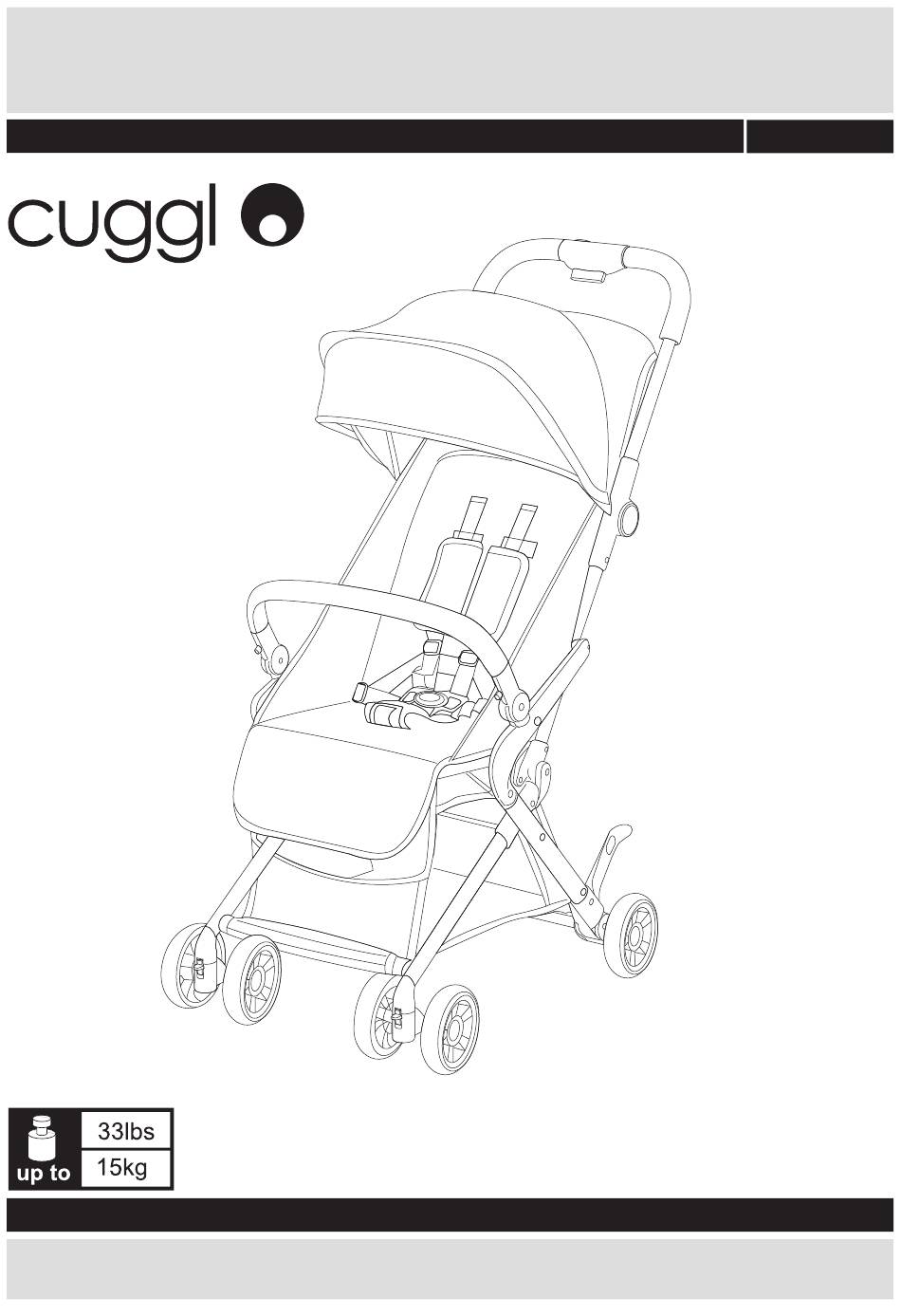

- Page 1 CUGGL WALNUT LIGHTWEIGHT STROLLER IMPORTANT- KEEP THE INSTRUCTIONS FOR FURTHER REFERENCE 837/3399 Suitable for children from 6 to 36 months Important-Please read the instruction fully before starting assembly If you need help or have further question, call the Customer Helpline 03456 400 800...
- Page 2 Important-Please read the instruction before assembly and keep it for further reference Thank you for choosing our product. Please always read all the instructions provided carefully before use and remember, your child’s safety may be affected if you do not follow these instructions. The stroller is suitable for children from 6 months to 36 months.
-
Page 3: Name Of Parts
Name of parts Handle bar Canopy Bumper bar Safety belt Leg-rest adjustment button Locking catch Storage basket Rear wheel Front wheel Components If you need help or have further question, 03456 400 800 call the Customer Helpline Please check if you have all the parts listed below before starting assembly Bumper bar Stroller Carry bag... - Page 4 Pull handle bar upwards Locking catch Locate the locking catch on one side of the pushchair and lift to release it from the locking stud. Pull the handle bar upwards first, and then pull the handle bar backwards. until it “clicks” into position. Note: check the frame whether locked before use it.
- Page 5 Assemble the bumper bar Insert the bumper bar into Attach the swivel wheels by the hole on the frame of both sides the pushchair, a click locating the wheel under the will be heard when each is frame tube. engaged. Put the wheels upwards until the wheels clicks into position.
- Page 6 Step 3 Slide the shoulder strap buckle ① into the housing of the waist strap buckle ②. Repeat for the other side. Insert ① ③ ④ the completed buckle ③ into the ② buckle housing ④ until it engages securely in place. Repeat for the opposite side.
-
Page 7: Bumper Bar
Step 6 Adjust the backrest: As shown, one hand hold the end of webbing strap, another hand pinch the adjusting buckle and pull it to move backrest to desired position. Bumper bar Press the buttons on both side of stroller, and then bumper bar can be released. -
Page 8: Folding The Stroller
Folding the Stroller To fold the pushchair, first slide the thumb trigger to the left, then squeeze the center button (fig A), and then push the handle bar downwards (fig B&C). Push the backrest board forwards and then downwards (fig D&E). The stroller will be fold smoothly. - Page 9 If you need help or have further question, call the Customer Helpline 03456 400 800...
