Linx Technologies FCTN-1 Series Data Manual

OEM DECODER MODULE DATA GUIDE
DESCRIPTION
The Linx FCTN-DEC1-xxx decoder module is
ideal for general-purpose remote-control and
command applications. When paired with a
matching Linx command module or Linx LC
Series or KH Series transmitter, the module is
capable of operation at distances up to 150ft.
The module is pre-authorized to meet FCC
requirements, thereby reducing costs and
speeding product introduction. Available in
315, 418 or 433.92MHz (418MHz standard),
this decoder module mounts directly onto
an OEM's PC board. The
receiver/decoder combination provides eight
switched outputs that correspond to the state
of the data lines on the transmitter's encoder.
Nine tri-state address lines are also provided
to allow up to 19,683 unique identification
codes. The module operates from 5VDC at
8mA typical. Header pins on 0.100" centers
allow direct or socketed connection to a user's
PCB. The integral antenna tilts and swivels to
allow maximum mounting flexibility.
FEATURES
■ Pre-Authorized for Immediate Integration
■ Complete RF to Data Solution
■ Convenient Through-hole Package
■ Low Power Consumption
■ Swivel Antenna for Mounting Flexibility
■ 8 Data/9 Address Encoder On-board
APPLICATIONS INCLUDE
■ General Remote Control
■ Keyless Entry
■ Garage / Gate Openers
■ Lighting Control
■ Call Systems
■ Home / Industrial Automation
■ Wire Elimination
Downloaded from Elcodis.com electronic components distributor
FCTN-DEC1-xxx

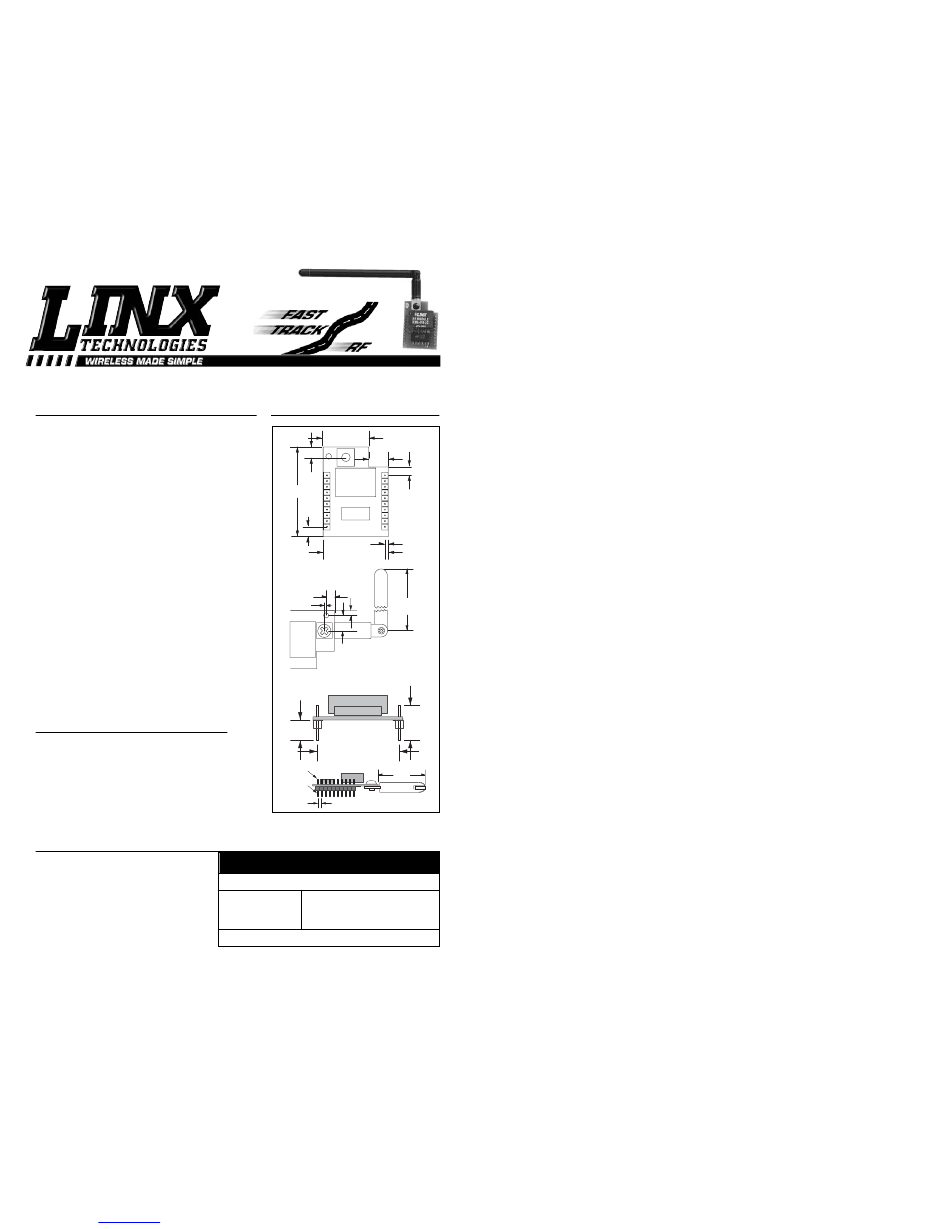

PHYSICAL DIMENSIONS
0.80
0.35"
0.20"
1 20
2 19
3 18
1.58"
4 17
5 16
6 15
7 14
8 13
9 12
10 11
0.170"
on-board
0.160"
0.100"
0.060"
0.300"
0.26"
1.02"
Pin Dia.
.032"
Pin Dia.
.025"
0.100" typ
Figure 1: Physical Dimensions
ORDERING INFORMATION
PART # DESCRIPTION
FCTN-DEC1-315 315MHz Decoder Module
FCTN-DEC1-418 *418MHz Decoder Module
FCTN-DEC1-433 433.92MHz Decoder Module
* = Standard Frequency
Revised 10/07/03
0.145"
.06"
1.15"
4.13"
(315-433MHz)
0.44"
1.04"
