Linx Technologies FCTN-MD09 Series Data Manual

OEM DECODER MODULE DATA GUIDE
DESCRIPTION
The Linx FCTN-MD09-XXX decoder module is
ideal for general-purpose remote control and
command applications. When paired with a
matching Linx command module or Linx LC
series transmitter, the module is capable of
operation at distances in excess of 300 ft.The
module is pre-authori zed to meet FCC
r e q u i r e m e n t s, thereby reducing costs and
speeding product introduction. Ava i l a ble in
315, 418 or 433.92 MHz (418MHz standard),
this decoder module mounts directly onto
an OEM's PC
receiver/decoder combination provides eight
switched outputs which correspond to the
state of the data lines on the transmitter's
encoder. Nine tri-state* address lines are also
p r ovided to allow up to 19,683 unique
identification codes. The module operates from
5 vDC @ 8 mA typical. Header pins on .100
centers allow direct or socketed connection to
a user's PCB. The integral antenna tilts and
swivels to allow maximum mounting flexibility.
FEATURES
P r e - Au t h o ri zed for Immediate Integra t i o n
Complete RF to Data Solution
Convenient Through-hole Package
Low Power Consumption
Swivel Antenna for Mounting Flexibility
8 Data/9 Address Encoder On-board
APPLICATIONS INCLUDE:
G e n e ral Remote Control
Keyless Entry
Garage / Gate Openers
Lighting Control
Call Systems
Home / Industrial Automation
Wire Elimination
FCTN-MD09XXX
board. The on-board
O R D E R I N G I N F O R M AT I O N
PART #
F C T N - M D 0 9 3 1 5
F C T N - M D 0 9 4 1 8
F C T N - M D 0 9 4 3 3
* = Standard Fr e q u e n c y

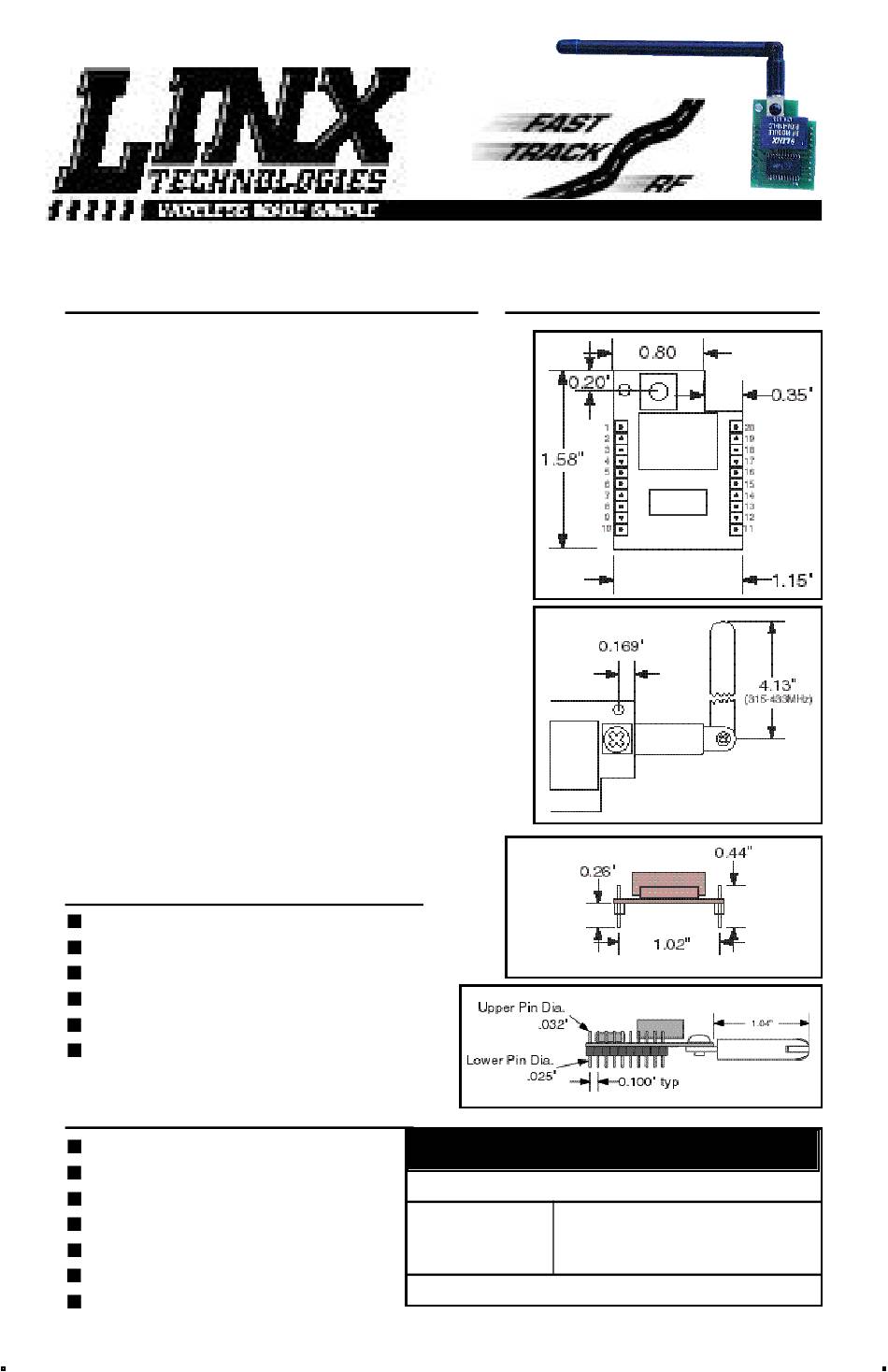

PHYSICAL DIMENSIONS
DESCRIPTION
315MHz Decoder Module
*418MHz Decoder Module
433.92MHz Decoder Module
