Linx Technologies FCTN-RLY4-315 Manual

WIRELESS MADE SIMPLE
4-POSITION RELAY FUNCTION MODULE DATA GUIDE
DESCRIPTION
The Relay Function Module is a member of
the Linx pre-certified OEM product line. The
modules have been tested for FCC and
Industry Canada compliance and can be
quickly customized to meet a specific OEM's
labeling requirements. This greatly reduces
the time and expense of bringing an RF-
based product to market. The Relay
Function Modules provide four latched or
momentary relay outputs that are capable of
switching external AC or DC powered loads
of up to 5 amps. The Relay Modules
incorporate a Linx LR Series receiver and an
on-board Holtek decoder IC. Selectable
addressing provides security and allows the
creation of 256 distinct transmitter / receiver relationships to avoid unwanted
interaction when multiple systems are in use. When paired with a compatible Linx
OEM Handheld transmitter or transmitter module, the Relay Function Module serves
as a reliable wireless switching device at distances of up to 1,000 feet.
FEATURES
FCC, Industry Canada pre-tested
Wide operational voltage
(5 to16VDC)
Dual power inputs
Long-life relays switch AC or DC
Flange-mount case
APPLICATIONS INCLUDE
General Remote Control
Motor Control
Garage / Gate Openers
Lighting Control
Call Systems
Home / Industrial Automation
Wire Elimination
Downloaded from Elcodis.com electronic components distributor
®
3.100"
3.200"
1.770"
4.700"
5.775"

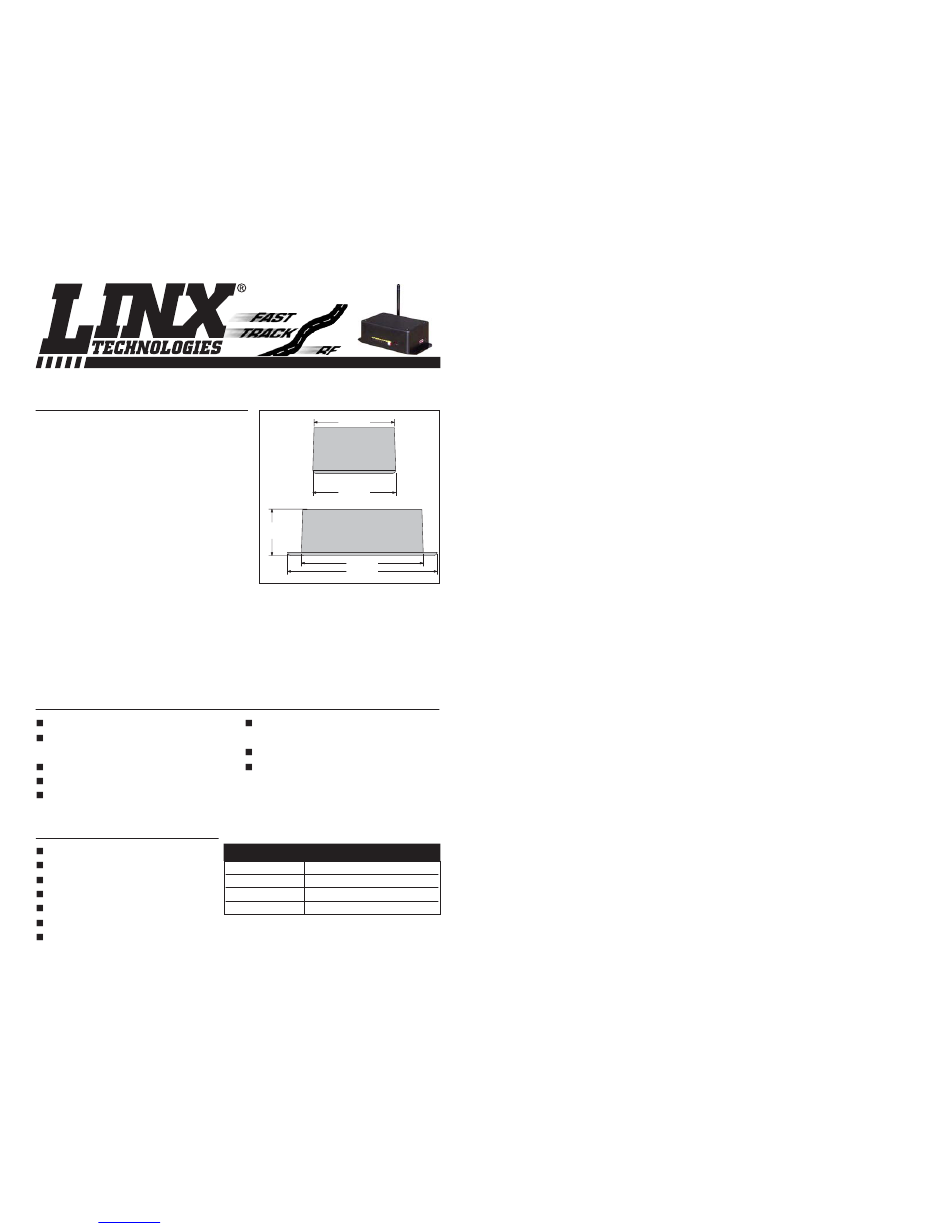

Figure 1: Package Dimensions
Quick-attach heavy-duty device
connectors
256 unique addresses
Can be cosmetically customized
for OEM applications
ORDERING INFORMATION
PART # DESCRIPTION
FCTN-RLY4-315 Relay Function Module - 315MHz
FCTN-RLY4-418 Relay Function Module - 418MHz
FCTN-RLY4-433 Relay Function Module - 433MHz
Revised 1/28/08
