Henkelman Boxer
Quick Start Guide

Prior to the First Use

Carefully read the safety instructions on the back side of this guide.
Check the oil sight glass to see if the amount of oil in the pump is sufficient.
If the amount of oil in the pump is insufficient, refill it.
See the user manual for more information.
4
1
2
3
5

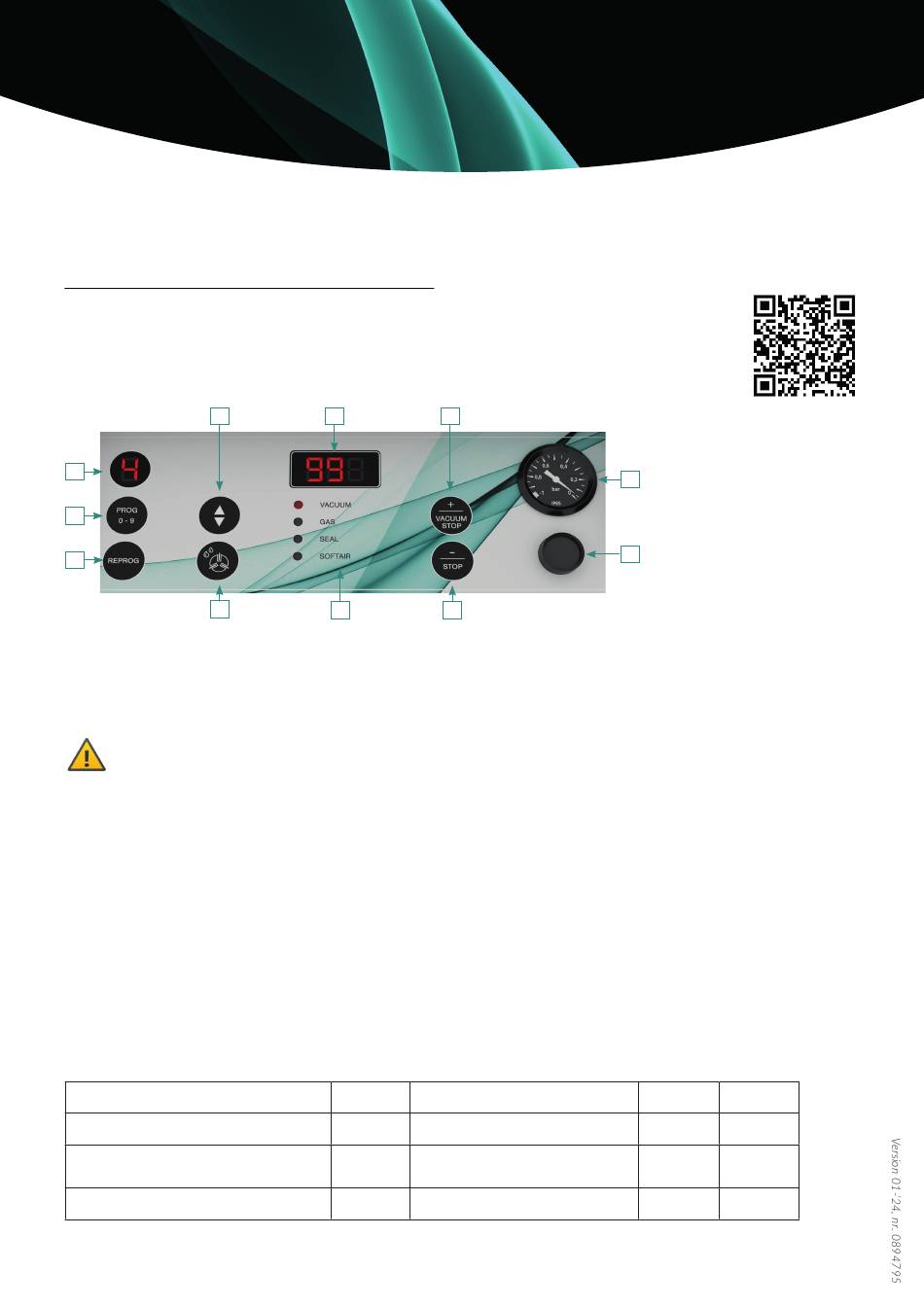

1. Program display: Shows the selected program.
2. PROG 0 – 9 button: This is used to select the desired program. You can select 10 different programs.
3. REPROG button: This is used to enable the programming mode. The parameters can be changed using the Cursor
key (4), the – / STOP button (8) and the + / VACUUM STOP button (9).
4. Cursor key: This key is used to operate the functions of the parameter display (6) and function display (7).
5. Pump cleaning programme button: This is used to activate the pump cleaning programme. Moisture can
condensate in the oil when the pump is running only short cycles or when you are packaging moisture-
containing products. This programme removes moisture from the oil of the vacuum pump. Run the pump
cleaning program daily to prevent moisture damage to your pump.
6. Parameter display: This display shows the current value of the active function during the program cycle or the set value of the
selected function when the machine is inactive. A red dot will light up in the bottom right if the Vacuum+ option is enabled.
7. Function display: The LED light in front of the function lights up if the function is active during the program cycle or
if the function is selected in the programming mode.
8. – / STOP button: This is used to interrupt the entire cycle during a packaging cycle. All functions are skipped and the
cycle is terminated. In the programming mode, the value of the selected parameter can be lowered using this button.
9. + / VACUUM STOP button: This stops the active function and proceeds to the next program step. In the
programming mode, the value of the selected parameter can be increased using this button.
10. Vacuum meter: Shows the pressure in the vacuum chamber. A value of -1 bar corresponds to 99% vacuum.
11. On/Off button: Serves to turn the control panel on or off.
Start the machine (11) and scroll through the pre-programmed programs (2) and/or pre-programmed settings (4) to make your settings.
The display (1) shows the program number and the display (6, 7) shows the programmed values. You can make adjustments by pressing
the REPROG key (3) and using the + and - keys (8, 9) to make changes. When the settings are finished, save with the REPROG key (3),
place the product in the machine in a suitable seal bag, close the lid and the process will start. For the best end result, we recommend
cooling the product to 2-4°C before packing. This will prevent the product from boiling.

Sample programs

Type of product
Solid products
Liquids or products containing liquids
Fragile or sharp products
* The vacuum rates listed are for machines with the sensor option. For time-controlled machines, you need to find
the best setting yourself, it depends on machine type and product volume.
6 9
7 8
Program Vacuum*
1 99%
2 97%
99% with Liquid Control (option)
3 99%
Scan the QR code
to download the
user manual
10
11
Seal Softair
2,2 s OFF
2,2 s OFF
2,2 s 5 s
