Central Machinery 59477 Owner's Manual

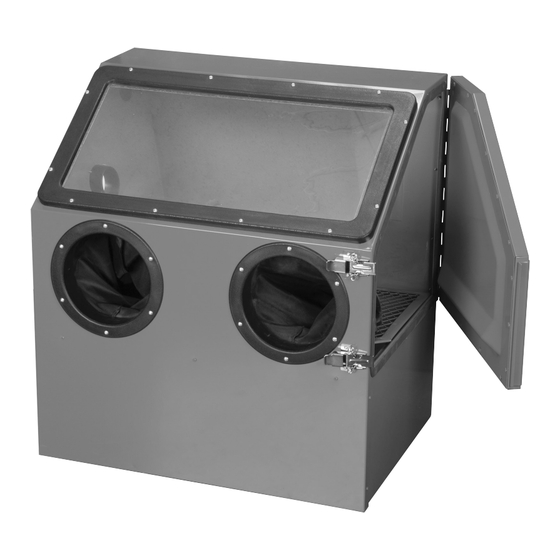

Benchtop abrasive blast cabinet
Hide thumbs

Advertisement

Quick Links

Owner's Manual & Safety Instructions
Owner's Manual & Safety Instructions
Save This Manual
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
operating, inspection, maintenance and cleaning procedures. Write the product's serial
back of the manual (or month and year of purchase if product has no number). Keep this manual and the
number in the back of the manual (or month and year of purchase if product has no number).
receipt in a safe and dry place for future reference.
Keep this manual and the receipt in a safe and dry place for future reference.
BENCHTOP ABRASIVE
email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
and undamaged. If any parts are missing or broken,
please call 1‑888‑866‑5797 as soon as possible.
please call 1‑888‑866‑5797 as soon as possible.
©
©
Copyright
Copyright
2022 by Harbor Freight Tools
2022 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Keep this manual for the safety warnings and precautions, assembly,
BLAST CABINET
Visit our website at: http://www.harborfreight.com
®
®
. All rights reserved.
. All rights reserved.
read this material before using this product.
Read this material before using this product.
Failure to do so can result in serious injury.
Failure to do so can result in serious injury.
SaVe tHiS ManuaL.
SAVE THIS MANUAL.
23e
59477

Advertisement

loading
Need help?

Need help?

Do you have a question about the 59477 and is the answer not in the manual?

Questions and answers

Related Manuals for Central Machinery 59477

Summary of Contents for Central Machinery 59477

  • Page 1 Keep this manual and the receipt in a safe and dry place for future reference. BENCHTOP ABRASIVE BLAST CABINET 59477 Visit our website at: http://www.harborfreight.com email our technical support at: productsupport@harborfreight.com When unpacking, make sure that the product is intact When unpacking, make sure that the product is intact and undamaged.

  • Page 2: Table Of Contents

    Indicates a hazardous situation which, if not avoided, could result in death or serious injury. Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. Addresses practices not related to personal injury. Page 2 For technical questions, please call 1-888-866-5797. Item 59477...

  • Page 3: Safety

    A dust mask, non‑skid safety shoes live wiring will shock the operator. and a hard hat must be used for the applicable conditions. 11. Wear heavy-duty blast gloves during use. Item 59477 For technical questions, please call 1-888-866-5797. Page 3...
  • Page 4 Page 4 For technical questions, please call 1-888-866-5797. Item 59477...
  • Page 5 Always verify prior to using the tool that the air source has been adjusted to the rated air pressure or within the rated air‑pressure range. SaVe tHeSe inStructiOnS. Item 59477 For technical questions, please call 1-888-866-5797. Page 5...
  • Page 6 Health Administration (MSHA). clothes at the work site. Shower and change into clean clothes before leaving the work site to prevent contamination of cars, homes and other work areas. Avoid skin exposure. Page 6 For technical questions, please call 1-888-866-5797. Item 59477...
  • Page 7 (such as tool as explained in this manual. tingling, numbness, and white or blue fingers), If abnormal vibration occurs, stop immediately. seek medical advice as soon as possible. SaVe tHeSe inStructiOnS. Item 59477 For technical questions, please call 1-888-866-5797. Page 7...
  • Page 8 NIOSH‑approved dust mask/respirator. at standard conditions WARNING marking concerning National pipe thread, tapered Risk of Explosion. National pipe thread, straight WARNING marking concerning Risk of Eye Injury. Wear ANSI‑approved eye protection. Page 8 For technical questions, please call 1-888-866-5797. Item 59477...

  • Page 9: Specifications

    30 lb components and controls Window (2) Glove ports (8) Door (15) Hopper (11) Door Latches (9) Siphon tube (12) Blast Gun (14) Siphon Hose (13) air Hose connector (12) Item 59477 For technical questions, please call 1-888-866-5797. Page 9...

  • Page 10: Setup

    For best results, use high‑flow fittings. allow the air tool to retain pressure and operate Minimize number of fittings and air hose length. accidentally after the air supply is disconnected. Page 10 For technical questions, please call 1-888-866-5797. Item 59477...
  • Page 11 • Compressors with increased pressure, flow or tank size will increase run time. • Improperly sized fittings and hoses may reduce air pressure and run time. Item 59477 For technical questions, please call 1-888-866-5797. Page 11...
  • Page 12 Page 12 For technical questions, please call 1-888-866-5797. Item 59477...
  • Page 13 Item 59477 For technical questions, please call 1-888-866-5797. Page 13...

  • Page 14: Operation

    11. Holding the Blast Gun so that it is pointing end onto the Blast Gun (14). away from you, open the shut‑off valve. If leaking is detected, disconnect the air hose and repair before use. Page 14 For technical questions, please call 1-888-866-5797. Item 59477...
  • Page 15 4. Secure loose workpieces using a vise or clamps (not included) to prevent movement while working. 5. There must not be hazardous objects (such as utility lines or foreign objects) nearby that will present a hazard while working. Item 59477 For technical questions, please call 1-888-866-5797. Page 15...
  • Page 16 Use even passes of the Gun to remove rust, body filler, or other soft materials. Page 16 For technical questions, please call 1-888-866-5797. Item 59477...

  • Page 17: Maintenance

    Hopper is empty. 8. Push the Gloves back into the Blast Cabinet. 9. Reassemble the Siphon Hose, Siphon Tube and Blast Gun and fill the Hopper with new blasting medium. Item 59477 For technical questions, please call 1-888-866-5797. Page 17...
  • Page 18 Nozzle Gasket. 5. Screw the Nozzle Cap Nut back onto the Adapter to secure the Nozzle Gasket and Nozzle in place. Gun Body nozzle nozzle Lock air Jet Page 18 For technical questions, please call 1-888-866-5797. Item 59477...
  • Page 19 Housing heats during use. Worn parts. Have qualified technician inspect internal mechanism and replace parts as needed. Follow all safety precautions whenever diagnosing or servicing the tool. Disconnect air supply before service. Item 59477 For technical questions, please call 1-888-866-5797. Page 19...

  • Page 20: Parts List And Diagram

    If product has no serial number, record month and year of purchase instead. note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. Specify UPC 193175471888 when ordering parts. Page 20 For technical questions, please call 1-888-866-5797. Item 59477...
  • Page 21 Diagram - Blast cabinet Item 59477 For technical questions, please call 1-888-866-5797. Page 21...
  • Page 22 O‑Ring Handle Round Pin O‑Ring Round Pin Cover Screw note: When ordering replacement parts from this list, the ″A″ suffix must be included in order to get the correct part. Page 22 For technical questions, please call 1-888-866-5797. Item 59477...
  • Page 23 Diagram - Blast Gun Item 59477 For technical questions, please call 1-888-866-5797. Page 23...

  • Page 24: Warranty

    Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
