Antenna Installation Instructions; A2C Wifi Module - Hunter ANTEXTKIT Installation Manual

A2C-WIFI Module
1. Remove existing antenna from the A2C-WIFI
module
2. Connect male end of the extension cable to the
A2C-WIFI module
3. Route the cable out of the cabinet to desired
mounting location
4. Feed the other end of the cable up through
the bottom of the antenna mounting base and
thread on the original antenna

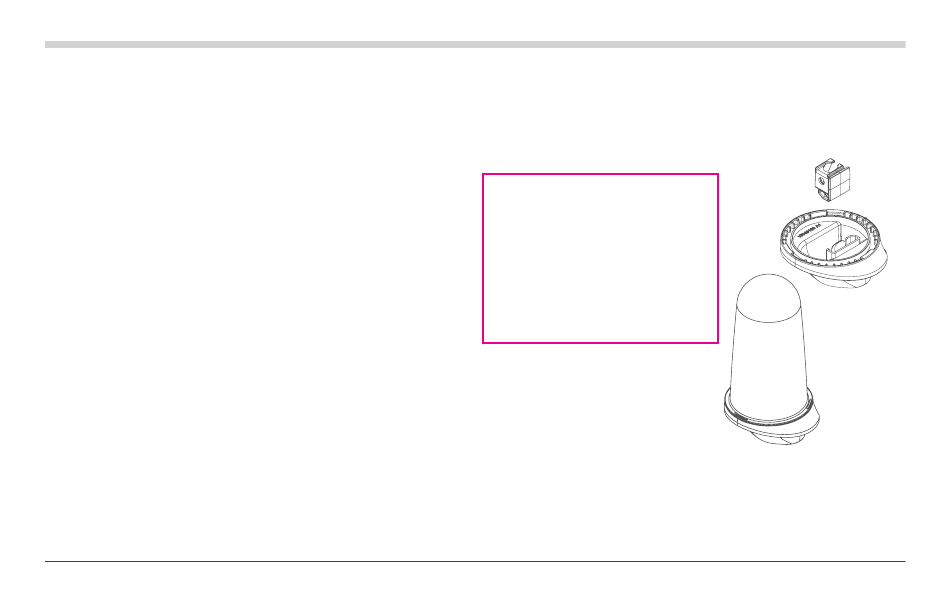

5. Position the A2C antenna mount adapter (item
# 3) as shown, and secure the antenna in place
using the adapter
6. Insert the antenna mount adapter within the
mounting base
7. Attach the antenna mount cover to the base by
twisting the two pieces together clockwise
