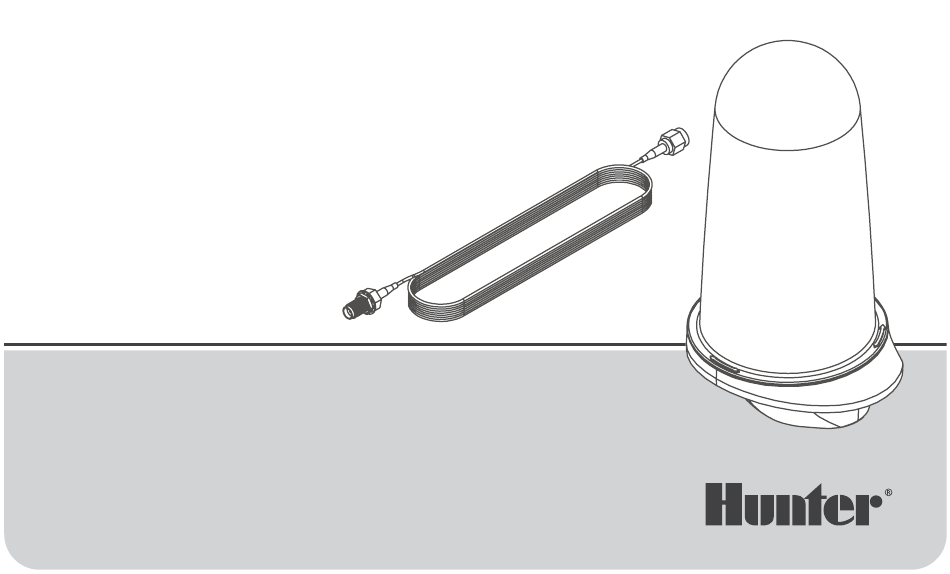

- Page 1 ANTEXTKIT INSTALL GUIDE Universal Antenna Extension Kit for Wi-Fi, cellular, and LoRa radio communications...
-
Page 2: Table Of Contents
The Universal Antenna Extension Kit is beneficial Components for improving line-of-sight wireless communication for Wi-Fi, cellular, and LoRa radio communications. Mounting This kit is for use with a variety of Hunter antennas and wireless modules: Antenna Installation Instructions A2C WIFI Module • Wi-Fi •... -
Page 3: Components
Components Components Item Description Antenna Mount Base Antenna Mount Adapter ➍ A2C-WIFI Antenna Mount Adapter ➑ ➐ Antenna Mount Cover 9' (3 m) Cable Extension Wall Mounting Screws and Anchors ➌ SMA Adapter A ➋ (RP-SMA Male x SMA Female) ➎... -
Page 4: Mounting
PVC pipe, or it can be mounted to a wall using the included screws and wall anchors. It is recommended to run the extension cable in electrical conduit or PVC pipe, to prevent any damage to the wire and/or connectors. hunter.help/ANTEXTKIT... -
Page 5: Antenna Installation Instructions
Antenna Installation Instructions A2C-WIFI Module 1. Remove existing antenna from the A2C-WIFI module 2. Connect male end of the extension cable to the A2C-WIFI module 3. Route the cable out of the cabinet to desired mounting location 4. Feed the other end of the cable up through the bottom of the antenna mounting base and thread on the original antenna 5. - Page 6 6. Reinstall the Wi-Fi antenna and insert the antenna mount adapter in place within the mounting base 7. Attach the antenna mount cover to the base by twisting the two pieces together clockwise hunter.help/ANTEXTKIT...
-
Page 7: Acc2 Cellular (A2C-Ltem)
Antenna Installation Instructions ACC2 Cellular (A2C-LTEM) 1. Remove existing antenna from the A2C-LTEM module 2. Connect male end of the extension cable to the A2C-LTEM module 3. Route the cable out of the cabinet to desired mounting location 4. Feed the other end of the cable up through the bottom of the antenna mounting base and thread on the original antenna 5. -
Page 8: Wvl Lora Radio (Wvom, Wvom-E)
6. Reinstall the WVOM antenna and insert the antenna mount adapter in place within the mounting base 7. Attach the antenna mount cover to the base by twisting the two pieces together clockwise hunter.help/ANTEXTKIT... - Page 9 Troubleshooting Guide Problem Cause Solution Rain or Freeze • Rain Sensor Bypass Set the Controller Bypass Switch in the “Active” shutoff not Switch on the position. Remove activating Controller is set to the jumper plate. "Bypass" • Remove jumper plate that is bridging the two SEN terminals on the controller...
-
Page 10: Notices
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will hunter.help/ANTEXTKIT... - Page 11 Notices Innovation, Science and Economic Development Canada (ISED) Hereby, Hunter Industries declares that Compliance Notice the radio equipment type model WSS- SEN (comprised of WSSTR and WSSR) is in This device contains licence-exempt compliance with Directive 2014/53/EU. transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt...
