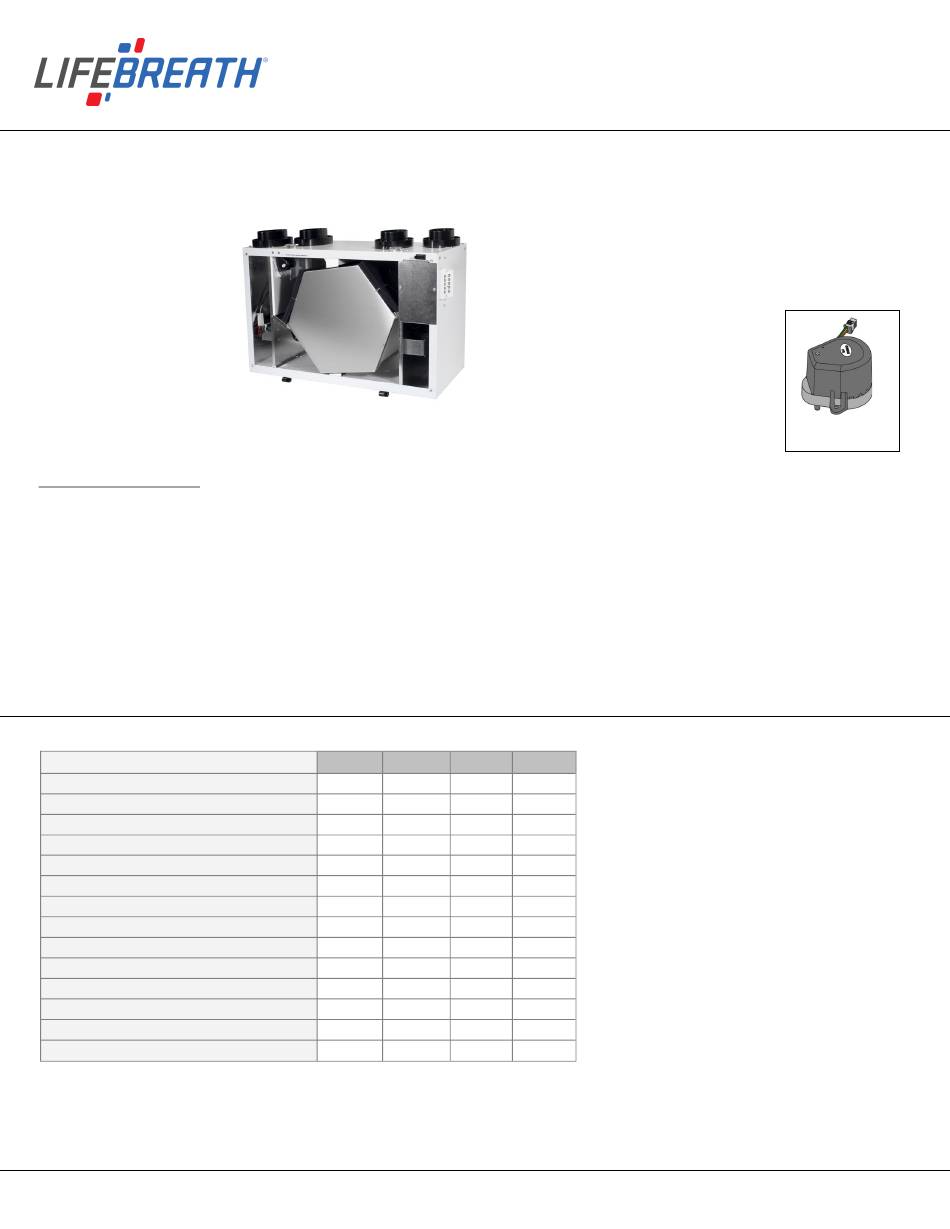

Lifebreath RNC5-HEX-TPD Manual

Lifebreath's best just got better!
Lifebreath has redesigned our timeless and most popular compact workhorse HRV to
now include our patented optimum efficiency HEX aluminum core!
The new model was purposefully
designed to provide the highest SRE
(Sensible Recovery Efficiency)
ratings for Energy-Efficient home
programs/Building Packages. The
RNC5-HEX-TPD offers the residential
new construction market all the
convenient features to meet or
exceed project requirements.
Contractors will appreciate the
RNC5-HEX-TPD as it is very simple to
install, balance and service and is
backed by our 5 year warranty.
Lifebreath offers easy to use basic and deluxe digital control options along with our
industry leading wireless timers (DET02) to save time and money.
RNC5 HEX TPD features include

Patented aluminum HEX core with Lifetime Warranty

Sensible Recovery Efficiency (SRE) of 75% at 0°C

Intelligent damper motor with "Ice Breaker technology" - exclusive to
Lifebreath

50-110 CFM top port model

Three selectable high speed settings

Recirculating Damper Defrost

Multiple control options available

Energy Star qualified

Integrated drain
LIFEBREATH CONTROL OPTIONS
FEATURES
5 speed fan operation on each mode
2 speed fan operation (Low/High)
Continuous low speed fan operation
Humidity control through adjustable Dehumidistat
Large digital LCD screen
LED status indicator lights
Continuous Ventilation
Continuous Recirculation
20 ON/40 OFF
10 ON/50 OFF
20 ON/40 Recirculation
20/40/60 min. High speed override button
Compatible with 99-DET02 Wireless Timer
3 wire connection
Accessory Options
99-190 Dual Hood—One 6 in (152 mm) opening for supply and exhaust.
Tested by: National Research Council
Program: Building Regulations for Market Access
Report Number: A1-007793, Report Date: 15 February 2016
Found to comply with requirement as set in the NBC
Manufacturer reserves the right to change specifications without notice.
ENGINEERING DATA
Termally Conductive, Patented Aluminum HEX Core
Counter-flow heat recovery core transfers heat between two airstreams. It is easily
removed for cleaning or service
Motors and Blowers
Each airstream has an independent centrifugal blower with multiple fan speed
operation.
Intelligent Defrost Damper Motor







Filters
Washable air filters in exhaust and supply airstreams.
Mounting the HRV
Adjustable hanging straps supplied with unit for easy installation.
Case
20 gauge prepainted galvanized steel for superior corrosion resistance, insulated to
prevent exterior condensation.
Installer Selectable High Speed Settings
Adjustable DIP switches are located on the circuit board, Hi3 is the factory setting.
Refer to the installation manual for the adjustment instructions.
Electronics
Main control can be wall mounted in a central location. 3 wire 20 gauge (min.) 100
ft. length (max.)
99-DXPL02 99-BC02 99-BC03


  
  

 
  
 


 

  
  
Accessory Options
99-163 Duct Heater w/ Electronic SCR Thermostat—1 kW, 6 in (152 mm).
99-185 Weatherhoods—Two 5 in (127 mm).
Visit us at www.lifebreath.com
RNC5-HEX-TPD

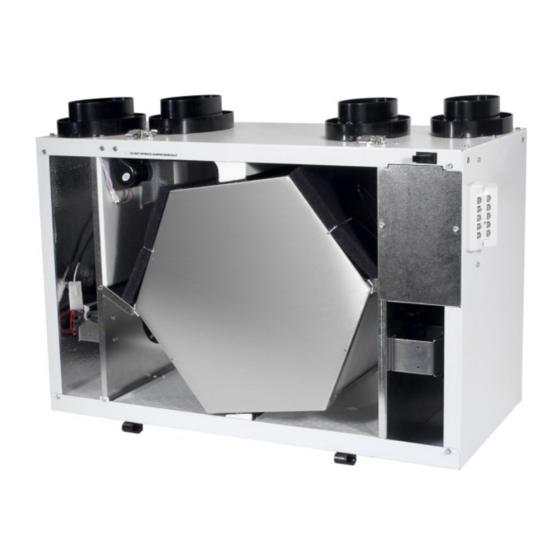

HEAT RECOVERY VENTILATOR
Smart damper motor with integrated circuit board
Energy efficient DC motor
Power saving standby mode when not cycling
Integrated ice breaker technology
Temperature compensated torque for reliable
operation in any application
Auto-sensed memory storage of opened and closed
positions
Soft sealing for extended part life
TIMER OPTIONS
99-BC04 99-DET01
Lifebreath 20/40/60 Minute Timer
Initiates high speed Ventilation for 20,40 or 60 minutes.

3 wire connection.

99-DET02
Wireless Lifebreath 20/40/60 Minute Timer
Initiates high speed Ventilation for 20,40 or 60 minutes.

Wirelessly connects to main control for ease of installation.

40 ft. approximate range.
** Exclusive to Lifebreath **
99-RX02
Wireless Lifebreath Repeater
Extends range of 99-DET02 Wireless Timers. Plugs into 120V

power outlet. Wirelessly connects to main control and 99-
DET02. Install at halfway point between timer and main wall

control if timer is out of range.

Intelligent Defrost
Damper Motor
** Exclusive to Lifebreath **
69-RNC5-HEX-TPD (12/06/16)
