Cub Cadet 01008371 15HP Z-Force 44 Illustrated Parts List

Cub Cadet 01008371 15HP Z-Force 44 Illustrated Parts List

Hydrostatic zero-turn residential riding mower
Hide thumbs

Advertisement

Table of Contents

Hydrostatic Zero-Turn
Residential Riding Mower

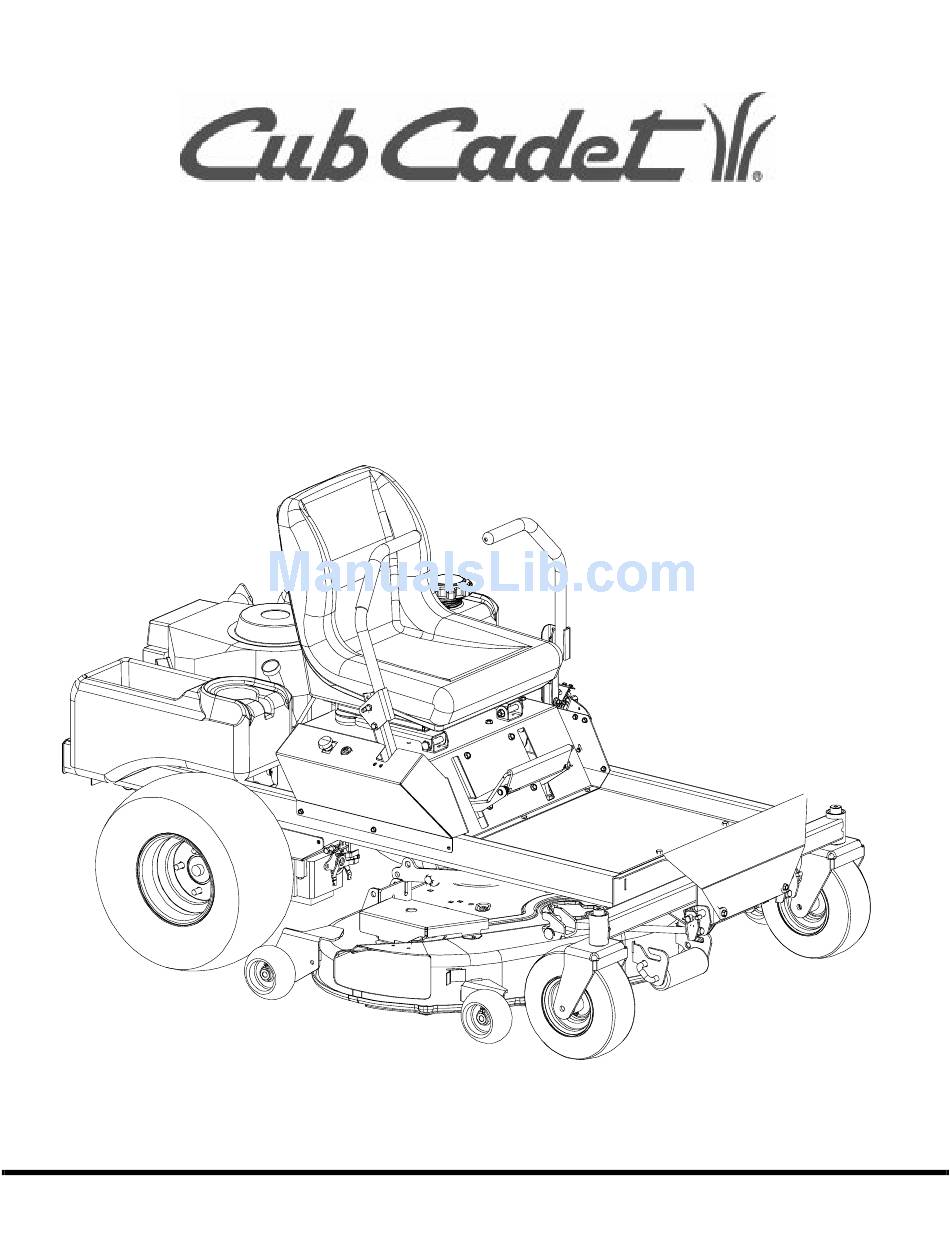

ILLUSTRATED PARTS LIST

Turf Equipment
MODEL
15HP Z-Force 44
53AA5D2L100
18HP Z-Force 44
53AA5A5L100
