BACK BAR COOLER
INSTRUCTION MANUAL
READ THIS INSTRUCTION MANUAL COMPLETELY
service@cotlin.top
BEFORE USING THIS PRODUCT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WX-BBC-209 and is the answer not in the manual?

Questions and answers

Summary of Contents for COTLIN WX-BBC-209

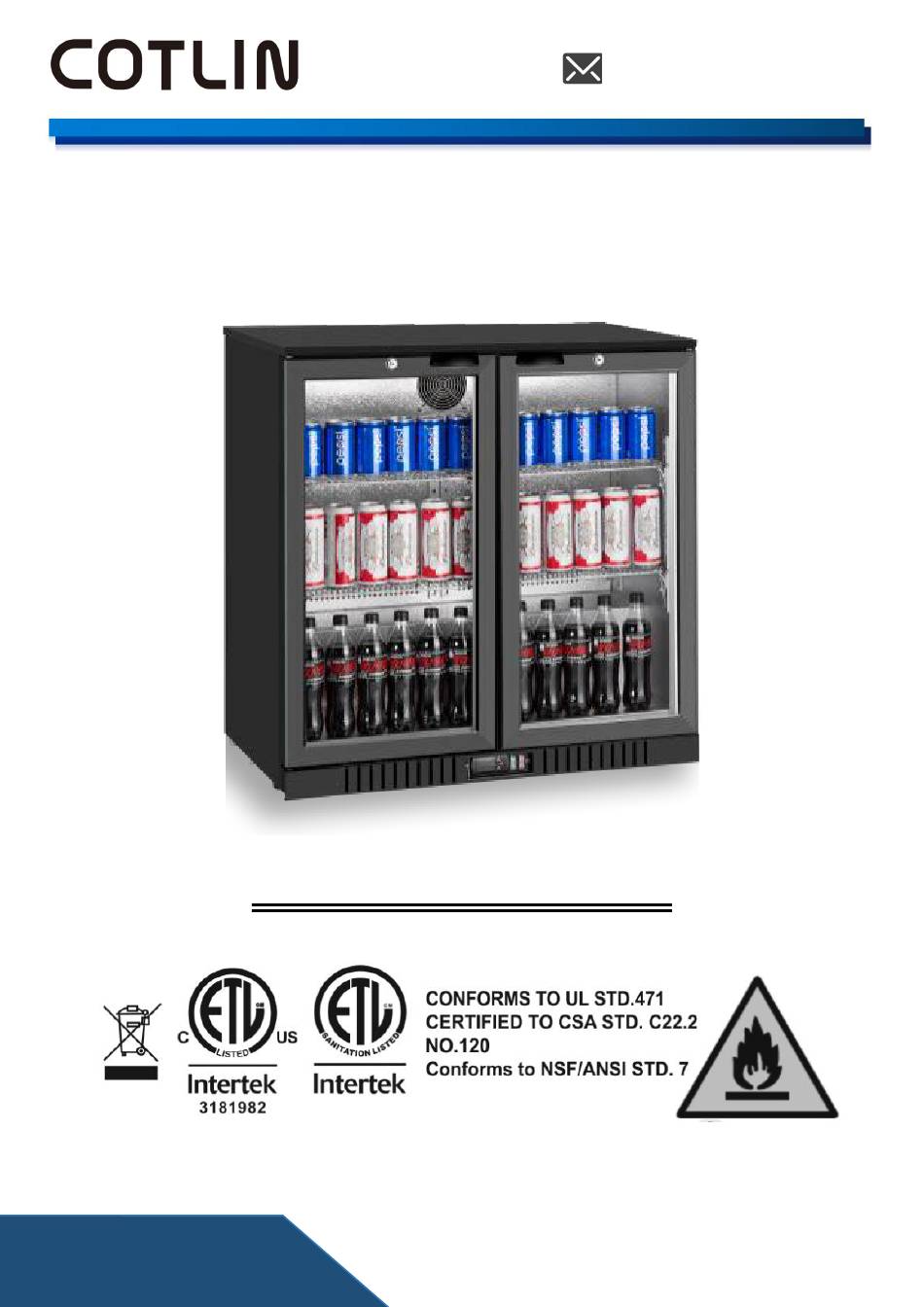

  • Page 1 BACK BAR COOLER INSTRUCTION MANUAL READ THIS INSTRUCTION MANUAL COMPLETELY service@cotlin.top BEFORE USING THIS PRODUCT...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION ........................1 Technical Specifications ....................2 Details of Product ......................2 SAFETY PRECAUTIONS ......................3 Refrigerant Safety & Warning Information ............... 3 Basic Safety & Warning ....................3 Precautions for Installation ....................5 Precautions for Use ......................6 INSTALLATION ........................9...
  • Page 3: Introduction

    INTRODUCTION A great addition to any operation with bar service, this back bar cooler is the perfect place to chill bottles of beer and cider. Featuring glass doors, durable construction, and eco-friendly refrigerant, this back bar cooler makes it easy to provide patrons with their favorite beverage quickly and easily.
  • Page 4: Technical Specifications

    Technical Specifications Model WX-BBC-209 Capacity 7.4 cu.ft Voltage 110V/60HZ Dimensions(L*W*H) 21.18” x 20.66” x 69.76” Weight 130LBS/59KG Cooling System Fan cooling Refrigerant R600a Temperature Range 32℉-50℉ Defrost Automatic Climate Class ST ~ T Door No & Type 2 Hinged Glass Door...
  • Page 5: Safety Precautions

    SAFETY PRECAUTIONS This manual contains the product’s basic knowledge, use instruction, fault diagnosis and basic trouble shooting methods. In order to better understand and use this product, please take good care of this manual and read it carefully. The purpose of the safety precautions in this manual is to ensure safe and correct use of the unit to minimize risks that could cause serious damage and injury.
  • Page 6 The appliance shall be disconnected from its power source during cleaning or maintenance and when  replacing parts. When the cooler will be not be used for a long time, disconnect the power and clean it. Please examine ...
  • Page 7: Precautions For Installation

    The symbol is a warning and indicates the refrigerant and insulation blowing gas are flammable. Warning - Risk of fire / flammable materials. Warning - Do not store explosive substances such as aerosol cans with a flammable propellant in the unit.
  • Page 8: Precautions For Use

    Precautions for Use Never splash water directly onto the All repairs, disassembly and modifications product or wash with water as short- should be performed only by qualified circuit and electrical leakage could result. technicians. Attempting to perform these yourself could result in a fire, malfunction, and injury.
  • Page 9 Install the unit in a location where the If you find gas leakage,please don't touch floor is sturdy enough to support the load the appliance. Turn it off and open the of the unit. If the floor is not sturdy doors and windows for ventilation.Gas...
  • Page 10 Grasp the handle when closing the door. Do not push hand against or apply Holding at other positions could result in excessive force to glass surfaces as the pinched fingers and injury. glass could break and cause injury. When disconnecting the power cord plug...
  • Page 11: Installation

    INSTALLATION Guides to Choose Location Due to the fact that the unit has a glass door, its performance is highly influenced by environmental conditions. To minimize the effects on the unit’s performance, the following are recommended: The appliance must be positioned on a flat and stable surface. If the surface is uneven, the unit may ...
  • Page 12: Electrical Safety

    Electrical Safety Be sure to follow the National Electrical Code, as well as local codes and ordinances, when installing  the receptacle. Before your new unit is connected to a power supply, check the incoming voltage. Please refer to the ...
  • Page 13: Operation

    OPERATION Before Use Remove shipping package, tape, etc, and leave doors open to ventilate for a while.  The unit is cleaned before shipment. However, clean the compartment interior using warm water then  dry it with a soft-cloth after delivery, for the glass parts only use specific products, avoiding the use of water which can leave on the glass residues.
  • Page 14 Enter to the Administrator Menu Setting When it displays the code St, press the key ,display the code Po, then press Set key, display 00, at this time, press to input the password of administrator menu. Press Set key again to confirm the password input, and the controller will automatically verity the correctness of password.
  • Page 15: Placing Items In The Showcase

    Placing Items in the Showcase This showcase employs a forced circulation of cold air system. If circulation of cold air is obstructed, the items will not be adequately refrigerated. Pay attention to the following points: Do not let items obstruct the cold air inlet and suction outlet.
  • Page 16: Maintenance & Cleaning

    MAINTENANCE & CLEANING The smooth operation and life of the equipment are mainly determined by correct and regular maintenance. It is much easier to clean on a regular basis than to have to remove stains once they have built up.
  • Page 17: Maintenance

    Wash door gaskets on a regular basis. Simply remove the door gasket from the frame of the door, soak  it in warm water and soap for thirty (30) minutes, then dry with soft cloth and install. NOTE: Check door gaskets for proper seal after they are replaced.
  • Page 18: Trouble Shooting

    TROUBLE SHOOTING Fault Cause Resolution 1. Electronic temperature Open traverse or bad connection Check wires to ensure a good connection   controller dis-function/flicker Have a fault on indicator Change the electronic controller   Open traverse or bad connection Check wires to ensure good connection ...
  • Page 19: Procedures Of Replacing Parts

    PROCEDURES OF REPLACING PARTS Change Starter for Light Step 1 Remove back shell, find the faulted starter, press slightly and rotate counterclockwise until the starter can be taken out. Step 2 To insert the new starter into the holes, press slightly and rotate clockwise until the starter is fully installed.
  • Page 20: Change Light Tube

    Change Light Tube Step 1 Step 2 Step 3 Check if there is a screw in Unplug the butt end of the Replace the new LED light, the middle of the light cover LED light, unscrew the fixing connect the butt end, put the...
  • Page 21: Change Air Fan

    Change Air Fan Step 1 Step 3 Step 2 Remove screws on the fan Remove these 4 screws and Remove the screws of the board, put the whole board take off the fan cover. sensor, take off it and the down slowly, and disconnect fixed clip.
