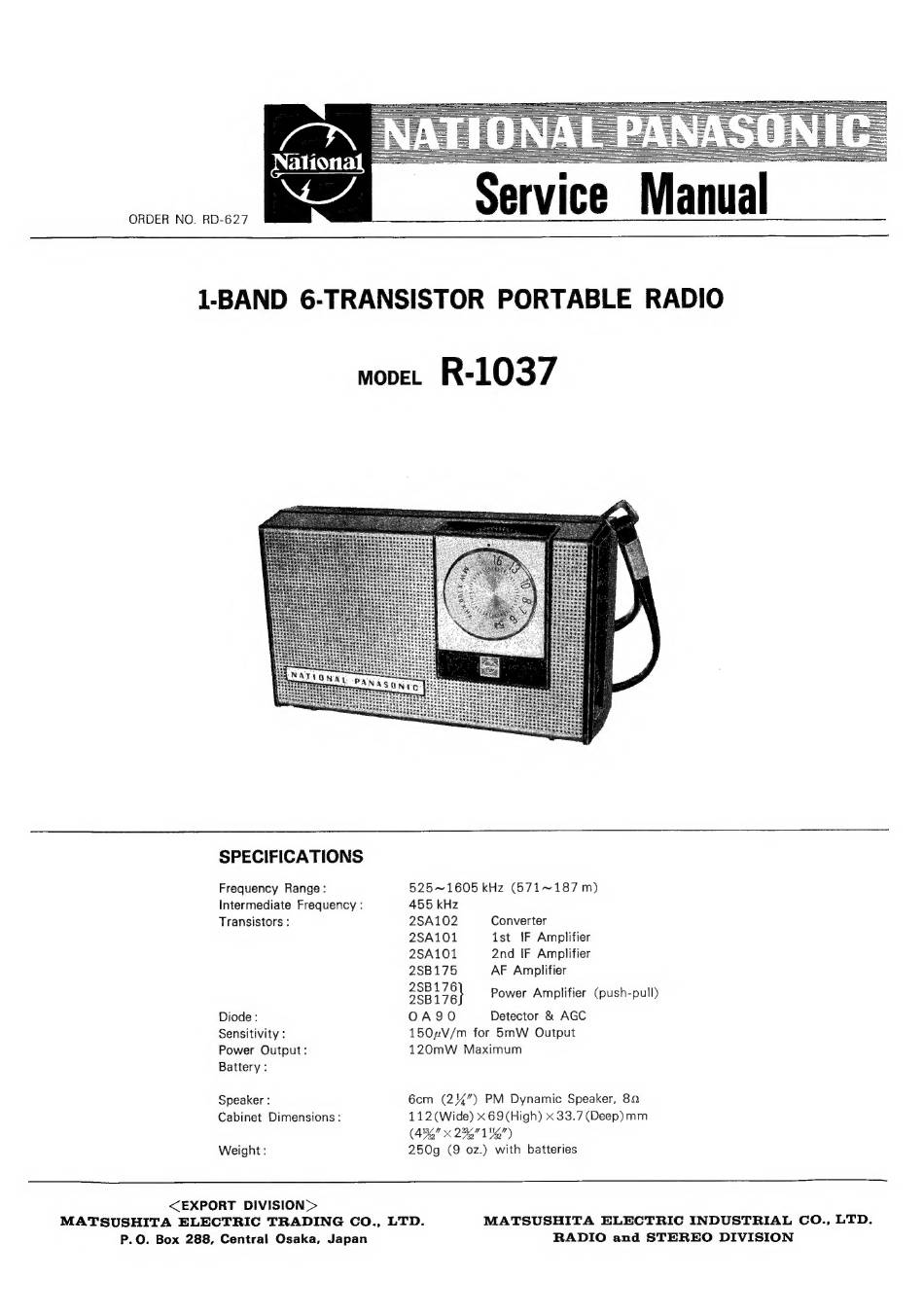

Panasonic R-1037 Service Manual

Service Manual
ORDER NO. RD-627
1-BAND 6-TRANSISTOR PORTABLE RADIO
MODEL R-1037
SPECIFICATIONS
Frequency Range: 525~1605 kHz (571~187 m)
Intermediate Frequency : 455 kHz
Transistors : 2SA102 Converter
2SA101 1st IF Amplifier
2SA101 2nd IF Amplifier
2SB1i175 AF Amplifier
Sec i7et Power Amplifier (push-pull)
Diode: OAIN Detector & AGC
Sensitivity : 150nV/m for 5mW Output
Power Output: 120mW Maximum
Battery :
Speaker : 6cm (2%") PM Dynamic Speaker, 82
Cabinet Dimensions: 112(Wide) x 69(High) x 33.7 (Deep) mm
(469 x 2347106")
Weight: 250g (9 oz.) with batteries
<EXPORT DIVISION>
MATSUSHITA ELECTRIC TRADING CO., LTD. MATSUSHITA ELECTRIC INDUSTRIAL CO., LTD.
P.O. Box 288, Central Osaka, Japan RADIO and STEREO DIVISION
