To use the in-wall amplifier quickly and correctly, please read this user manual carefully and keep
it properly.
Note: The appearance and interface icons and pictures of the product are for reference only.
Please refer to the actual product for details.
Web.: www.surpass-audio.com
Ⅰ. Package Accessories
User Manual x 1
Bracket x 1 set
Ⅱ. Basic Parameters
Product
System
RAM
Power Supply
Output Impedance
Frequency Response
Remote Control
Wire Box

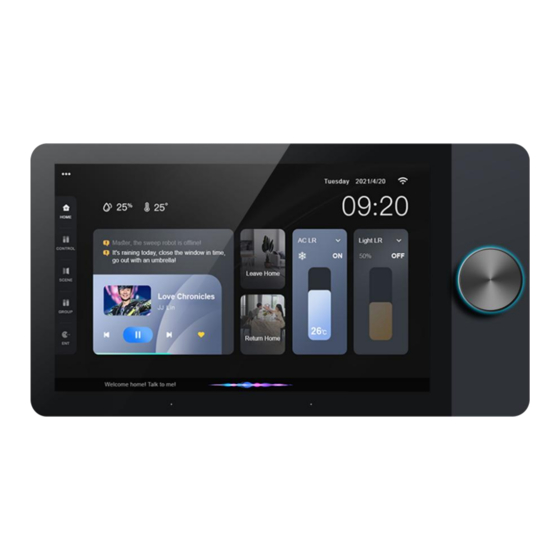

Smart Music Controller
SP-PW8225T
User Manual
Email: info@surpass-audio.com
Screws × 4pcs
8'' in-wall amplifier
Android 8.1
2GB
AC110-250V
4-8 ohms
20Hz-20KHz
Support
80*80*57mm × 2pcs
Resolution
CPU
ROM
Output Power
THD
Audio S/N Ratio
Wi-Fi
Product Size
1280*800 IPS
Quad core Cortex 1.5GHZ
8GB
2*（10-25W）（MAX）
0.03%(1W,1KHZ）
98dB
Support
250*133*11MM
Advertisement
Table of Contents
Related Manuals for Surpass SP-PW8225T
Summary of Contents for Surpass SP-PW8225T
- Page 1 Smart Music Controller SP-PW8225T User Manual To use the in-wall amplifier quickly and correctly, please read this user manual carefully and keep it properly. Note: The appearance and interface icons and pictures of the product are for reference only. Please refer to the actual product for details.
- Page 2 Ⅲ. Product Introduction Ⅳ. External Interface Diagram External interface description 1、Knobs: according to the software design you can adjust lights, air conditioning, curtains, volume, etc. 2、MICRO USB: external U disk; maximum support 32G. 3、TF card, TF card can be inserted, maximum support 32G. 4、Keys: long press to turn on/off, short press to lock screen/receive lock.
- Page 3 Ⅵ. Installation Instructions 1. Pre-embed attached 80*80*57mm × 2pcs back cover. Back cover depth is 57mm. 2. Tighten the bracket with the bracket screw on the back cover. 3. Tighten the wire inside the back cover to the corresponding function terminal on the device. Then insert the terminal into the terminal post.
- Page 4 2》Try to bring the distance closer to eliminate the environmental noise factors. 3》Check whether there is debris on the sound pickup hole on the surface of the device, which is blocked. GUANGZHOU SURPASS AUDIO CO., LIMITED. No.347 Tiannan Street,Tanshan,Hualong Town,Panyu,Guangzhou,China 511434 Web.: www.surpass-audio.com...
Need help?
Do you have a question about the SP-PW8225T and is the answer not in the manual?
Questions and answers

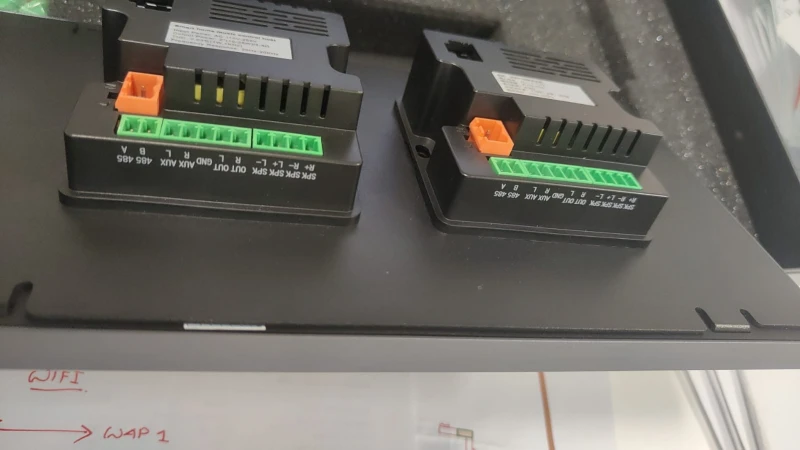

Can we program the two controllers seperately for the speakers...means in one speaker controller one music and the other controller another music? like two different zones...if so is there any videos to show the setup?
The Surpass SP-PW8225T has two speaker outputs labeled as "amplifier1/amplifier2," but the manual does not specify whether these can be programmed separately to play different music simultaneously. It primarily discusses volume control and source switching for the entire system. Therefore, it is unclear if separate music can be played on each speaker.
