Please read this user manual carefully before use the device and keep the manual properly.
Note: Appearance of the device and main interface of system are for reference only. Please refer to the actual product for details. The
company continuously improves product performance, and design specifications are subject to change without notice.
Web.: www.surpass-audio.com
Precautions
1. This host is suitable for AC90-250 power supply, please install and debug under the guidance of professionals.
2. Please read this manual carefully and follow the installation instructions strictly.
3. Please check the binding posts carefully for speaker cables, power cables, and audio input cables.
4. Make sure that all connecting lines are accurate before turning on the computer.
5. Please do not modify, dismantle, repair or upgrade the host by yourself.
6. When not using the main unit for a long time, please turn off the main power switch.
Technical Parameters
Power Supply
Output Power
Frequency Range
Bluetooth Distance
The company continuously improves product performance, and design specifications are subject to change without notice.

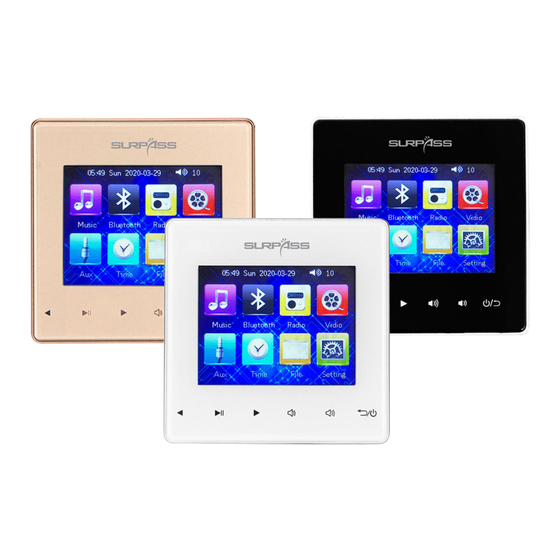

Smart Music Controller
User Manual
SP-PW215F
Email: info@surpass-audio.com
AC 90V-250V/50Hz-60Hz
2x15W
87.5-108MHz
8 to 10 meters
Load
Audio Signal to Noise Ratio
Infrared Remote Control
Distance
Dimension
4-8Ω
≥98dB
8 to 10 meters
86*86*52mm
Advertisement
Table of Contents
Related Manuals for Surpass SP-PW215F
Summary of Contents for Surpass SP-PW215F
- Page 1 Smart Music Controller User Manual SP-PW215F Please read this user manual carefully before use the device and keep the manual properly. Note: Appearance of the device and main interface of system are for reference only. Please refer to the actual product for details. The company continuously improves product performance, and design specifications are subject to change without notice.
- Page 2 Functions Description 1. Music After inserting the TF memory card or U disk, click the music icon and press OK to enter the local music playback mode. On the local music interface, you can select song playback, previous song, next song, playback pause, volume size and other functions through the song list.
- Page 3 External Interface Description 1. SPK R + SPK R-: Two Speakers(each RMS 2x15W/4-8Ω): Speaker wire (200 cores). RVH2X100, RVH2X200. 2. OUT R + OUT L + GND: for an extra amplifier, audio output wire: Audio wire (three core shielded wire: commonly known as microphone wire).
- Page 4 If the above method still fails to troubleshoot, please go to a nearby supplier for assistance, please do not disassemble the device yourself. GUANGZHOU SURPASS AUDIO CO., LIMITED. No.347 Tiannan Street,Tanshan,Hualong Town,Panyu,Guangzhou,China 511434 Web.: www.surpass-audio.com Email: info@surpass-audio.com...
